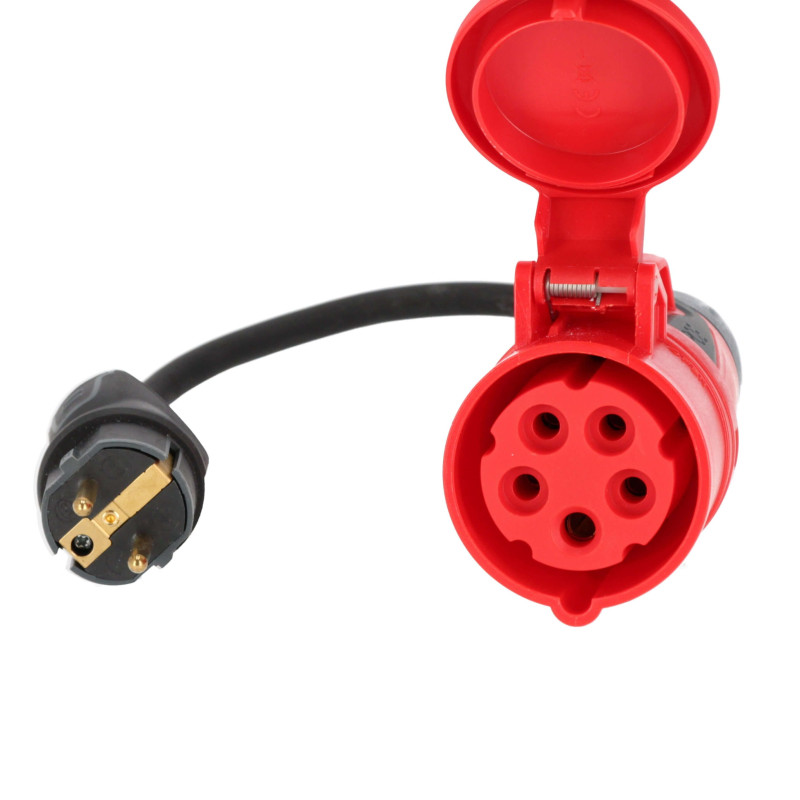

adapter 220V-3F plug

This adapter allows you to connect a device with a three-phase CEE 16 A (5P, 400 V) plug to a single-phase 220 V household socket. This is especially useful when you need to use a three-phase device in an environment where only a single-phase power source is available.

? Technical characteristics
Input (plug): standard 220 V household electrical plug (Schuko type)

Outlet (socket): CEE 16 A, 5-pole (3L+N+E), 400 V, red

Maximum current: 16 A

Cable length: ~30 cm

Cable: rubber, flexible, resistant to mechanical damage

Protection class: IP44 (dust and splash resistant)

Important notes
Phase distribution: Since a household socket only supplies one phase, connecting a three-phase device through this adapter will only operate the device on one phase. This may be suitable for devices that can operate on single phase, but is not suitable for devices that require full three-phase power.

Security: When using this adapter, it is necessary to ensure that the connected device does not exceed the 16 A current limit to avoid overloading and possible damage to the electrical installation.

Areas of use: This adapter can be useful for temporarily connecting three-phase devices to a single-phase power supply, such as at construction sites, events, or other situations where there is no access to three-phase power.
