Electric car charger Reach PEVC8 220V Type2 16A 3.5kW 5.0m

Specification:

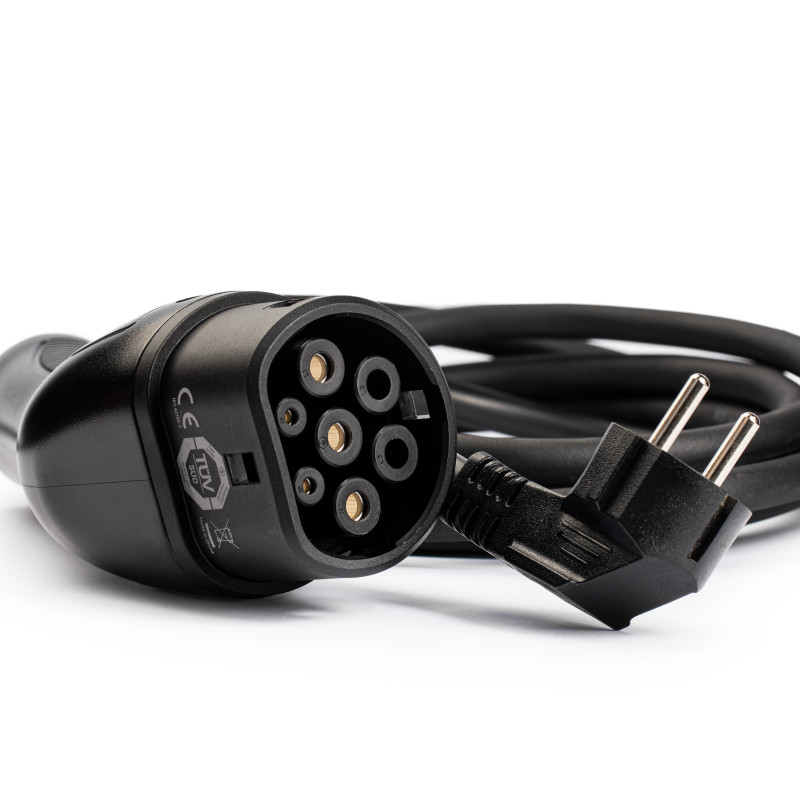

Connector type: Type 2 and Schuko plug
Charging current: 6-16 A (1 phase, adjustable)
Maximum charging power: 3.5 kW
Cable length: 5 m
Protection class: IP65
Operating voltage: AC 200-250V
Block size: 210 x 85 x 50 mm
Protection class: IP65
Operating temperature: -30°C ~ +50°C
Operating humidity: 5% ~ 95% RH
Protection against overheating, overvoltage, overload, voltage fluctuations, short circuit, surges, leakage; grounding.
Warranty: 24 months.

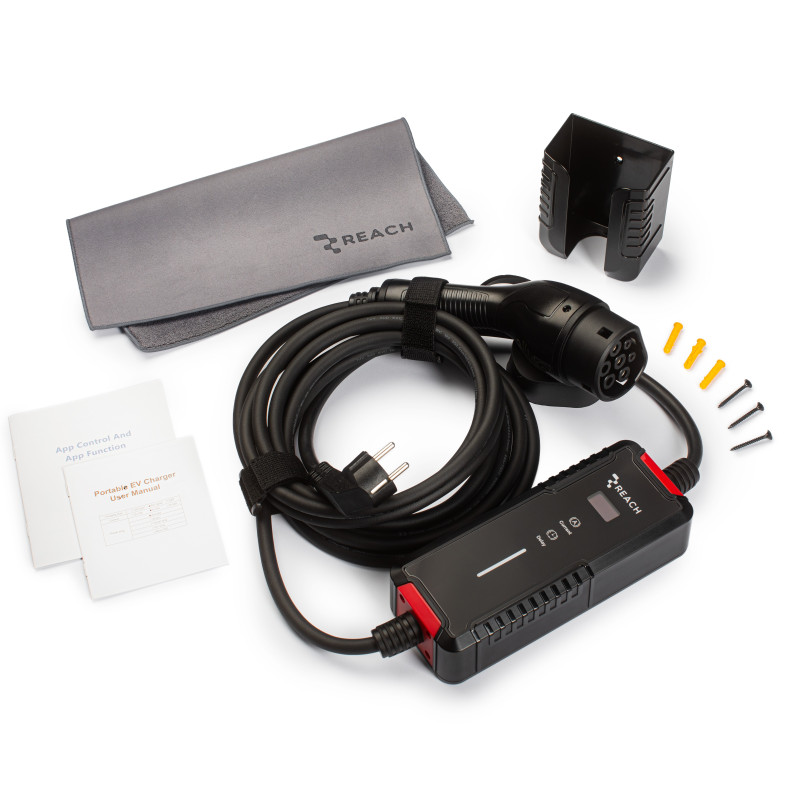

The set includes: charging station with power cord, wall mount with mounting screws, cleaning cloth

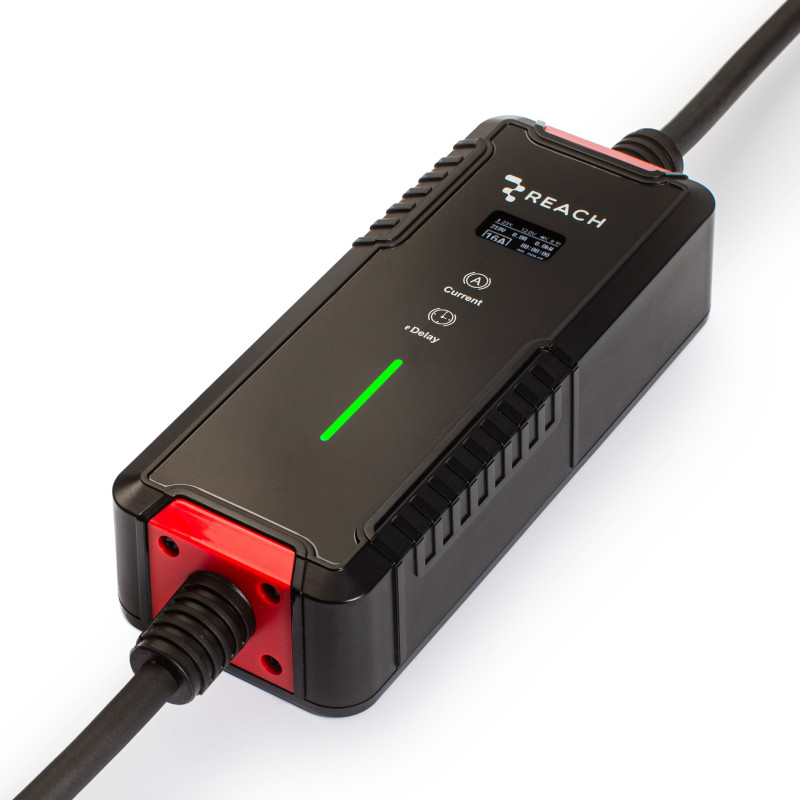

Real-time charging management
The integrated LED display provides detailed information about the charging process in real time, allowing you to monitor and control charging parameters.

The following parameters are displayed:
Maximum current: The maximum current that the charging station can use.
Accumulated energy: Total energy accumulated during the charging session.
Charging time: How long it takes to charge.
Charging unit temperature: The current temperature of the charging unit.
Mains voltage: current mains voltage.
Instantaneous charging power: the actual power supplied to the car at this moment.
Instantaneous charging current: current charging current.
Charging status: waiting, charging, completed.
On-screen control menu options:
Current change: ability to change the charging current from 6 A to 16 A.
Charging start time setting: Ability to set the charging start time up to 12 hours in advance.
Grounding Mode Control: Enable/disable grounding modes depending on usage circumstances.

Control via mobile app
The device has an integrated smart control system, which you can access via a mobile app.
The app allows you to:

• Start charging


• View charging history


• Set charging time


• Adjust charging power
