Phanteks Glacier One 360M25 LCD

Phanteks Glacier One 360M25 LCD. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Maximum air pressure: 2.51 mmH2O. Product colour: Black

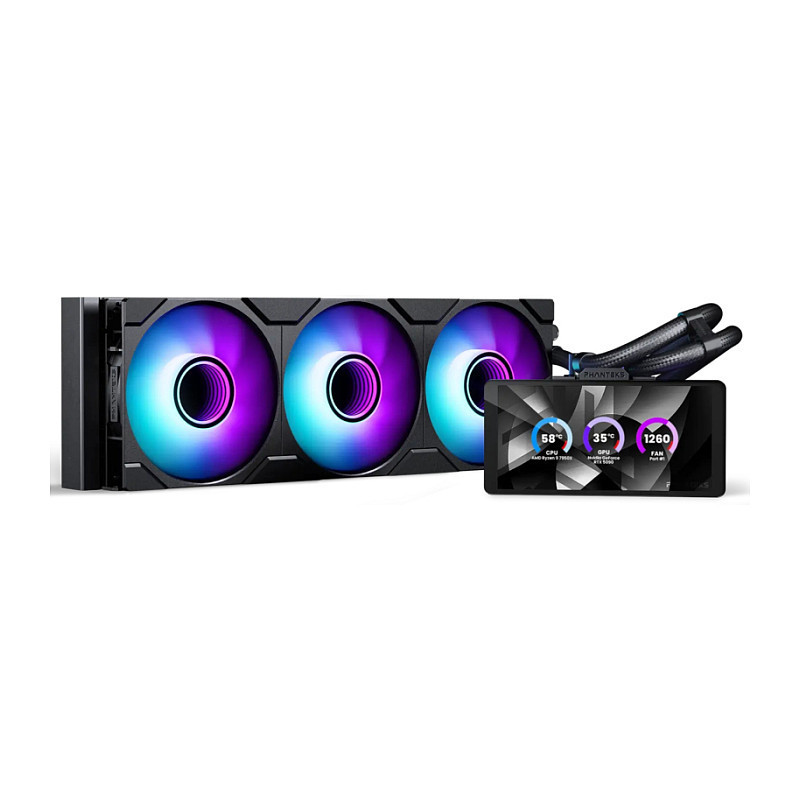

The Phanteks Glacier One 360M25-LCD brings customization to a whole new level with a crisp, super large LCD-IPS display. Built on top of a powerful and reliable liquid CPU cooler and three powerful M25 Gen2 fans, it keeps the most powerful CPUs cool and stays whisper quiet.

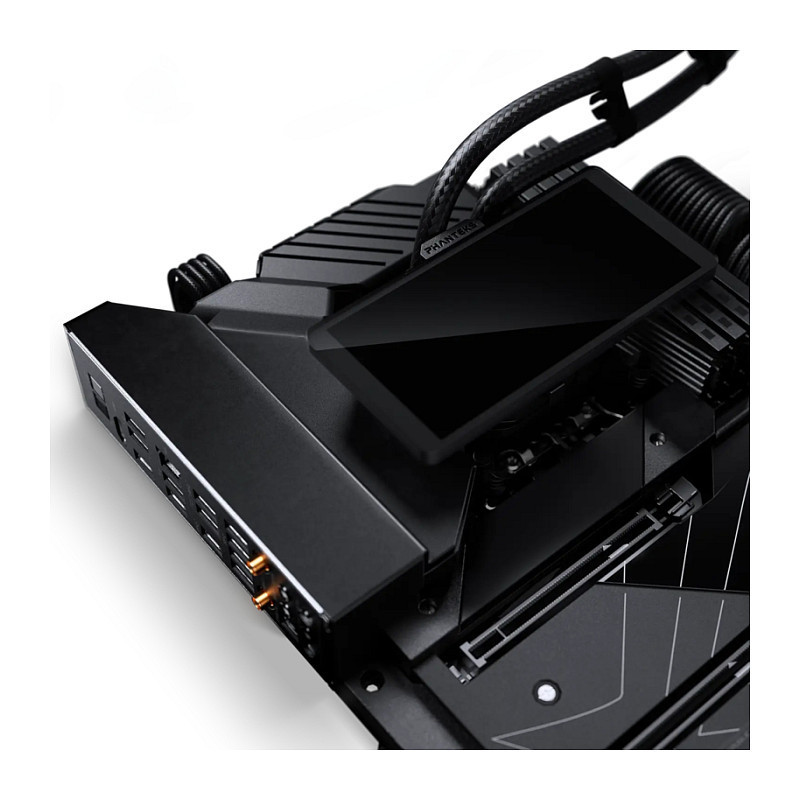

Its large 6″ LCD-IPS display is installed effortlessly and provides ample clearance for mainboard components and even RGB RAM modules. Customization is at the core, with numerous orientations possible and endless possibilities in the Nexlinq App for Windows.

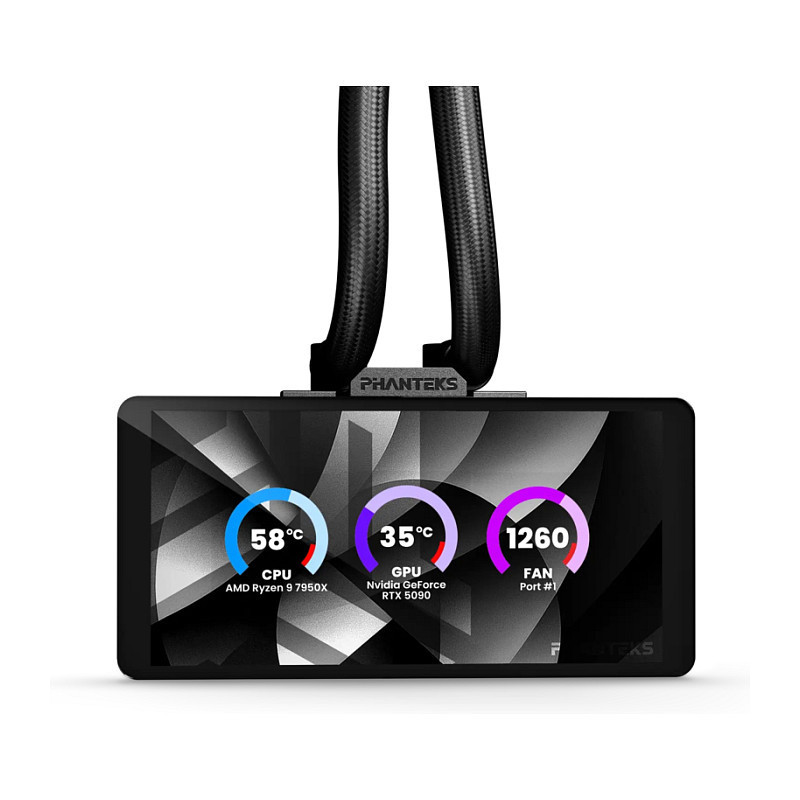

Transform the 6″ display into a personalized command center with real-time system telemetry, thermals, speeds, time, and media—all while running on the hardware itself, saving your precious CPU resources.
Clear and Customizable Display
- Large 6″ LCD-IPS screen for easy viewing.
- Show system stats and more with the NexLinq App for Windows.
- Simple customization to match your setup.
- Adjustable orientation for flexible placement.
Flexible Screen Orientation
- Switch between landscape or portrait to suit your preference.
- Wide overview in landscape for system stats and media.
- Tall, streamlined layout in portrait for a different look.
- Adapts seamlessly to your build and style.
- Fine-tune the screen with seven adjustable viewing positions along the chosen orientation.
Integrated Lighting
- The LINQ6 connector simplifies cable management by combining power for both the fan and D-RGB lighting into a single, easy-to-use connection.
- The hub showcases an infinity mirror design, adding a striking visual illusion of endless depth for an eye-catching aesthetic.
- To operate the D-RGB lighting, it must be connected to a Phanteks controller or an A-RGB equipped mainboard. We strive to make it as easy to use and compatible as possible.

Performance

Suitable location: Processor
Type: All-in-one liquid cooler
Fan diameter: 12 cm
Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H)
Maximum airflow: 72.72 cfm
Maximum air pressure: 2.51 mmH2O
Fan noise level (max): 35.13 dB
Pump noise level: 20 dB
Quantity per pack: 1 pc(s)
Pump motor speed (max): 3100 RPM
Fan speed (min): 350 RPM
Fan speed (max): 2000 RPM
Mean time between failures (MTBF): 150000 h

Design

Product colour: Black
Material: Aluminium, Acrylonitrile butadiene styrene (ABS), Copper, Glass
Number of fans: 3 fan(s)
Illumination LED: Yes
Illumination colour: Multi
Fan connector: Linq6
Display type: IPS
Display size (HxV): 145.2 x 70.5 mm
Display resolution: 1480 x 720 pixels

Power

Pump power consumption: 3.96 W
Pump voltage: 12 V
Pump current: 450 mA

Weight dimensions

Radiator width: 39.7 cm
Radiator depth: 39.7 cm
Radiator height: 2.7 cm
Tube length: 40 cm
Tube diameter: 1.25 cm
Pump width: 7.45 cm
Pump depth: 6.8 cm
Pump height: 5.11 cm
Weight: 1.64 kg
Fan dimensions (W x D x H): 120 x 120 x 30 mm
Package weight: 2.65 kg

Technical details

Warranty period: 5 year(s)

Packaging content

Package type: Box
Screws included: Yes
