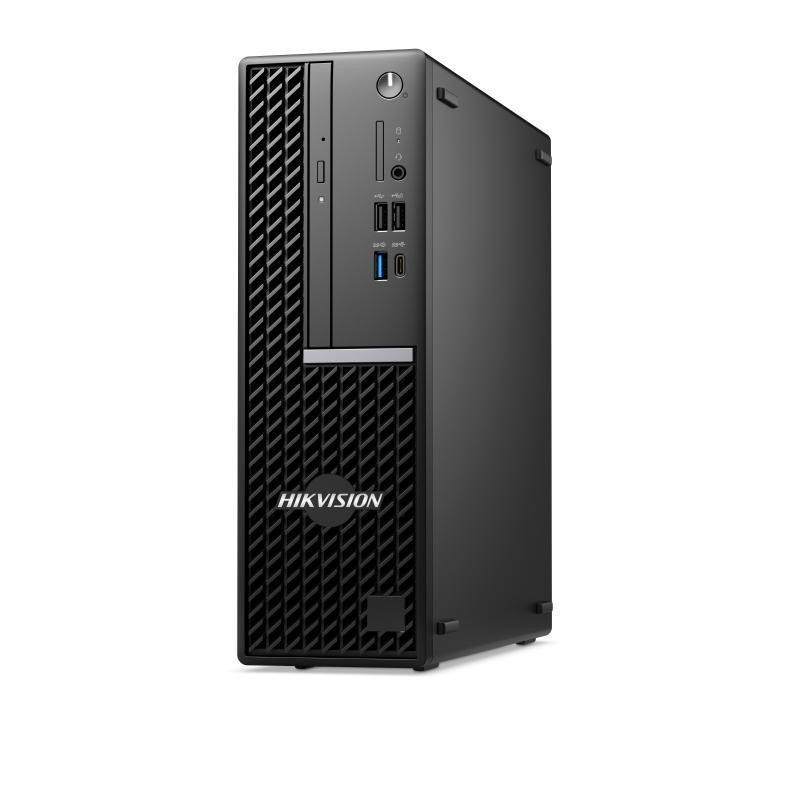

Server Hikvision HikCentral-Workstation / HW5L / 32Ch(C)
Product reference: 26-6942160471686
  • Server
  • Model: Hik-vision HikCentral-Workstation/HW5L/32Ch(C)
  • Number of channels: 32 channels
  • Number of approaches: 4 approaches
  • Processor: i5-12500
  • Memory: 8GB×2
  • Disk capacity: 1TB SSD×1
  • Network interface: 1GbE×1
  • Power: 300W
  • Case: XE4
  • Operating system: Windows 10 loT Enterprise (support until 2032)
  • Added licenses: 32 cameras and 4 doors Hikcentral Profesional
Server Hikvision HikCentral-Workstation / HW5L / 32Ch(C)

Server Hikvision HikCentral-Workstation / HW5L / 32Ch(C)

Product reference: 26-6942160471686
  • Server
  • Model: Hik-vision HikCentral-Workstation/HW5L/32Ch(C)
  • Number of channels: 32 channels
  • Number of approaches: 4 approaches
  • Processor: i5-12500
  • Memory: 8GB×2
  • Disk capacity: 1TB SSD×1
  • Network interface: 1GbE×1
  • Power: 300W
  • Case: XE4
  • Operating system: Windows 10 loT Enterprise (support until 2032)
  • Added licenses: 32 cameras and 4 doors Hikcentral Profesional
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
1 55037 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Facilities and Resources
  • Video Control 32ch by default, can be expanded into 128ch (Including ANPR Cameras and Cameras with Face Capture Function)
  • Access Control 4ch by default, can be expanded into 16ch (Including Doors and Outdoor Station)
  • Domestic Station Not included, can be expanded into 16
  • ANPR Cameras Not included, can be expanded into 16ch
  • Lanes of Entrance Exit Not included, can be expanded into 16
  • Cameras with Face Recognition Function Not included, can be expanded into 16ch
  • Alarm Panel Not included, can be expanded into 16
  • Smart Walls Not included
  • Attendance Not included, can be expanded by extra license
  • Operation
  • Storing Events or Alarms without Photos 10/s
  • Events or Alarms Sent to Clients 10/s，10 Client/s (Including Control Clients and Mobile Clients）
  • Photo Storage 10/s (Including event/alarm pictures, face pictures, and vehicle pictures)
  • Vehicle Flow Rate in Each Lane 1 Vehicle/s
  • Data Retention Period Stored for 6 Months
  • Decoding Operation
  • 4CIF (704*576)/H.264/1024 kbps * 30 fps

    Maximum Hardware Decoding Channels：62

    Maximum Software Decoding Channels：42
  • 4CIF (704*576)/H.265/512 kbps * 30 fps

    Maximum Hardware Decoding Channels：62

    Maximum Software Decoding Channels：42
  • 720P (1280*720)/H.264/2048 kbps * 30 fps

    Maximum Hardware Decoding Channels：42

    Maximum Software Decoding Channels：24
  • 720P (1280*720)/H.265/1024 kbps * 30 fps

    Maximum Hardware Decoding Channels：42

    Maximum Software Decoding Channels：24
  • 1080P (1920 × 1080)/H.264/4096 kbps * 30 fps

    Maximum Hardware Decoding Channels：32

    Maximum Software Decoding Channels：16
  • 1080P (1920 × 1080)/H.265/2048 kbps * 30 fps

    Maximum Hardware Decoding Channels：32

    Maximum Software Decoding Channels：16
  • 4 MP (2560 × 1440)/H.264/8192 kbps * 30 fps

    Maximum Hardware Decoding Channels：24

    Maximum Software Decoding Channels：10
  • 4 MP (2560 × 1440)/H.265/4096 kbps * 30 fps

    Maximum Hardware Decoding Channels：24

    Maximum Software Decoding Channels：10
  • 8 MP (3840 × 2160)/H.264/16384 kbps * 30 fps

    Maximum Hardware Decoding Channels：12

    Maximum Software Decoding Channels：5
  • 8 MP (3840 × 2160)/H.265/8192 kbps * 30 fps

    Maximum Hardware Decoding Channels：12

    Maximum Software Decoding Channels：5
  • 6 MP (2560 × 2560) /H.264/12288 kbps * 30 fps

    Maximum Hardware Decoding Channels：18

    Maximum Software Decoding Channels: 8
  • 6 MP (2560 × 2560) / H.265 / 6144 kbps * 30 fps

    Maximum Hardware Decoding Channels：18

    Maximum Software Decoding Channels: 8
  • 12 MP (4000 × 4000)/H.264/16384 kbps * 20 fps

    Maximum Hardware Decoding Channels: 10

    Maximum Software Decoding Channels：4
  • 12 MP (4000 × 4000)/H.265/8192 kbps * 20 fps

    Maximum Hardware Decoding Channels: 10

    Maximum Software Decoding Channels：4
  • Hardware Specifications
  • CPU i5-12500， 3.00 GHz, 18 MB Cache， 6 Cores, 12 Threads
  • Memory

    Standard Config：2 × 8GB UDIMM，3200MT/s

    Scalability: 4 × 32GB UDIMM
  • Hard Drives

    Standard Configuration: 1 × 1TB M.2 SSD

    Scalability: 1 × 4TB 3.5inch SATA HDD
  • Supported Operating Systems Win10 multilingual version pre-installed
  • Graphics Card

    Standard Config：UHD Graphics 770（integrated in CPU）

    Scalability：1 × Semi-high Independent graphics card（Please contact technical support for more info.）
  • PCIe Slots 1*PCIe 4.0 x16 Slot 1*PCIe 4.0 x4 Slot
  • Ports
  • Type-C 1
  • USB 3.0 1（Front）+3（Rear）
  • USB 2.0 2（Front）+2（Rear）
  • Universal Audio Port 1
  • Ethernet Port 1 x LAN 10/100/1000
  • VGA /（HDMI port can be used as VGA port）
  • HDMI 1
  • DP 3（DP port can be used as HDMI port）
  • Home
  • Weight without packaging 5.63 kg (12.42 lb)
  • Weight with packaging 6.72 kg (14.81 lb)
  • Size 92.60 mm × 290.00 mm × 292.80 mm (3.65'' × 11.42'' × 11.53'')
  • Packaging Dimensions (W × H × D) 394.00 mm × 264.00 mm × 487.00 mm (15.51'' × 10.39'' × 19.17'')
  • Working conditions (temperature) 5 °C to 45 °C (41 °F to 113 °F)
  • Storage conditions temperature -40 °C to 70 °C (-40 °F to 158 °F)
  • Operating conditions (humidity) 20% to 80% (no condensation)
  • Storage conditions humidity 5% to 95% (no condensation)
  • Power supply 300 W PSU, 92% Energy efficiency, 80 Plus Platinum
  • Form Factor Tower SFF
