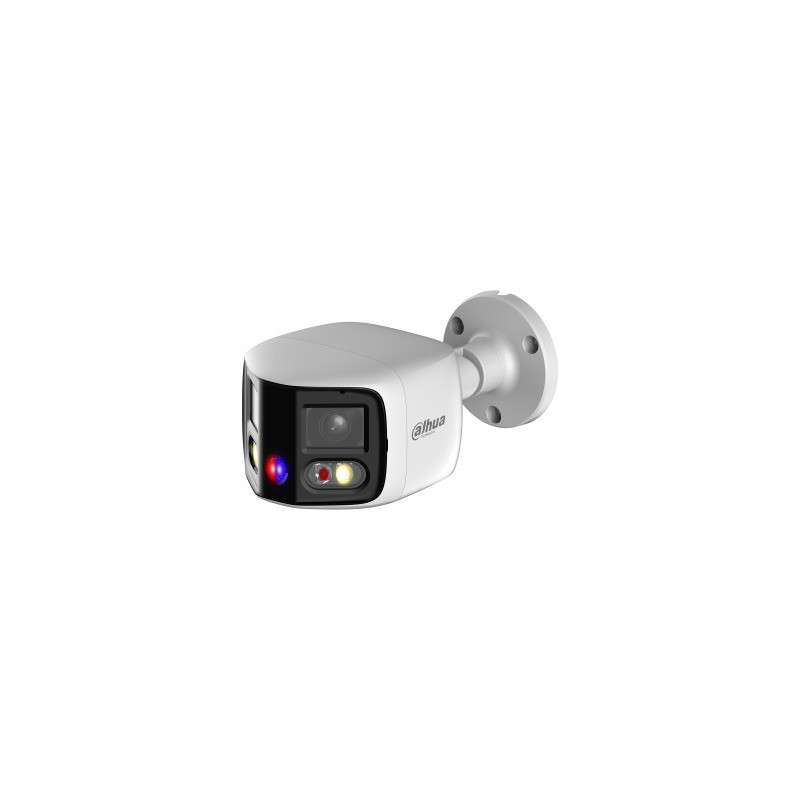

Panoramic camera Dahua IPC-PFW3849S-A180-E2-AS-PV-280B F2.8 (2×4 MP, 180°, IR+LED 25 m, IP67)
Product reference: 26-6923172594327
  • Type: Panoramic IP camera
  • Brand: Dahua
  • Model: IPC-PFW3849S-A180-E2-AS-PV-280B
  • Technology: Duo Splicing, TiOC, Full-Color, WizSense, SMD4.0
  • Lens: 2.8 mm (180°), F2.8
  • Resolution: 2×4 MP
  • Built-in microphone
  • Illumination: IR + LED up to 25 m
  • Image functions: WDR, 3D NR, HLC, BLC
  • Protection class: IP67
  • Memory: SD up to 256 GB
  • Power supply: PoE
Panoramic camera Dahua IPC-PFW3849S-A180-E2-AS-PV-280B F2.8 (2×4 MP, 180°, IR+LED 25 m, IP67)

Panoramic camera Dahua IPC-PFW3849S-A180-E2-AS-PV-280B F2.8 (2×4 MP, 180°, IR+LED 25 m, IP67)

Product reference: 26-6923172594327
  • Type: Panoramic IP camera
  • Brand: Dahua
  • Model: IPC-PFW3849S-A180-E2-AS-PV-280B
  • Technology: Duo Splicing, TiOC, Full-Color, WizSense, SMD4.0
  • Lens: 2.8 mm (180°), F2.8
  • Resolution: 2×4 MP
  • Built-in microphone
  • Illumination: IR + LED up to 25 m
  • Image functions: WDR, 3D NR, HLC, BLC
  • Protection class: IP67
  • Memory: SD up to 256 GB
  • Power supply: PoE
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
384,21 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Model DH-IPC-PFW3849S-A180-AS-PV
  • Type 2x4MP TiOC Duo Splicing Fixed-focal Bullet WizSense Network Camera
  • Image sensor Dual 1/2.7" CMOS
  • Highest resolution 4096 × 1860 (8MP)
  • RAM/ROM 1GB / 128MB
  • Scanning system Progressive
  • Electronic shutter speed Auto/Manual, 1/3 s-1/100,000 s
  • Minimal lighting 0.005 lux@F1.4 (Color), 0.0005 lux@F1.4 (B/W), 0 lux (with illuminator on)
  • Signal-to-noise ratio > 56 dB
  • Lighting distance IR: 25 m; Warm light: 20 m
  • Illuminator Count / Control 2 IR LEDs, 2 Warm lights / Auto, Manual
  • Lens type Fixed focal
  • Lens mount M12
  • Focal length 2.8 mm
  • Maximum aperture F1.4
  • Field of view Horizontal: 180°, Vertical: 86°
  • Close focus distance 0.8 m
  • DORI Distance (2.8 mm) Detect: 50.6 m, Observe: 20.2 m, Recognize: 10.1 m, Identify: 5.1 m
  • Smart Dual Light Yes (IR on by default; Warm light activates on motion; reduces light pollution)
  • EPTZ Function Yes - Enlarge and track targets
  • WDR 120 dB
  • BLC / HLC / SSA Yes / Yes / Yes
  • White balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
  • Gain control Car
  • Noise reduction 3D NO
  • Motion detection ON/OFF (4 areas)
  • ROI / Privacy Masking 4 areas / 4 areas
  • Fog removal Yes
  • Image compression H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
  • Smart Codec / AI Codec Smart H.265+, Smart H.264+ / AI H.265, AI H.264
  • Video frame rate Main: 4096×1860@1-20 fps, Sub: 1200×530@1-20 fps, Third: 1920×860@1-20 fps
  • Streams 3 streams
  • Supported Resolutions 4096×1860, 3632×1632, 3040×1368, 1200×530, 1920×860, 960×432
  • Bit Rate Control / Rate CBR/VBR / H.264 H.265: 6kbps-16384kbps
  • IVS (Perimeter Security) Tripwire, Intrusion with human/vehicle classification
  • SMD Version SMD 4.0 (Smart Motion Detection with object filtering)
  • Quick Pick Yes (with AI NVR: fast human/vehicle selection)
  • Smart search Yes (with Smart NVR)
  • Audio Input / Output Built-in dual Mic / Built-in speaker, 1 RCA in, 1 RCA out
  • Audio compression G.711a, G.711Mu, PCM, G.726, G.723
  • Alarm input/output 1 input (wet contact, 3 V-5 VDC), 1 output (300 mA 12 VDC)
  • Danger events Motion, tripwire, intrusion, audio, tamper, SD issues, voltage, network, SMD, etc.
  • Network interface 1× RJ-45 (10/100 Base-T)
  • Protocols IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, SNMP, Multicast, P2P, etc.
  • Cybersecurity Video/config encryption, X.509, HTTPS, WSSE, Trusted boot/execution/upgrade, Account lockout, IP/MAC filtering
  • Compatibility ONVIF (Profiles S/G/T), CGI
  • User access Up to 20 users (64 Mbps total bandwidth)
  • Memory FTP, SFTP, NAS, MicroSD up to 256 GB
  • Browser Compatibility IE (v8+), Chrome, Firefox
  • Management software Smart PSS Lite, DSS, DMSS
  • Mobile app iOS, Android
  • Power source 12 VDC (±30%) or PoE (802.3af)
  • Energy consumption Basic: 3.4 W (12 VDC), 3.8 W (PoE); Max: 9 W (12 VDC), 10.3 W (PoE) (full features enabled)
  • Operating temperature -40 °C to +60 °C (-40 °F to +140 °F)
  • Working humidity ≤95%RH
  • Storage temperature -40°C to +60°C
  • Protection against dust and moisture IP67
  • Housing Metal
  • Dimensions 183.1 × 99.0 × 78.0 mm (7.20" × 3.90" × 3.07")
  • Net / Gross Weight 695g (1.53lb) / 870g (1.92lb)
  • Certificates CE-LVD (EN62368-1), CE-EMC (2014/30/EU)
  • Optional accessories PFA130-E (Junction Box), PFA157 (Pole Mount), PFM900-E (Mount Tester), TF-P100 (MicroSD), PFM321D (12VDC 1A Adapter)

Manufacturer codeDAHIPCPFW3849SA180E2ASPV
ManufacturerDahua
Weight1.5 kg
