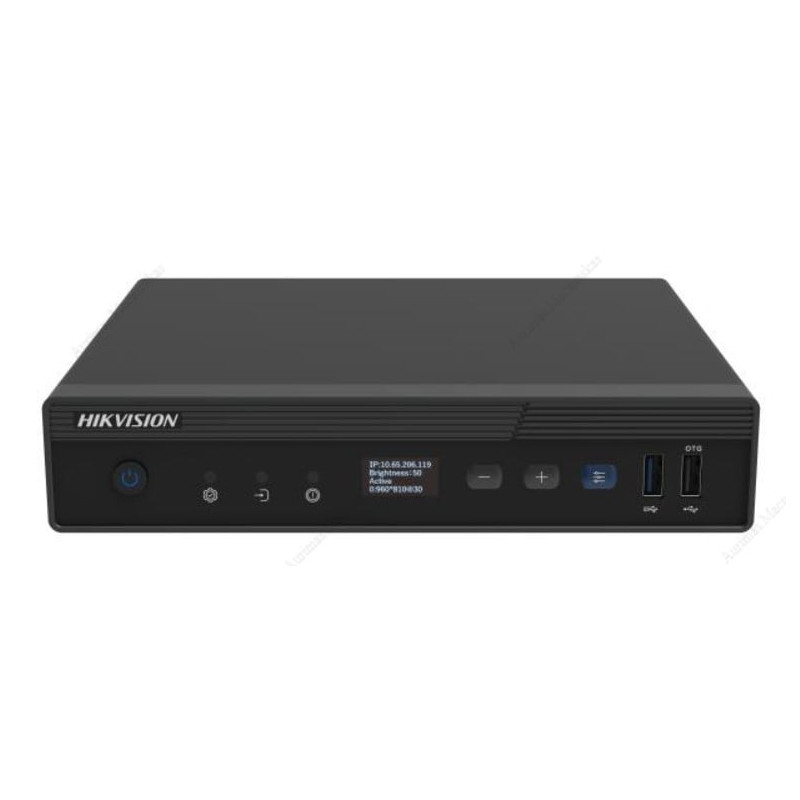

LED Controller Hikvision DS-DT60P-02HI04NO
Product reference:
26-6942160491660
- Type: LED controller
- Model: Hikvision DS-DT60P-02HI04NO
- Number of ports: 4
- Frequency: 25Hz - 60Hz
- Resolution: 640×480 - 1920×1200
- Camera: 16 MP
- Audio/Video connections: 2 x HDMI 1.4
- Internal memory: 32 GB
LED Controller Hikvision DS-DT60P-02HI04NO
Product reference:
26-6942160491660
- Type: LED controller
- Model: Hikvision DS-DT60P-02HI04NO
- Number of ports: 4
- Frequency: 25Hz - 60Hz
- Resolution: 640×480 - 1920×1200
- Camera: 16 MP
- Audio/Video connections: 2 x HDMI 1.4
- Internal memory: 32 GB
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Processing performance
- Brightness control 1 to 100 tunable (level-by-level white balance)
- Frame rate 25 Hz to 60 Hz
- Grayscale 256
- Color depth 16 MP
- Processing depth 8-bit
- Image zoom Supported
- Product model
- Product model DS-DT60P-02HI04NO
- Housing
- Housing height 1 U
- Case width Half-width
- Product type
- Product type LED controller
- LED Controller Power
- Average costs ≤16.5W
- Number of power interfaces 1
- Power supply 100 to 240 VAC, 50/60 Hz
- Video Wall
- Open windows 3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
- Layers through the device 7
- Scenes 10
- Background images 1
- Background resolution Min.: 640 × 480, Max.: 1920 × 1200
- Background format JPG/JPEG
- Subtitles 1
- Subtitle width 32760
- Subtitle font Supports Xiaomi font and custom font
- Home
- Operating temperature -10°C to 50°C
- Storage conditions humidity 10% to 90%
- Moisture resistance 10% to 90%
- Storage conditions temperature -10°C to 50°C
- Package size (W × H × D) 353 mm × 89 mm × 237 mm (13.90 inch × 3.50 inch × 9.33 inch)
- Weight without packaging 1.04 kg (2.29 lb.)
- Weight with packaging 1.58 kg (3.48 lb.)
- Size 210 mm × 42 mm × 180 mm (8.26 inch × 1.65 inch × 7.08 inch)
- In the package 1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × bar antenna, 1× RF remote control
- Audio input
- Audio input interfaces 3
- Audio input interface type 2 HDMI1.4 + 1 channel of embedded Android
- Video input
- Video input interfaces 3
- Video input interface type 2 HDMI 1.4 + 1 embedded Android
- Maximum video input resolution HDMI1.4: 1080p
- Video Input Resolution
HDMI 1.4 port
Max. resolution: 1920 × 1200@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz
Max. width: 320 to 3840, alignment: 2 alignment
Max. height: 180 to 3840, alignment: 1 alignment
Supports HDCP 1.4
Interlacing signal input is not supported.
- Video input processing function
Processing depth: 8 bit
Sampling format:
RGB: 444
YUV: 444
YUV: 422
- Video output
- Maximum video output resolution 2.6 Million
- Video output resolution RJ-45
- Video live view output interfaces 1
- Video Live View Output Interface Type HDMI 1.4
- Video output to LED loading capacity
Single port loading: 650000
Width 320-32760; alignment: 2 alignment
Height 64-5120; alignment: 1 alignment
- Video Live View Output Resolution 720p@60 Hz
- LED charging interfaces 4
- Audio output
- Audio output interfaces 1
- Audio output interface type 3.5 mm audio output
- System
- System Android 12
- Memory capacity 4GB
- Storage capacity 32GB
- CPU 4-core 64-bit ARM cortex-A55 2.0 GHz
- Wireless connection
- WIFI 2.4 GHz
- Bluetooth Bluetooth 4.0
- Antenna 1 × bar antenna
- Remote control Supports IR remote control
- Front panel
- Screen 128 × 64, OLED screen
- USB ports 1 channel of USB 2.0 + 1 channel of USB 3.0
- Button
+: increase brightness
-: decrease brightness
Source: change signal source
- Indicator
Active: The device is running.
Source: The signal source is accessed.
Error: The device operation exception occurs.
- Power switch
On: The device is started and running.
Off: The device is not powered on or is not started.
- Control interface
- Management network port
2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45)
Connects to the external network and supports multi-device network cascade management.
- IR input
1 × 3.5 mm jack
Supports the access of IR remote control.
- Serial interface
1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact)
Baud rate: 115200, data bit: 8
- Power switch Button switch
| Manufacturer | Hikvision |
| Manufacturer code | DSDT60P02HI04NO |
| Weight | 1.2 kg |
