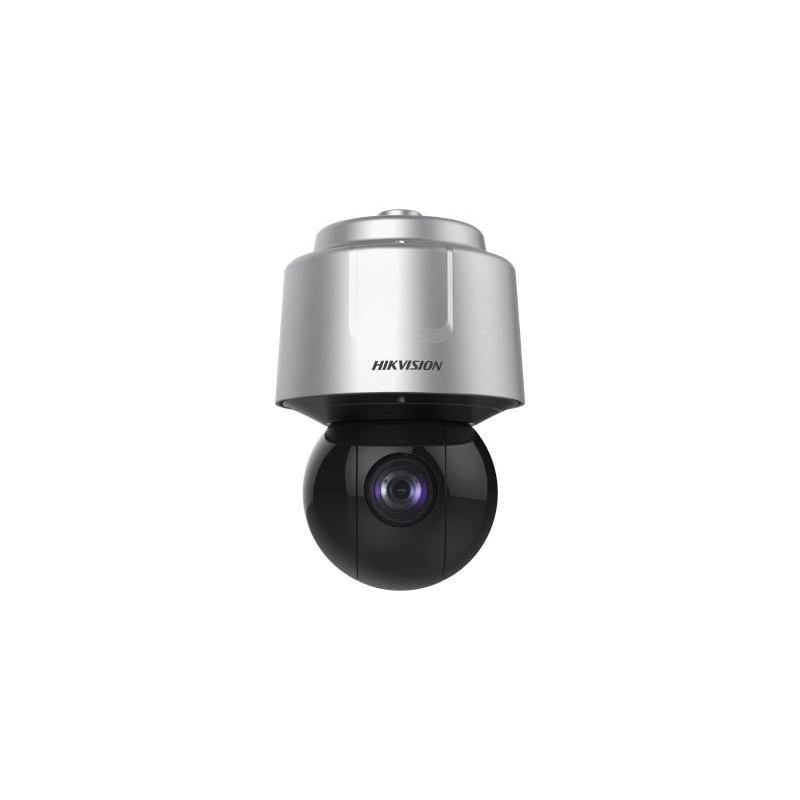

IP camera Hikvision DS-2DF6A836X-AEL(T5)

Product reference: 26-6931847134549

You have 3 products in compare list, please remove someone and try again

Add to compare

2 26306 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Camera
Sensor 1/1.8＂ progressive scan CMOS
Min. lighting color: 0.005Lux @ (F1.2，AGC ON),B/W: 0.0005Lux @ (F1.2，AGC ON)
Shutter speed 1/1 s to 1/30,000 s
Slow shutter yes
Focusing auto;semi-auto;manual
Day Night ICR
Day/Night mode day, night, auto, scheduled-switch
BLC yes
WDR 140dB WDR
HLC yes
3D DNA yes
Fog removal yes
EIS Yes. Built-in gyroscope to improve EIS performance.
Regional exposure yes
Regional focus yes
White balance auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
Digital zoom 16x
Optical zoom 36x
Privacy mask up to 24 masks; polygon region; mosaic mask; mask color configurable
DOROUS
Detect (25px/m): 4300 m
Observe (63px/m): 1706.3 m
Recognize (125px/m): 860 m
Identify (250px/m): 430 m
SNR ≥52dB
Main functions mirror, password protection, watermark, IP address filter
Optical fog removal yes

Lens
FOV 6.0 mm to 216 mm, 36× Optical
Zoom speed approx. 4.5 s
FOV
Horizontal field of view: 56.6° to 1.7° (wide-tele),
Vertical field of view: 33.7° to 0.9° (wide-tele),
Diagonal field of view: 63.4° to 1.9° (wide-tele)
Aperture F1.2

PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -20° to 90° (auto flip)
Pan speed pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
Tilt speed tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
Proportional zoom yes
Pre-saved settings 300
Patrolling 8 patrols, up to 32 presets for each patrol
Scanning saved modes 4 pattern scans, record time over 10 minutes for each scan
Power-off memory yes
Park Action preset; pattern scan; patrol scan; auto scan; tilt scan; random scan; frame scan; panorama scan
3D position yes
PTZ status display yes
Stopping saved settings yes
Task schedule preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Max resolution 3840 × 2160
Main stream
50 Hz: 25 fps (3840×2160, 2560×1440, 1920×1080, 1280×960, 1280×720)
60 Hz: 24 fps (3840×2160, 2560×1440, 1920×1080, 1280×960, 1280×720)
Secondary flow
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 24fps (704x480, 640x480, 352x240)
Third stream
50 Hz: 25 fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288)
60 Hz: 24 fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240)
Image compression H.265;H.264;MJPEG
Video bit rate 32 Kbps to 16384 Kbps
H.264 type baseline profile; main profile; high profile
H.265 type main profile
H.264+ yes
H.265+ yes
SVC yes
ROI fixed region

Internet
Internal memory NAS (NFS, SMB/CIFS); ANR
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
API ISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);Open-ended API;Third-party management platform;ISUP;Ehome
Live video viewing Up to 20 channels
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Smooth flow yes
Security solutions User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Customer Hikcentral; iVMS-4200; Hik-Connect
Browser IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Interface
Communication interface RJ45, self-adaptive 10M/100M Ethernet port
Storage location Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Alarm input 7 alarm inputs
Alarm output 2 alarm outputs
Audio input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio output 1 audio output, line level, impedance: 600 Ω
Video output NTSC;PAL;1.0V[pp]/75Ω;BNC connector
RS-485 HIKVISION, Pelco-P, Pelco-D, self-adaptive

Home
System parameters 24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
Working conditions Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
Size 231.1 mm × 355.6 mm ( 9.10" × 14")
Weight Approx. 6 kg (13.23 lb.)
Web browser language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approvals
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (CN 32: 2015, CN 35: 2015)
Security
UL (UL 62368-1)
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (SANS IEC60950-1)
Environmental protection
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection IP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5

Smart features
Perimeter security
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Facial recognition Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Road traffic functions Support vehicle detection (license plate number, vehicle model, and vehicle color recognition)
Main functions alarm input and output; motion detection; video tampering alarm; exception
Smart features object removal detection; unattended baggage detection; vandal-proof alarm; parking detection; region entrance detection; region exiting detection; line crossing detection; intrusion detection; audio exception detection
Smart tracking manual tracking; auto-tracking; event tracking
Smart recording ANR;Dual-VCA
Alarm interface Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Weight

7.6 kg
