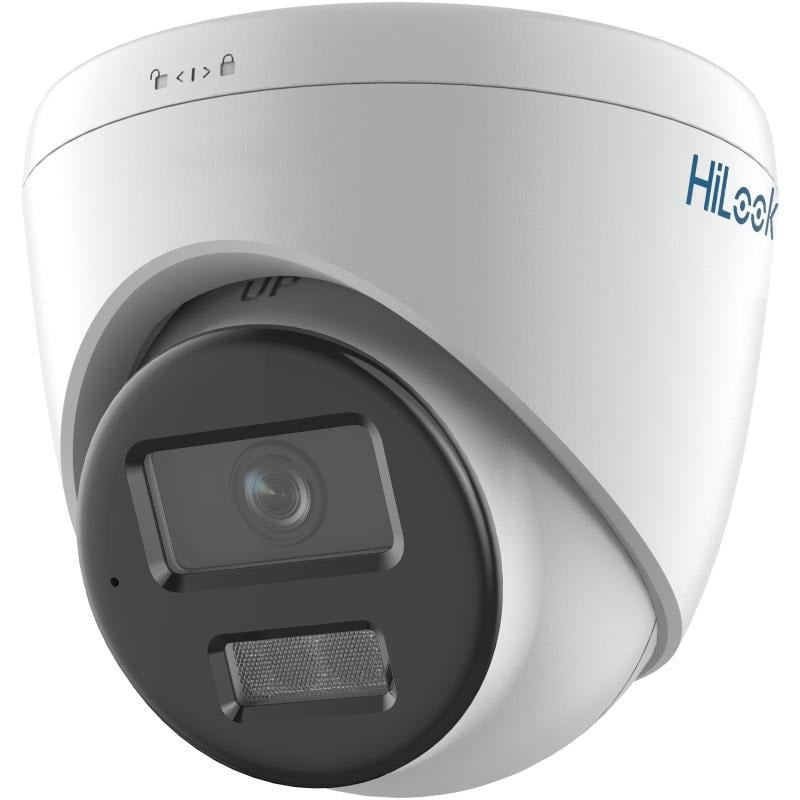

HiLook turret camera IPC-T249HAA-LUF / SL F2.8 (4 MP, 2.8mm, 30m IR / LED, ColorVu)

Product reference: 26-6936422191573

Resolution: 4MP
Features: ColorVu 3.0, HikAI-ISP, Motion Detection 3.0 (people and vehicle detection)
Built-in microphone
Integrated microSD slot: up to 512 GB
Protection class: IP67

HiLook turret camera IPC-T249HAA-LUF / SL F2.8 (4 MP, 2.8mm, 30m IR / LED, ColorVu)

Product reference: 26-6936422191573

Resolution: 4MP
Features: ColorVu 3.0, HikAI-ISP, Motion Detection 3.0 (people and vehicle detection)
Built-in microphone
Integrated microSD slot: up to 512 GB
Protection class: IP67

You have 3 products in compare list, please remove someone and try again

Add to compare

113,91 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Approvals
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7
Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
Security CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017

Sound
Audio bit rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps(MP3)
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Audio sampling frequency 8kHz/16kHz
Audio type Mono sound
Removing extraneous sounds Yes

DOROUS
DOROUS 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Features
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Interface Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture

General information
Dimensions Ø112mm × 82mm (Ø4.4" × 3.2")
Flashing Light -LU：NA-LUF/SL：White Light-LUF/SRB：Red and Blue Light
Main functions Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Language English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
Material Cover: Plastic, main body: Metal
Package size 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
Power supply -LU: 12 VDC ± 25%, 0.52 A, max. 6.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W, -LUF/S(L)(RB): 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.8 W
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Weight -LU: Approx. 350 g (0.8 lb.)-LUF/S(L)(RB): 400 g (0.9 lb.)
Weight with packaging -LU: Approx. 530 g (1.2 lb.) -LUF/S(L)(RB): 595 g (1.3 lb.)

Day/night switch Day, Night, Auto, Schedule
Photo beautification BLC,HLC,3D DNA
Image settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy mask 4 programmable rectangular privacy masks
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB

Interface
Built-in microphone Yes,1 built-in microphone
Built-in speaker -LU: NA-LUF/S(L)(RB): Max. power consumption: 2 W, max. sound pressure level: 10 cm: 101 dB
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal memory -LU：NA-LUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reboot button -LU:NA -LUF/S(L)(RB):YES

Lens
Aperture F1.0
Depth of field 2.8 mm: 1.7 m to ∞4 mm: 1.6 m to ∞
Focal Length FOV 2.8 mm, horizontal FOV 101.5°, vertical FOV 54.6°, diagonal FOV 122.1°4 mm, horizontal FOV 84.1°, vertical FOV 45.6°, diagonal FOV 99.1°
Iris type Fixed
Lens mount M12
Lens type Fixed focal lens, 2.8 and 4 mm optional

Network
API ONVIF (Profile S, Profile G), ISAPI, SDK
Customer iVMS-4200, HiLookVision
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
Safety Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Live video viewing Up to 6 channels
User/port Up to 32 users3 user levels: administrator, operator, and user
Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Bit rate control CBR,VBR
H.264 type Baseline Profile, Main Profile, High Profile
H.265 type Main Profile
Main stream 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Secondary flow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video bit rate 32 Kbps to 16 Mbps
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
