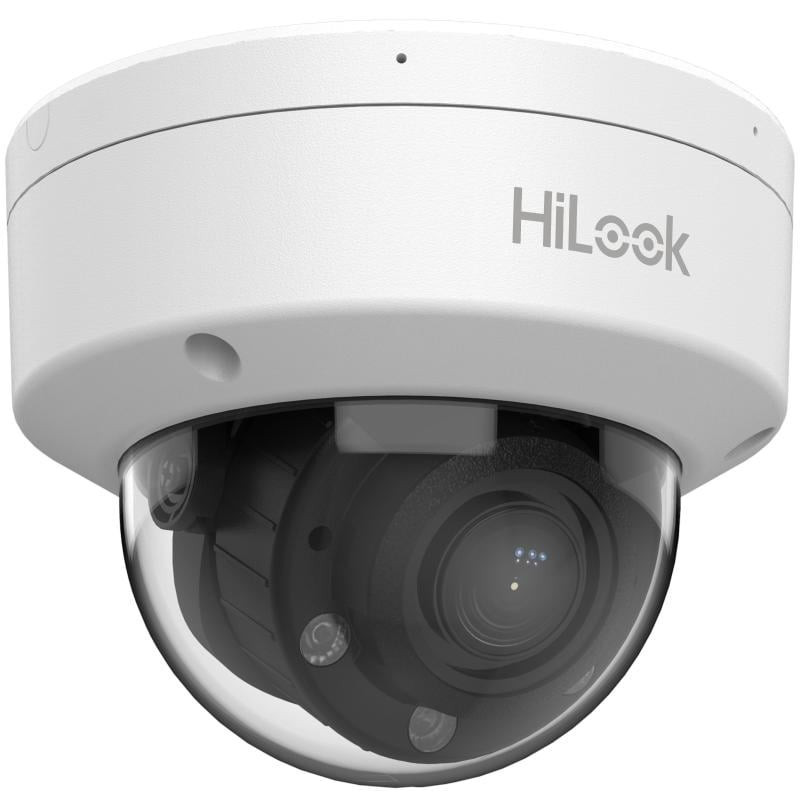

HiLook dome IPC-D640HA-LZU F2.8-12 (white, 4 MP, 30 m IR, 30 m LED, Hybrid Light)
Product reference:
26-6942160444499
- MP (MegaPixel): 4 MP
- Lens: 2.8 - 12 mm, horizontal FOV: 96° to 29°
- Technology: Hybrid Light
- Built-in microphone: Yes
- Night illumination: 30 m. IR; 30 m. LED
- microSD slot: Yes, 512GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67, IK08
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1272ZJ-120
- Outdoor/Indoor: Outdoor
HiLook dome IPC-D640HA-LZU F2.8-12 (white, 4 MP, 30 m IR, 30 m LED, Hybrid Light)
Product reference:
26-6942160444499
- MP (MegaPixel): 4 MP
- Lens: 2.8 - 12 mm, horizontal FOV: 96° to 29°
- Technology: Hybrid Light
- Built-in microphone: Yes
- Night illumination: 30 m. IR; 30 m. LED
- microSD slot: Yes, 512GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67, IK08
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1272ZJ-120
- Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Camera
- Sensor 1/3" Progressive Scan CMOS
- Max resolution 2560 × 1440
- Min. lighting Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter speed 1/3 s to 1/100,000 s
- Day Night IR cut filter
- Changing the angle Pan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355°
- Lens
- Lens type Varifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length FOV 2.8 to 12 mm, horizontal FOV 96.7° to 29.7°, vertical FOV 51.7° to 16.7°, diagonal FOV 114.3° to 34°
- Lens installation Ø14
- Iris type Fixed
- Aperture F1.6
- DOROUS
- DOROUS D: 64.0 to 198.0 m, O: 25.4 to 78.6 m, R: 12.8 to 39.6 m, I: 6.4 to 19.8 m
- Lighting
- Additional lighting type IR,White Light
- Additional lighting range Up to 30 m
- Smart additional lighting Yes
- IR wavelength 850 nm
- Image
- Main stream
50Hz:
20fps (2560×1440)
25 fps (1920×1080, 1280×720)
60Hz:
20fps (2560×1440)
24 fps (1920×1080, 1280×720)
- Secondary flow
50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 24fps (1280×720, 640×480, 640×360)
- Image compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video bit rate 32 Kbps to 16 Mbps
- H.264 type Baseline Profile, Main Profile, High Profile
- H.265 type Main Profile
- Bit rate control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region for main stream
- Sound
- Audio type Mono sound
- Audio compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio sampling frequency 8kHz/16kHz
- Removing extraneous sounds Yes
- Internet
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- Live video viewing Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Customer iVMS-4200, HiLookVision
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Photo
- Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night mode Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR) 120 dB
- Photo beautification BLC,HLC,3D DNA
- SNR ≥ 52 dB
- Privacy mask 4 programmable polygon privacy masks
- Interface
- Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Internal memory
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reboot button Yes
- Built-in microphone Yes,1 built-in microphone
- Features
- Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Interface Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
- Home
- System parameters 12 VDC ± 25%, 0.8 A, max. 9.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12 W
- Material
Base: metal, cover: plastic
- Size
Ø121.5 mm × 97.6 mm (Ø4.78 × 3.84")"
- Package size 150 mm × 150 mm × 141 mm (5.90" × 5.90" × 5.55")
- Weight Approx. 540 g (1.2 lb.)
- Weight with packaging Approx. 740 g (1.6 lb.)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Main functions Heartbeat, anti-banding, mirror, password protection, password reset via email
- Language English, Ukrainian
- Approvals
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Security
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environmental protection
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013, IK08: IEC 62262:2002
| Weight | 0.54 kg |
