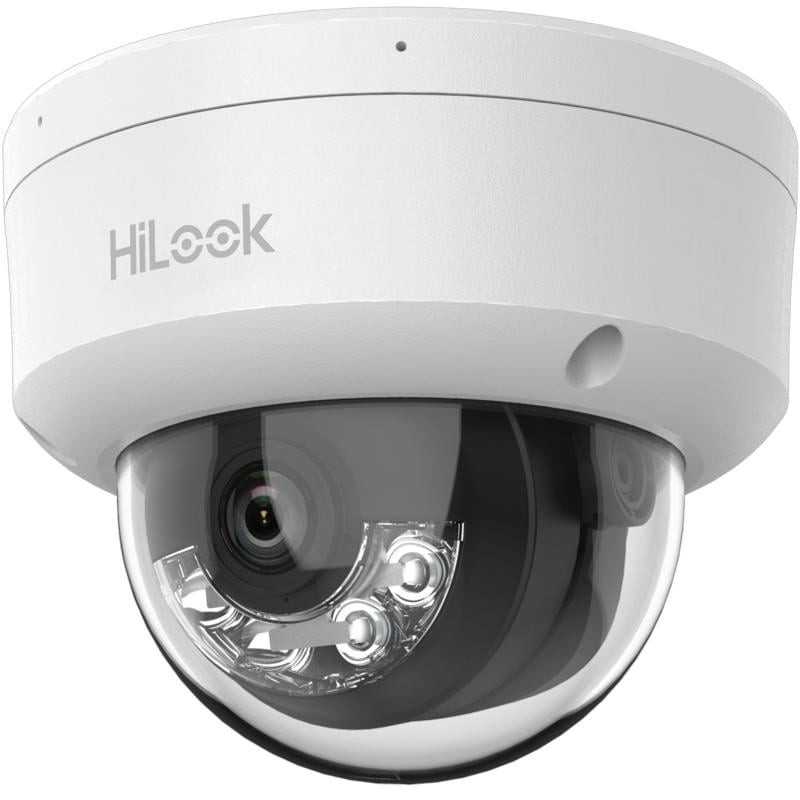

HiLook dome IPC-D180HA-LU F2.8 (white, 8 MP, 30 m. IR, 30 m. LED, Hybrid Light)
Product reference:
26-6942160428079
- MP (MegaPixel): 8 MP
- Lens: 2.8 mm, horizontal FOV: 105°
- Technology: Hybrid Light
- Built-in microphone: Yes
- Night illumination: 30 m. IR; 30 m. LED
- microSD slot: No
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1280ZJ-DM46
- Outdoor/Indoor: Outdoor
HiLook dome IPC-D180HA-LU F2.8 (white, 8 MP, 30 m. IR, 30 m. LED, Hybrid Light)
Product reference:
26-6942160428079
- MP (MegaPixel): 8 MP
- Lens: 2.8 mm, horizontal FOV: 105°
- Technology: Hybrid Light
- Built-in microphone: Yes
- Night illumination: 30 m. IR; 30 m. LED
- microSD slot: No
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1280ZJ-DM46
- Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Camera
- Sensor 1/2.7" Progressive Scan CMOS
- Max resolution 3840 × 2160
- Min. lighting Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter speed 1/3 s to 1/100,000 s
- Day Night IR cut filter
- Changing the angle Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens
- Lens type Fixed focal lens, 2.8 and 4 mm optional
- Focal Length FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
- Lens installation M12
- Iris type Fixed
- Aperture F2.0
- DOROUS
- DOROUS
2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
- Lighting
- Additional lighting type IR,White Light
- Additional lighting range Up to 30 m
- Smart additional lighting Yes
- IR wavelength 850 nm
- Image
- Main stream
50Hz:
12.5 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
60Hz:
15 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
- Secondary flow
50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60Hz: 15fps (1280x720, 640x480, 640x360)
- Image compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video bit rate 32 Kbps to 16 Mbps
- H.264 type Baseline Profile, Main Profile, High Profile
- H.265 type Main Profile
- Bit rate control CBR,VBR
- Region of Interest (ROI) 1 fixed region for main stream
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Sound
- Audio type Mono sound
- Removing extraneous sounds Yes
- Audio sampling frequency 8kHz/16kHz
- Audio compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Internet
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Live video viewing Up to 6 channels
- API Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Customer iVMS-4200, HiLookVision
- Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Photo
- Wide Dynamic Range (WDR) 120 dB
- SNR ≥ 52 dB
- Day/Night mode Day, Night, Auto, Schedule
- Photo beautification BLC,HLC,3D DNA
- Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy mask 4 programmable polygon privacy masks
- Interface
- Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Built-in microphone Yes
- Features
- Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Interface Upload to FTP, send email, notify surveillance center, trigger capture
- Home
- System parameters
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
- Material Metal Plastic
- Size Ø121.5mm × 97.6mm (Ø4.78" × 3.84")
- Package size 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Weight Approx. 550 g (1.2 lb.)
- Weight with packaging Approx. 800 g (1.8 lb.)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language English, Ukrainian
- Main functions Heartbeat, anti-banding, mirror, password protection, password reset via email
- Approvals
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Security
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environmental protection
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013, IK08: IEC 62262:2002
| Weight | 0.55 kg |
