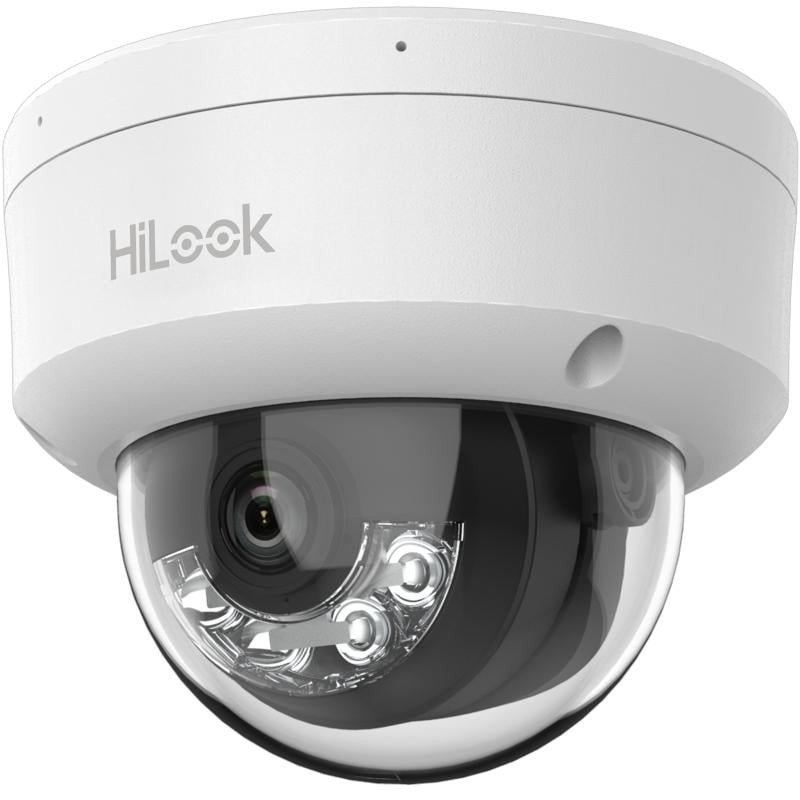

HiLook dome IPC-D141H-C F2.8 (white, 4 MP, 20m IR, 120dB WDR)

Product reference: 26-6931847188702

HiLook dome IPC-D141H-C F2.8 (white, 4 MP, 20m IR, 120dB WDR)

Product reference: 26-6931847188702

You have 3 products in compare list, please remove someone and try again

Add to compare

7291 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Approvals
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, KC: KN32: 2015, KN35: 2015
Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Security CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017

DOROUS
DOROUS 2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m

Features
Basic Event Motion detection (support alarm triggering by specified target type (human)), exception
Interface Notify surveillance center, send email, trigger capture

General information
Dimensions Ø110.8mm × 85.2mm (Ø4.36" × 3.35")
Main functions Heartbeat, anti-banding, mirror, password protection, password reset via email
Language English, Ukrainian
Material Plastic
Package size 163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
Power supply 12 VDC ± 25%, 0.4 A, max. 4.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 0, max. 6.5 W
Working conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Storage conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Weight Approx. 240 g (0.5 lb.)
Weight with packaging Approx. 400 g (0.8 lb.)

Day/night switch Day, Night, Auto, Schedule
Photo beautification BLC,HLC,3D DNA
Image settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy mask 1 programmable polygon privacy mask
SNR ≥ 52 dB
Wide Dynamic Range (WDR) Digital WDR

Lens
Aperture F2.2
Depth of field 2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞
Focal Length FOV 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
Iris type Fixed
Lens mount M12
Lens type Fixed focal lens, 2.8 and 4 mm optional

Network
API ONVIF (Profile S, Profile T), ISAPI, SDK
Customer iVMS-4200
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
Safety Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
Live video viewing Up to 6 channels
User/port Up to 32 users3 user levels: administrator, operator, and user
Browser Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11

Bit rate control CBR,VBR
H.264 type Baseline Profile, Main Profile, High Profile
H.265 type Main Profile
Main stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Region of Interest (ROI) 1 fixed region for main stream
Secondary flow 50Hz: 25fps (1280×720，640×480, 640×360)60Hz: 24fps (1280×720，640×480, 640×360)
Video bit rate 32 Kbps to 8 Mbps
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
