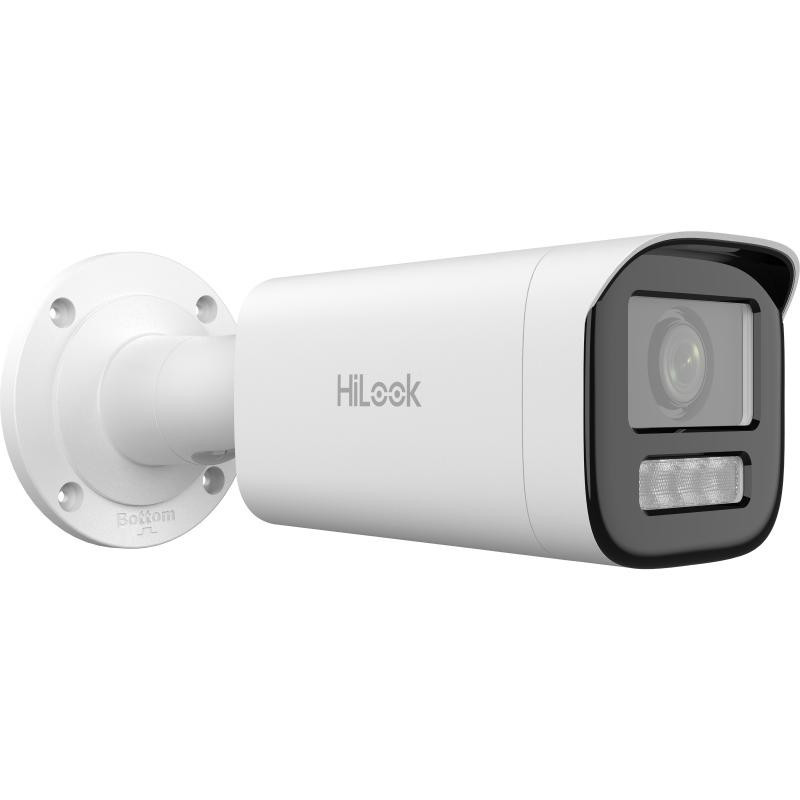

HiLook bullet IPC-B620HA-LZU F2.8-12 (white, 2 MP, 50 m IR, 50 m LED, Hybrid Light)
Product reference: 26-6942160444581
  • MP (MegaPixel): 2 MP
  • Lens: 2.8 mm, horizontal FOV: 102° to 31°
  • Technology: Hybrid Light
  • Built-in microphone: Yes
  • Night illumination: 50 m. IR; 50 m. LED
  • microSD slot: Yes, 512GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1280ZJ-S
  • Outdoor/Indoor: Outdoor
HiLook bullet IPC-B620HA-LZU F2.8-12 (white, 2 MP, 50 m IR, 50 m LED, Hybrid Light)

HiLook bullet IPC-B620HA-LZU F2.8-12 (white, 2 MP, 50 m IR, 50 m LED, Hybrid Light)

Product reference: 26-6942160444581
  • MP (MegaPixel): 2 MP
  • Lens: 2.8 mm, horizontal FOV: 102° to 31°
  • Technology: Hybrid Light
  • Built-in microphone: Yes
  • Night illumination: 50 m. IR; 50 m. LED
  • microSD slot: Yes, 512GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1280ZJ-S
  • Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
13173 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Camera
  • Sensor 1/2.9" Progressive Scan CMOS
  • Max resolution 1920 × 1080
  • Min. lighting Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter speed 1/3 s to 1/100,000 s
  • Day Night IR cut filter
  • Changing the angle Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens
  • Lens type Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length FOV 2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°
  • Lens installation Ø14
  • Iris type Fixed
  • Aperture F1.6
  • DOROUS
  • DOROUS D: 45.7 to 141.4 m, O: 18.1 to 56.1 m, R: 9.1 to 28.3 m, I: 4.6 to 14.1 m
  • Lighting
  • Additional lighting type IR,White Light
  • Additional lighting range Up to 50 m
  • IR wavelength 850 nm
  • Smart additional lighting Yes
  • Image
  • Main stream

    50Hz: 25fps (1920×1080, 1280×720)

    60Hz: 30fps (1920×1080, 1280×720)
  • Secondary flow

    50Hz: 25fps (640×480, 640×360)

    60Hz: 30fps (640×480, 640×360)
  • Image compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG
  • Video bit rate 32 Kbps to 16 Mbps
  • H.264 type Baseline Profile, Main Profile, High Profile
  • H.265 type Main Profile
  • Bit rate control CBR,VBR
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 1 fixed region for main stream
  • Sound
  • Audio type Mono sound
  • Audio compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Audio sampling frequency 8kHz/16kHz
  • Removing extraneous sounds Yes
  • Internet
  • Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • Live video viewing Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user
  • Customer iVMS-4200, HiLookVision
  • Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Browser

    Plug-in required live view: IE 10, IE 11,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Photo
  • Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night mode Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR) Digital WDR
  • Photo beautification BLC,HLC,3D DNA
  • SNR ≥ 52 dB
  • Privacy mask 4 programmable polygon privacy masks
  • Interface
  • Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reboot button Yes
  • Built-in microphone Yes,1 built-in microphone
  • Features
  • Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Interface Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
  • Home
  • System parameters 12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.9 W
  • Material Metal Plastic
  • Size

    Ø105mm × 252mm (Ø4.13 × 9.92\")"
  • Package size 315 mm × 137 mm × 141 mm (12.40" × 5.39" × 5.55")
  • Weight Approx. 565 g (1.2 lb.)
  • Weight with packaging Approx. 860 g (1.9 lb.)
  • Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language English, Ukrainian
  • Main functions Heartbeat, anti-banding, mirror, password protection, password reset via email
  • Approvals
  • EMC

    CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7
  • Security

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environmental protection

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006
  • Protection IP67: IEC 60529-2013

Weight0.721 kg
