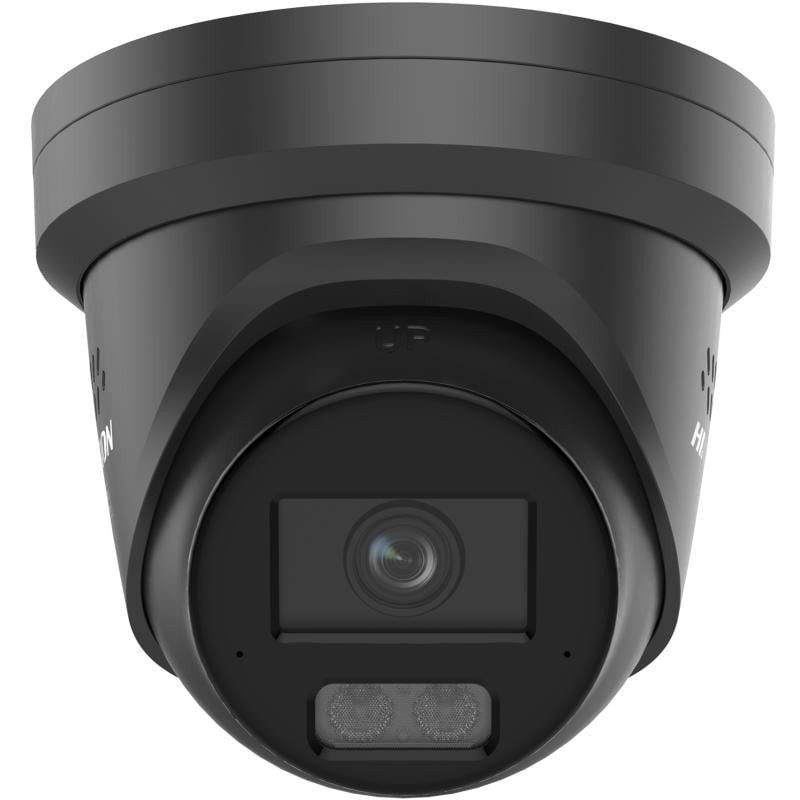

Hikvision Turret DS-2CD2347G3-LIS2UY / SL F2.8 (Black, 4MP, Hybrid Light, IR+LED 30m)

Product reference: 26-6936422114893

HikAI-ISP, providing excellent noise reduction effect
24/7 color vision using ColorVu technology
Scene-adaptive WDR
Focus on classification of people and vehicles based on deep learning
Integrated arrayed dual microphone for high-quality real-time audio security
Provides real-time safety through integrated two-way audio
Corrosion-resistant design for reliability and durability compared to standard (NEMA4X)
Smart hybrid lighting: integrates IR and white light, 3 additional lighting modes
Waterproof and dustproof (IP67)
Audio and alarm interface available
Active flash and sound alarm to warn intruders

Hikvision Turret DS-2CD2347G3-LIS2UY / SL F2.8 (Black, 4MP, Hybrid Light, IR+LED 30m)

Product reference: 26-6936422114893

HikAI-ISP, providing excellent noise reduction effect
24/7 color vision using ColorVu technology
Scene-adaptive WDR
Focus on classification of people and vehicles based on deep learning
Integrated arrayed dual microphone for high-quality real-time audio security
Provides real-time safety through integrated two-way audio
Corrosion-resistant design for reliability and durability compared to standard (NEMA4X)
Smart hybrid lighting: integrates IR and white light, 3 additional lighting modes
Waterproof and dustproof (IP67)
Audio and alarm interface available
Active flash and sound alarm to warn intruders

You have 3 products in compare list, please remove someone and try again

Add to compare

20473 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Lens
Lens type Fixed focal lens, 2.8 and 4 mm optional
Focal Length FOV 2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
Lens installation M16
Iris type Fixed
Aperture F1.0
Depth of field 2.8 mm: 2.5 m to ∞4 mm: 3.1 m to ∞

DOROUS
DOROUS 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Main stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Secondary flow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*The third stream is supported under certain settings.
Image compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
Video bit rate 32 Kbps to 8 Mbps
H.264 type Baseline Profile, Main Profile, High Profile
H.265 type Main Profile
Bit rate control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream

Audio
Audio type Mono sound
Audio compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio sampling frequency 8kHz/16kHz/32kHz/48kHz
Removing extraneous sounds Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Live video viewing Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/port Up to 32 users3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Customer iVMS-4200, Hik-Connect, Hik-Central
Browser Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+

Photo parameters converter Yes
Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night mode Day, Night, Auto, Schedule
Photo beautification BLC, HLC, 3D DNR, Distortion Correction, Defog
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 130 dB
Image stabilization EIS
Privacy mask 4 programmable polygon privacy masks

Interface
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in speaker Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
Audio Built-in Microphone: Arrayed dual-microphone1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reboot button Yes

Features
Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart features Scene change detection
Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, strobe light flashing

Smart features
Facial recognition Yes
Perimeter security Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Home
Power supply 12 VDC ± 25%, 1.29 A, max. 15.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 17 W
Material Cover: metal, main body: metal
Size Ø138.3mm × 115.4mm (Ø5.4" × 4.5")
Package size 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight Approx. 820 g (1.8 lb.)
Weight with packaging Approx. 1200 g (2.6 lb.)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Main functions Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing Light /SRB model: Red and Blue Light/SL model: White Light

Approvals
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Security UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
Environmental protection CE-RoHS: 2011/65/EU
Protection IP67: IEC 60529-2013
Corrosion protection NEMA 4X (NEMA 250-2018)

Weight

0.84 kg
