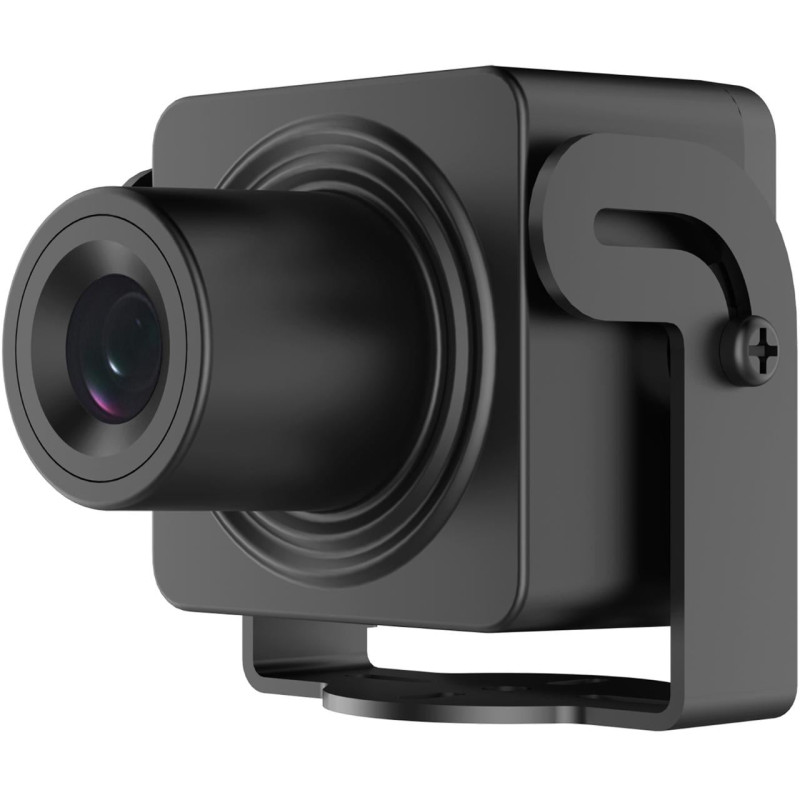

Hikvision pinhole cube DS-2CD2D25G1 / MD / NF F2.8 (black, 2 MP)
Product reference:
26-6931847148744
- MP (MegaPixel): 2 MP
- Lens: 2.8 mm, horizontal FOV: 107°
- Technology: WDR
- Built-in microphone: No
- microSD slot: No
- Operating conditions: -30 °C to 60 °C
- Video compression: H.265+
- WiFi: No
Hikvision pinhole cube DS-2CD2D25G1 / MD / NF F2.8 (black, 2 MP)
Product reference:
26-6931847148744
- MP (MegaPixel): 2 MP
- Lens: 2.8 mm, horizontal FOV: 107°
- Technology: WDR
- Built-in microphone: No
- microSD slot: No
- Operating conditions: -30 °C to 60 °C
- Video compression: H.265+
- WiFi: No
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Camera
- Sensor 1/2.8" Progressive Scan CMOS
- Max resolution 1920 × 1080
- Min. lighting Color: 0.002 Lux @ (F1.2, AGC ON)
- Shutter speed 1/3 s to 1/100,000 s
- Lens
- FOV
2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7°
4 mm: horizontal FOV: 82.8°, vertical FOV: 45.1°, diagonal FOV: 98°
- Lens installation M12
- Iris type Fixed
- Aperture
2.8mm: F2.0
4mm: F2.0
- DOROUS
- DOROUS
2.8mm: D: 42.8m, O: 17m, R: 8.6m, I: 4.3m
4 mm: D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m
- Image
- Main stream
50Hz: 50fps (1920×1080, 1280×720)
60Hz: 60fps (1920×1080, 1280×720)
- Secondary flow
50Hz: 25fps (640×480, 640×360, 320×240)
60Hz: 30fps (640×480, 640×360, 320×240)
- Third stream
50Hz: 1fps (1920×1080, 1280×720, 640×480, 640×360, 320×240)
60 Hz: 1 fps (1920×1080, 1280×720, 640×480, 640×360, 320×240)
- Image compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- H.264 type Baseline Profile/Main Profile/High Profile
- H.265 type Main Profile
- Bit rate control CVR/BVR
- SVC H.264 and H.265 encoding
- ROI Support 1 fixed region for main stream
- Sound
- Audio type Mono
- Audio compression G.711/G.722.1/G.726/MP2L2/PCM/AAC
- Audio bit rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio sampling frequency 8kHz/16kHz/32kHz
- Removing extraneous sounds Yes
- Internet
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Live video viewing Up to 15 channels
- API Open Network Video Interface, ISAPI, SDK, ISUP 5.0
- User/Host
Up to 32 users
3 levels: administrator, operator, and user
- Internal memory NAS (NFS, SMB/CIFS)
- Customer iVMS-4200, Hik-Connect
- Browser
Plug-in required live view: IE10, IE11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Photo
- Photo parameters converter Yes
- Photo settings Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
- Day/Night mode Day, Night, Auto, Schedule
- WDR 120 dB
- Photo beautification BLC, HLC, defog, 3D DNA
- Privacy mask Yes
- Interface
- Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Sound 1 input (line in), 1 output (line out)
- Reboot button Yes
- Features
- Main functions Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconnected), video quality diagnosis
- Smart features
Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Audio exception detection, defocus detection, scene change detection
- Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
- Home
- System parameters 12 VDC ± 20%, 0.13 A, max. 1.5 W, Ø5.5 mm coaxial power plug
- Size 31.5 mm × 31.5 mm × 49.6 mm (1.2" × 1.2" × 2")
- Package size 130 mm × 104 mm × 85 mm (5.1" × 4.1" × 3.3")
- Approx. 93 g (0.2 lb.)
- Weight with packaging Approx. 202 g (0.4 lb.)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language 18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
- Main functions One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
- Approvals
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (CN 32: 2015, CN 35: 2015)
- Security
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
LOA (IEC/EN 60950-1)
- Environmental protection
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
| Weight | 0.126 kg |
