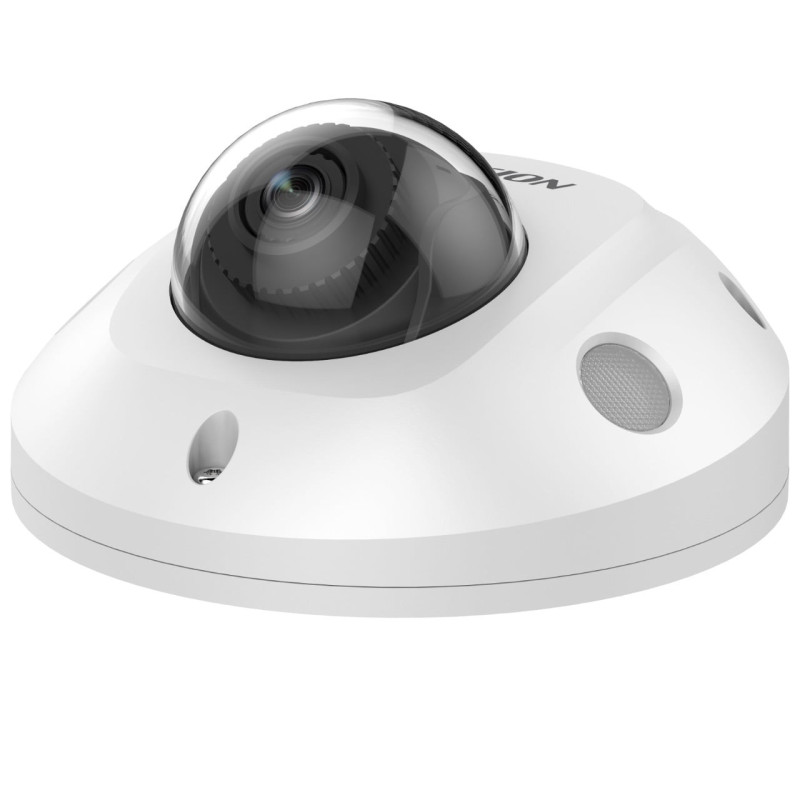

Hikvision mini dome DS-2CD2546G2-IS F2.8 (white, 4 MP, 30 IR, AcuSense)
Product reference: 26-6931847132859
  • MP (MegaPixel): 4 MP
  • Lens: 2.8 mm, horizontal FOV: 102°
  • Technology: AcuSense
  • Built-in microphone: No, there is a microphone input
  • Night illumination: 30 m. IR
  • microSD slot: Yes, 512GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1280ZJ-DM46
  • Outdoor/Indoor: Outdoor
Hikvision mini dome DS-2CD2546G2-IS F2.8 (white, 4 MP, 30 IR, AcuSense)

Hikvision mini dome DS-2CD2546G2-IS F2.8 (white, 4 MP, 30 IR, AcuSense)

Product reference: 26-6931847132859
  • MP (MegaPixel): 4 MP
  • Lens: 2.8 mm, horizontal FOV: 102°
  • Technology: AcuSense
  • Built-in microphone: No, there is a microphone input
  • Night illumination: 30 m. IR
  • microSD slot: Yes, 512GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1280ZJ-DM46
  • Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
18456 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Camera
Sensor1/2.7" Progressive Scan CMOS
Min. lightingColor: 0.003 Lux @ (F1.4, AGC ON)
Shutter speed1/3 s to 1/100,000 s
Day nightICR Cut
Slow shutterYes
Adjustment anglePan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
WDR120 dB
Lens
Lens and viewing angle 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
ApertureF1.4
Lens measurementsM12
Aperture typeFixed
Lighting
IR distanceUp to 30 m
Wavelength850 nm
Smart additional lightingYes
Additional lightingAND
Videos
Resolution2592 × 1944
Main stream 50Hz: 20fps (2592×1944)
25 fps (2688×1520, 2304×1296, 1920×1080, 1280×720)
60Hz: 20fps (2592×1944)
30 fps (2688×1520, 2304×1296, 1920×1080, 1280×720)
Secondary flow 50Hz: 25fps (640×480, 640×360, 320×240)
60Hz: 30fps (640×480, 640×360, 320×240)
Third stream 50Hz: 25 fps (1280×720, 640×480, 640×360, 320×240)
60Hz: 30fps (1280×720, 640×480, 640×360, 320×240)
Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bitrate32 Kbps to 8 Mbps
H.264BaseLine Profile/Main Profile/High Profile
H.265Main Profile
H.264+Main Stream supports
H.265+Main Stream supports
Bit rate controlCBR/VBR
Video Configuration (SVC)Yes
Regions of Interest (ROI)1 fixed region for main stream and sub-stream
Audio
Ambient noise filteringYes
Audio frequency8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio compressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate64Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 192Kbps(MP2L2)/ 8 to 320Kbps(MP3)/16 to 64Kbps(AAC)
Network
Eleventh reviewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
UsersUp to 32 users. 3 user levels: administrator, operator and user
ProtectionPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network hostingMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
CustomersiVMS-4200, Hik-Connect, Hik-Central
Browsers Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Day/night switchingDay, Night, Auto, Schedule
Image enhancementBLC, HLC, 3D DNA
Switching image settingsYes
Image settingsRotate, mirror, privacy masks, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR≥ 52 dB
Interfaces
Built-in microphoneYes
Audio -S:
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 100 Ω, interface type: non-equilibrium
Alarm-S: 1 alarm input, 1 alarm output (max. 24 VAC/24 VDC @500 mA)
Internal memoryBuilt-in micro SD slot, up to 256 GB
ReloadingYes
Communication interface1 RJ45 10M/100M self-adaptive Ethernet port
Smart features
Main eventsMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart eventsScene change detection
Deep learning
Face detectionYes
Perimeter securityLine crossing detection, intrusion detection, region entrance detection, region exiting detection
General
Storage conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Working conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power supply 12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Energy consumption 12 VDC, 0.58 A, max. 7 W
PoE: (802.3af, 36 V to 57 V), 0.24 A to 0.15 A, max. 8.5W
Power connectorØ5.5 mm coaxial power plug
MaterialsMetal
DimensionsØ110 × 57.4 mm (Ø4.4" × 2.3")
Package dimensions134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
WeightApprox. 370 g (0.8 lb.)
Weight with packagingApprox. 650 g (1.4 lb.)
Connection methodsUpload to FTP/NAS/memory card, notify surveillance center, trigger record, trigger capture, send email Only -S model supports: audible warning, trigger alarm output, trigger alarm input
program versionV5.5.135
Languages33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Main functionsAnti-flicker, heartbeat, password reset via e-mail, pixel counter
Reloading the programYes
Approvals
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SecurityUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013), IK08 (IEC 62262:2002)

Weight0.482 kg
