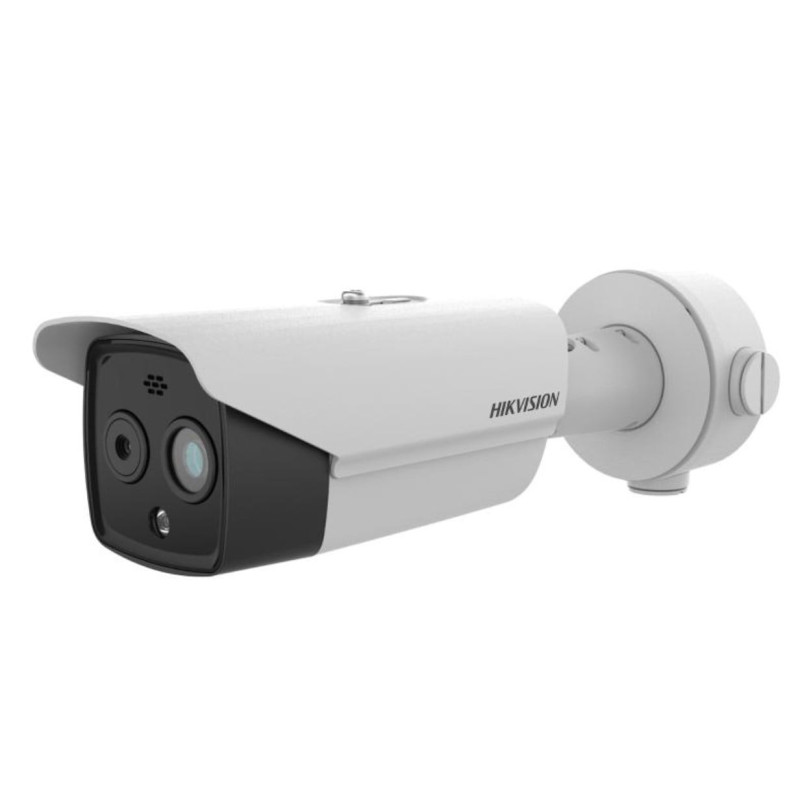

Hikvision HeatPro series thermal imaging bullet DS-2TD2628T-7 / QA

Product reference: 26-6931847157807

IP camera: DS-2TD2628T-7/QA
Manufacturer: Hikvision
Type: BULLET
Technology: Thermal imaging, bi-spectral
Thermal resolution: 256x192
NETD: < 40mk (± 2°C)
Temperature range: -20°C to 550°C
Optical camera: 6.9mm
Illumination: Up to 30m
Resistance class: IP67
Power supply: PoE
Functions: Fire detection, smoke detection, smoking detection, sun glare filter, forklift hazard filter

VCA distance

(Vehicles: 1.4 × 4.0 m) - 144.9m

(People: 1.8 × 0.5 m) - 55.2m

Temperature measurement (object: 1 × 1 m) -116.7m

Fire detection (object: 0.2 × 0.2 m) - 82.8m

Smoke detection (object: 0.5 × 0.5 m) - 18m

Smoke detection - 10.35m

Hikvision HeatPro series thermal imaging bullet DS-2TD2628T-7 / QA

Product reference: 26-6931847157807

IP camera: DS-2TD2628T-7/QA
Manufacturer: Hikvision
Type: BULLET
Technology: Thermal imaging, bi-spectral
Thermal resolution: 256x192
NETD: < 40mk (± 2°C)
Temperature range: -20°C to 550°C
Optical camera: 6.9mm
Illumination: Up to 30m
Resistance class: IP67
Power supply: PoE
Functions: Fire detection, smoke detection, smoking detection, sun glare filter, forklift hazard filter

VCA distance

(Vehicles: 1.4 × 4.0 m) - 144.9m

(People: 1.8 × 0.5 m) - 55.2m

Temperature measurement (object: 1 × 1 m) -116.7m

Fire detection (object: 0.2 × 0.2 m) - 82.8m

Smoke detection (object: 0.5 × 0.5 m) - 18m

Smoke detection - 10.35m

You have 3 products in compare list, please remove someone and try again

Add to compare

1 128,81 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Optical module
Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 × 1520
Min. lighting 0.0089Lux @(F1.6,AGC ON),0 Lux with IR
FOV 53.0° ×28.0° (H × V)
FOV 6.4 mm
Shutter speed 1 s to 1/100,000 s
White balance MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day Night Mode IR Cut Filter with Auto Switch
WDR 120 dB
Aperture F 1.6

Image effect
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target color Yes. Supported in white hot and black hot mode.

Audible and visual signal
White light range Up to 30 m
Visual alarm Yes. White light alarm with adjustable flashing frequencies
Sound alarm
Yes, for three types of audible alarm (VCA and Temperature Exception)
3 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)

Smart function
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature range -20°C to 550°C (-4°F to 1022°F);
Temperature accuracy Max (±2°C, ±2%)
Main functions Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter

Internet
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTPP, TLS
Internal memory MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI, HIKVISION SDK, ISUP, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G)
Live video viewing Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Customer iVMS-4200, Hik-Connect

Interface
Alarm input 2, alarm input (0-5 VDC)
Alarm output 2, alarm output (alarm response actions configurable)
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio input
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [pp], output impedance: 1 KΩ ± 10%
Audio output Linear level, impedance: 600 Ω
Communication interface
1, RJ45 10M/100M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
Analog output 1.0V [pp]/75Ω, PAL/NTSC/BNC

Home
Languages 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power supply
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3)
Energy consumption
24 VDC ± 25%: 0.8 A, Max.8.5 W
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5W
Operating temperature/humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
Protection level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
Size 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
Weight 1550g (3.41lb)
