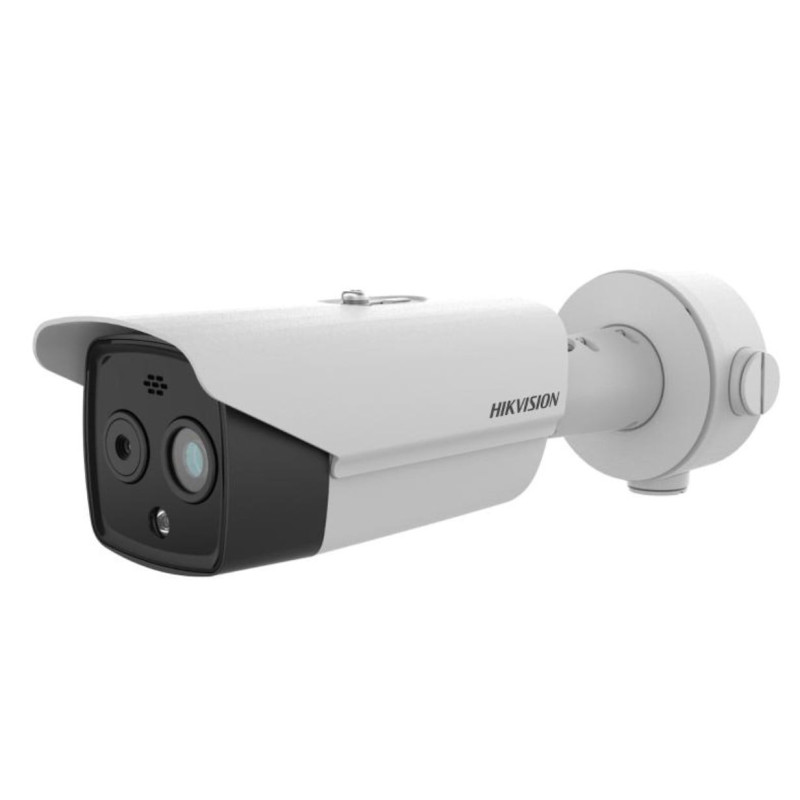

Hikvision HeatPro series thermal imaging bullet DS-2TD2628-7 / QA
Product reference:
26-6931847136550
- IP camera DS-2TD2628-7/QA
- Type: BULLET
- Manufacturer: Hikvision
- Camera: THERMAL IMAGING, bi-spectral
- Thermal camera: 256x192 resolution, operating temperature -20°C - 150°C
- Optical camera: 6.9mm lens, IR illumination up to 30m
- Compliance: IP67
- PoE support
- Includes: 1260ZJ
VCA distance
- (People: 1.8 × 0.5 m) - 55.2 m
- (Vehicles: 1.4 × 4.0 m) - 144.9 m
- Temperature measurement (object: 1 × 1 m) - 116.7 m
- Fire detection (object: 0.2 × 0.2 m) - 82.8 m
- Smoke detection - 10.35 m
Hikvision HeatPro series thermal imaging bullet DS-2TD2628-7 / QA
Product reference:
26-6931847136550
- IP camera DS-2TD2628-7/QA
- Type: BULLET
- Manufacturer: Hikvision
- Camera: THERMAL IMAGING, bi-spectral
- Thermal camera: 256x192 resolution, operating temperature -20°C - 150°C
- Optical camera: 6.9mm lens, IR illumination up to 30m
- Compliance: IP67
- PoE support
- Includes: 1260ZJ
VCA distance
- (People: 1.8 × 0.5 m) - 55.2 m
- (Vehicles: 1.4 × 4.0 m) - 144.9 m
- Temperature measurement (object: 1 × 1 m) - 116.7 m
- Fire detection (object: 0.2 × 0.2 m) - 82.8 m
- Smoke detection - 10.35 m
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Thermal imaging module
- Sensor Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution 256 × 192
- Point step 12 μm
- Spectral range 8 μm to 14 μm
- NETD < 40 mK (25°C, F1.0)
- FOV 6.9mm
- IFOV 1.74 mrad
- FOV 24.9° × 18.7° (H × V)
- Minimum focusing distance 1 year
- Aperture F1.0
- Digital zoom ×2, ×4
- Optical module
- Sensor 1/2.7" Progressive Scan CMOS
- Resolution 2688 × 1520
- Min. lighting 0.0089Lux @(F1.6,AGC ON),0 Lux with IR
- Shutter speed 1 s to 1/100,000 s
- FOV 6.4 mm
- FOV 53.0° × 28.0° (H × V)
- Aperture (range) F1.6
- WDR 120 dB
- Image effect
- Target color Yes. Supported in white hot and black hot mode.
- Lighting
- IR distance Up to 30 m
- IR intensity and angle Automatically adjusted
- Audible and visual signal
- White light range Up to 30 m
- Visual alarm Yes. White light alarm with adjustable flashing frequencies
- Sound alarm
Yes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
- Smart function
- VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature range -20°C to 150°C (-4°F to 302°F)
- Temperature accuracy ± 8°C (± 14.4°F)
- Main functions Fire detection, smoking detection, sun-reflection filter
- Image and sound
- Main stream
Thermal:
25 fps (1280×720, 704×576, 640×512, 320×240)
Optical:
50Hz: 25fps (2688×1520, 1920×1080, 1280×720)
60Hz: 30fps (2688×1520, 1920×1080, 1280×720)
- Sub-stream
Thermal:
25 fps (704×576, 640×512, 320×240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60Hz: 30fps (704×480, 352×240)
- Image compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Internet
- Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS
- Internal memory MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- API ISAPI, HIKVISION SDK, ISUP, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G)
- Live video viewing Up to 20 channels
- User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
- Security User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- Customer iVMS-4200, Hik-Connect
- Browser
Live view (plug-in allowed): Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service: Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm input 2, alarm input (0-5 VDC)
- Alarm output 2, alarm output (alarm response actions configurable)
- Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio input
1, 3.5 mm Mic in/Line in interface
Line input: 2 to 2.4 V [pp], output impedance: 1 KΩ ± 10%
- Audio output Linear level, impedance: 600 Ω
- Communication interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
- Analog output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
- Home
- Web browser language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power supply
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3)
- Energy consumption
24 VAC ± 25%: 0.8 A, Max.8.5 W
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5W
- Operating temperature/humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Protection level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
- Size 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
- Weight 1550g (3.41lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans 56 years
- VCA Range for Vehicles 168 m
| Manufacturer | Hikvision |
| Manufacturer code | KIPDS2TD26287QA |
| Weight | 1.906 kg |
