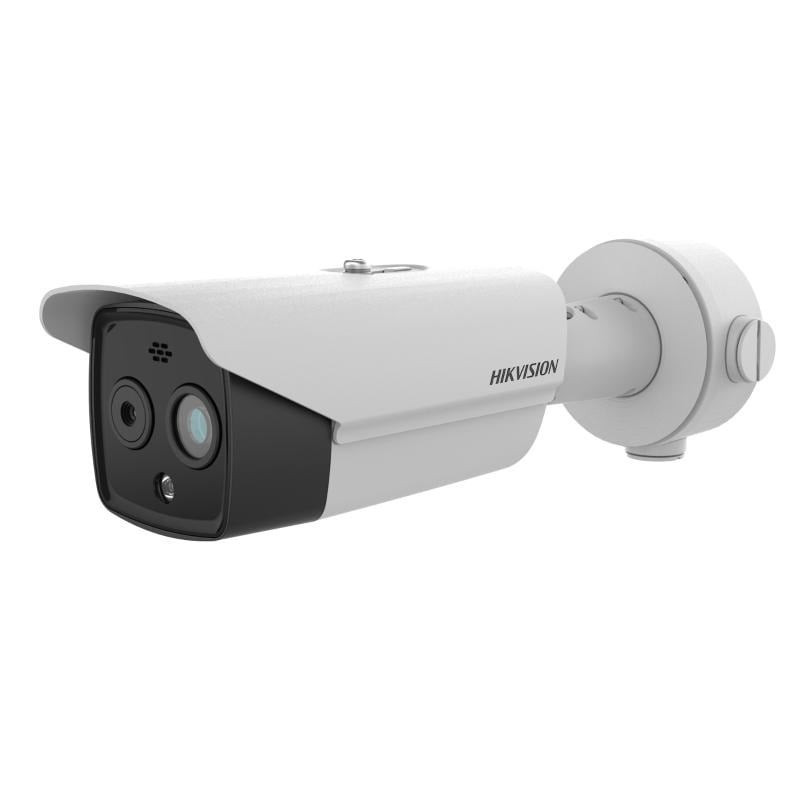

Hikvision HeatPro series thermal imaging bullet DS-2TD2628-10 / QA
Product reference: 26-6931847136567
  • Type: Thermal imaging bi-spectral IP camera (Bullet)
  • Model: DS-2TD2628-10/QA
  • Brand: Hikvision
  • Series: HeatPro
  • Thermal camera: 256×192, NETD < 40 mK (@25 °C, F#=1.1), focal length 9.7 mm
  • Temperature range: -20 °C - +150 °C, accuracy ±8 °C
  • Optical camera: 9.7 mm, IR illumination up to 30 m
  • Functions: Light and sound alarm
  • Power supply: PoE
  • Protection: IP67
  • Included: Holder 1260ZJ
Hikvision HeatPro series thermal imaging bullet DS-2TD2628-10 / QA

Hikvision HeatPro series thermal imaging bullet DS-2TD2628-10 / QA

Product reference: 26-6931847136567
  • Type: Thermal imaging bi-spectral IP camera (Bullet)
  • Model: DS-2TD2628-10/QA
  • Brand: Hikvision
  • Series: HeatPro
  • Thermal camera: 256×192, NETD < 40 mK (@25 °C, F#=1.1), focal length 9.7 mm
  • Temperature range: -20 °C - +150 °C, accuracy ±8 °C
  • Optical camera: 9.7 mm, IR illumination up to 30 m
  • Functions: Light and sound alarm
  • Power supply: PoE
  • Protection: IP67
  • Included: Holder 1260ZJ
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
56038 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Audible and visual signal
  • Sound alarm Yes, for two types of audible alarm (VCA and Temperature Exception) 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types)
  • Visual alarm Yes. White light alarm with adjustable flashing frequencies
  • White light range Up to 30 m
  • Detection Range Table/Smart Function Range
  • VCA Range for Humans 80 m
  • VCA Range for Vehicles 240 m
  • General data
  • Dimensions 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
  • Energy consumption 24 VAC ± 25%: 0.8 A, Max.8.5 W12 VDC ± 25%: 0.7 A, Max.8.5 WPoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5W
  • Power source 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
  • Protection level IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protectionIK10-rated housing
  • Web browser language 32 languages ​​English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Weight 1550g (3.41lb)
  • Operating temperature/humidity Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
  • Lighting
  • IR distance Up to 30 m
  • IR intensity and angle Automatically adjusted
  • Image effect
  • Target color Yes. Supported in white hot and black hot mode.
  • Interface
  • Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Alarm input 2, alarm input (0-5 VDC)
  • Alarm output 2, alarm output (alarm response actions configurable)
  • Analog output 1.0V [pp]/75Ω, PAL/NTSC/BNC
  • Audio input 1, 3.5 mm Mic in/Line in interfaceLine input: 2 to 2.4 V [pp], output impedance: 1 KΩ ± 10%
  • Audio output Linear level, impedance: 600 Ω
  • Communication interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
  • Network
  • API ISAPI, HIKVISION SDK, ISUP, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G)
  • Customer iVMS-4200, Hik-Connect
  • Internal memory MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS
  • Security User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Live video viewing Up to 20 channels
  • User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
  • Browser Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +
  • Optical module
  • Aperture (range) F1.6
  • Field of view 39.4° × 22.1° (H × V)
  • Focal length 8.0 mm
  • Image sensor 1/2.7" Progressive Scan CMOS
  • Minimal lighting 0.0089Lux @(F1.6,AGC ON),0 Lux with IR
  • Resolution 2688 × 1520
  • Shutter speed 1 s to 1/100,000 s
  • WDR 120 dB
  • Smart function
  • Main functions Fire detection, smoking detection, sun-reflection filter
  • Temperature accuracy ± 8°C (± 14.4°F)
  • Temperature measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature range -20°C to 150°C (-4°F to 302°F)
  • VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Thermal imaging module
  • Aperture F1.0
  • Digital zoom ×2, ×4
  • Field of view 18.0° × 13.5° (H × V)
  • Focal length 9.7 mm
  • IFOV 1.24 mrad
  • Image sensor Vanadium Oxide Uncooled Focal Plane Arrays
  • Minimum focusing distance 1.5 m
  • NETD < 40 mK (25°C, F1.0)
  • Point step 12 μm
  • Resolution 256 × 192
  • Spectral range 8 μm to 14 μm
  • Image and sound
  • Audio compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Main stream Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Secondary flow Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
  • Image compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG

Weight1.55 kg
