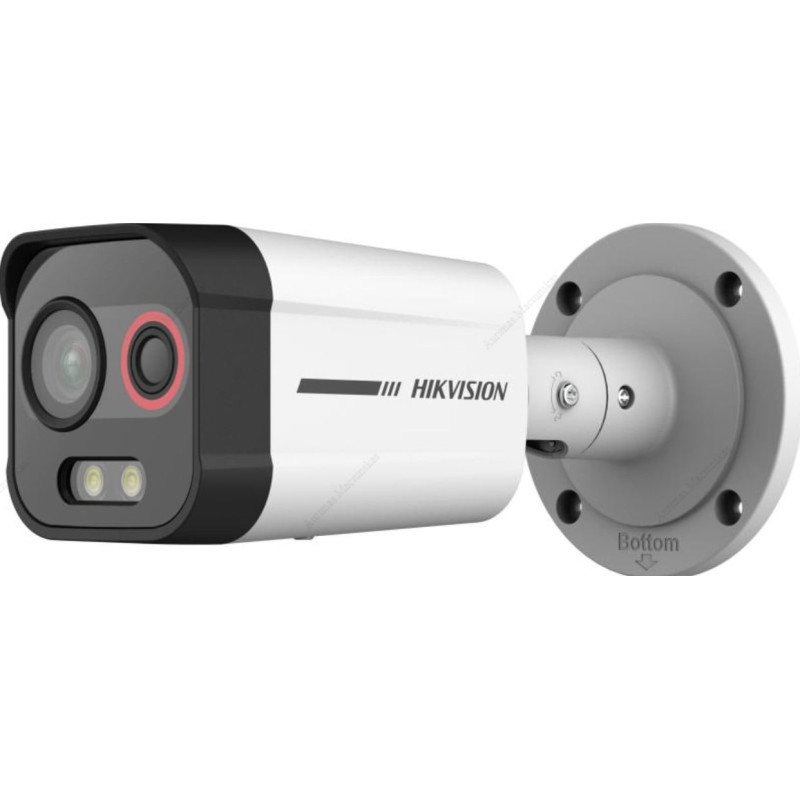

Hikvision HeatPro series thermal imaging bullet DS-2TD2608-2 / QA
Product reference:
26-6942160419879
- IP camera DS-2TD2608-2/QA
- Manufacturer: Hikvision
- Type: BULLET
- Technology: THERMAL IMAGING, bi-spectral
- Thermal resolution: 96 × 72
- NETD 55mk (@ 25 °C, F#=1.1)
- Camera lens: 2.6mm
- Temperature range: -20°C to 150°C, ±8°C accuracy
- Optical camera lens: 6mm
- LED lighting up to 30m
- Light and sound alarm
- Resistance class: IP67
- Has 2x alarm inputs
- Impact resistance class: IK08
- PoE power supply
VCA distance
- (Vehicles: 1.4 × 4.0 m) - 63m
- (People: 1.8 × 0.5 m) - 21m
Hikvision HeatPro series thermal imaging bullet DS-2TD2608-2 / QA
Product reference:
26-6942160419879
- IP camera DS-2TD2608-2/QA
- Manufacturer: Hikvision
- Type: BULLET
- Technology: THERMAL IMAGING, bi-spectral
- Thermal resolution: 96 × 72
- NETD 55mk (@ 25 °C, F#=1.1)
- Camera lens: 2.6mm
- Temperature range: -20°C to 150°C, ±8°C accuracy
- Optical camera lens: 6mm
- LED lighting up to 30m
- Light and sound alarm
- Resistance class: IP67
- Has 2x alarm inputs
- Impact resistance class: IK08
- PoE power supply
VCA distance
- (Vehicles: 1.4 × 4.0 m) - 63m
- (People: 1.8 × 0.5 m) - 21m
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Thermal imaging module
- Sensor Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution 96 × 72
- Point step 12 μm
- Spectral range 8 μm to 14 μm
- NETD < 55 mK (25°C, F1.0)
- FOV 2.6 mm
- IFOV 4.62 mrads
- FOV 25.0° × 18.75° (H × V)
- Minimum focusing distance 0.05 m
- Aperture F1.0
- Digital zoom ×2, ×4
- Optical module
- Sensor 1/1.8" Progressive Scan CMOS
- Resolution 2688 × 1520
- Min. lighting 0.0005 Lux @（F1.0，AGC ON）, 0 Lux with Light
- Shutter speed 1 s to 1/100,000 s
- FOV 6 mm
- FOV 56.0° × 30° (H × V)
- Aperture (range) F1.0
- WDR 120 dB
- Image effect
- Target color Yes. Supported in white hot and black hot mode.
- Lighting
- Light Supplement Warm Light
- Light Supplement Distance 30 years
- Audible and visual signal
- White light range Up to 30 m
- Visual alarm Yes. White light alarm with adjustable flashing frequencies
- Sound alarm
Yes
1 preset voice alerts
6 importable user-defined voice alerts
- Smart function
- VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Image and sound
- Main stream
Thermal:
25 fps (1280×720, 704×576, 640×480, 352×288，320×240)
Optical:
50Hz: 25fps (2688×1520, 1920×1080, 1280×720)
60Hz: 30fps (2688×1520, 1920×1080, 1280×720)
- Sub-stream
Thermal:
25 fps (704×576, 352×288, 320×240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60Hz: 30fps (704×480, 352×240)
- Image compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Internet
- Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,SSL
- Internal memory MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- API ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Live video viewing Up to 20 channels
- User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
- Security User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- Customer iVMS-4200, Hik-Connect
- Browser
Live view (plug-in allowed): Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +, macOS10.13 +, Safari 12+
Local service: Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm input 2, alarm input (0-5 VDC)
- Alarm output 2, alarm output (alarm response actions configurable)
- Alarm Action Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
- Communication interface
1, RJ45 10M/100M Self-adaptive Ethernet interface.
- Home
- Web browser language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
- Energy consumption
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5W
- Operating temperature/humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Protection level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
- Size
211.5 mm × 105 mm × 105 mm (8.32" × 4.13" × 4.13")
- Weight
869.2 g (1.92 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans 20 years
- VCA Range for Vehicles 60 m
| Weight | 1.009 kg |
