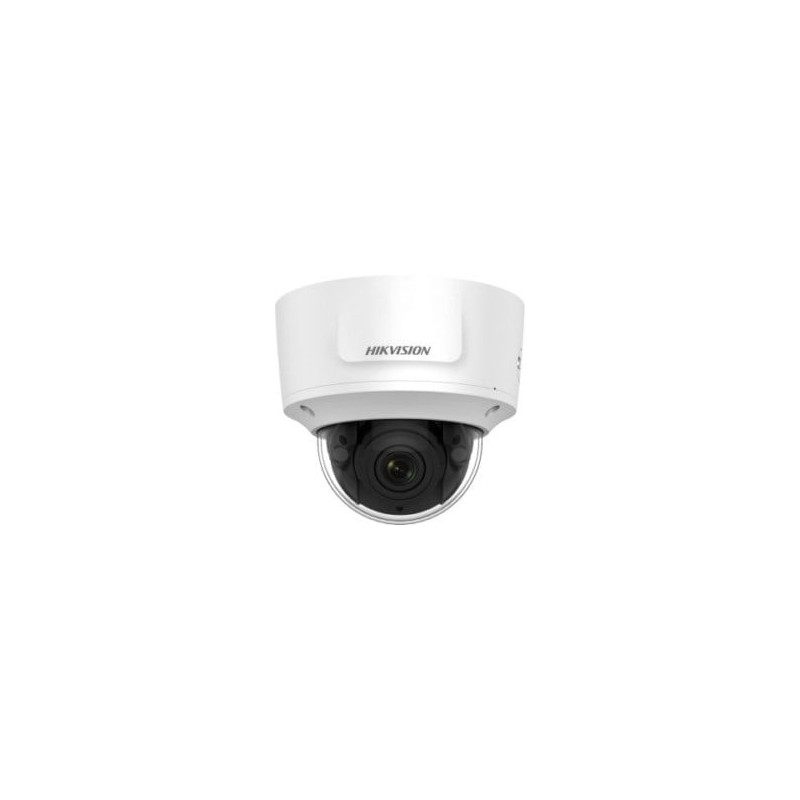

Hikvision dome DS-2CD2763G2-IZS (white, 6 MP, 30 m. AND 40 m., AcuSense)

Product reference: 26-6941264095279

Hikvision dome DS-2CD2763G2-IZS (white, 6 MP, 30 m. AND 40 m., AcuSense)

Product reference: 26-6941264095279

You have 3 products in compare list, please remove someone and try again

Add to compare

24848 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Lentils
Lens type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length FOV 2.8 to 12 mm, horizontal FOV 106° to 32°, vertical FOV 55° to 18°, diagonal FOV 129° to 36°
Lens installation Ø14
Iris type Fixed
Aperture F1.6

DOROUS
DOROUS 2.8 to 12 mm: D: 80 m to 245 m, O: 32 m to 97 m, R: 16 m to 49 m, I: 8 m to 24 m

Max resolution 3200 × 1800
Main stream
50Hz: 20fps (3200×1800)
25 fps (2688×1520, 1920×1080, 1280×720)
60Hz: 20fps (3200×1800)
30 fps (2688×1520, 1920×1080, 1280×720)
Auxiliary flow
50Hz: 25fps (640×480, 640×360)
60Hz: 30fps (640×480, 640×360)
Tertiary flow
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Image compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video bit rate 32 Kbps to 16 Mbps
H.264 type Baseline Profile/Main Profile/High Profile
H.265 type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Bit rate control CBR/VBR
SVC
H.264 and H.265 encoding
ROI 1 fixed region for main stream and sub-stream

Sound
Audio compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio sampling rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Ambient noise filtering Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Live video viewing Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/broadcaster Up to 32 users. 3 user levels: administrator, operator and user
Protection Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Customer iVMS-4200, Hik-Connect, Hik-Central
Web browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Photos
Changing photo settings Yes
Photo settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/night change Day, Night, Auto, Schedule
Photo enhancement BLC, HLC, 3D DNA
SNR ≥ 52 dB

Interfaces
Ethernet interfaces 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal storage Built-in memory card slot, support micro SD card, up to 256 GB
Sound
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Warning signal 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Hardware recovery Yes

Events
Simple events Motion detection (human and vehicle targets classification), video tampering alarm, exception
Facial recognition Yes

Deep learning function
Perimeter security
Line crossing detection, intrusion detection
Supports human and vehicle target classification

Home
Connection methods Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
Camera material
Upper cover and base: metal
Bubble: plastic
Camera dimensions Ø153.3 mm × 111.6 mm (Ø6.1" × 4.4")
Package dimensions 244 mm × 174 mm × 173 mm (9.7" × 6.9" × 6.9")
Camera weight Approx. 885 g (1.9 lb.)
Weight with packaging Approx. 1479 g (3.1 lb.)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Start-up and operating conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Online menu languages
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Hardware version V5.5.113
Software recovery Yes
Main functions Anti-flicker, heartbeat, password reset via email, pixel counter
Power consumption and current
12 VDC, 0.88 A, max. 10.5 W
PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W
Energy source
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Energy interface Ø5.5 mm coaxial power plug

Approvals
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Environmental protection CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Weight

1.056 kg
