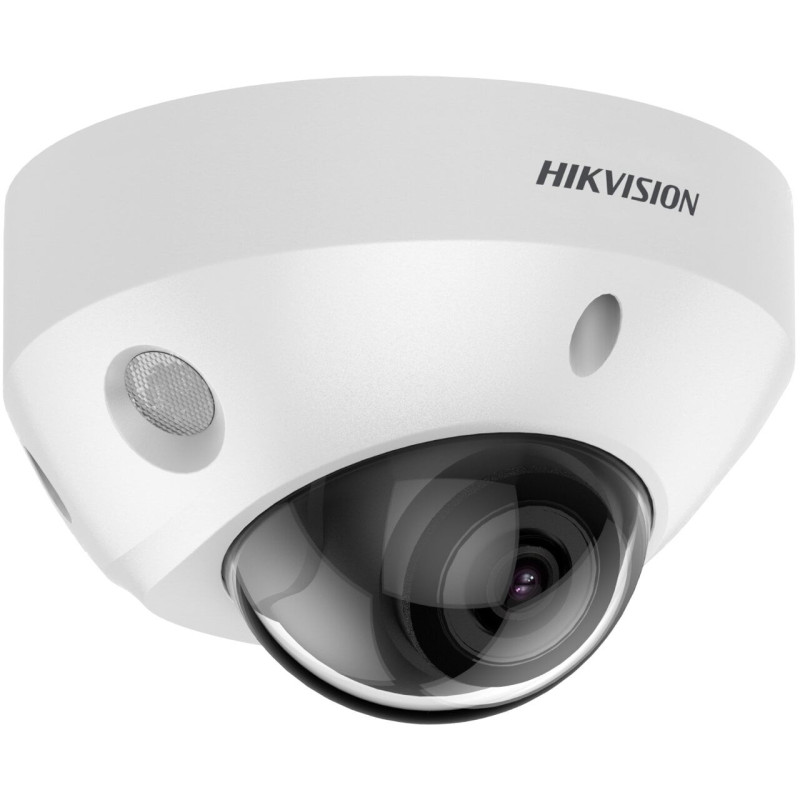

Hikvision dome DS-2CD2583G2-IS F2.8 (white, 8 MP, 30m IR, AcuSense)
Product reference:
26-6931847137663
- MP (MegaPixel): 8 MP
- Lens: 2.8 mm, horizontal FOV: 106°
- Technology: AcuSense
- Built-in microphone: No, there is a microphone input
- Night illumination: 30 m. IR
- microSD slot: Yes, 512GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1280ZJ-DM46
- Outdoor/Indoor: Outdoor
Hikvision dome DS-2CD2583G2-IS F2.8 (white, 8 MP, 30m IR, AcuSense)
Product reference:
26-6931847137663
- MP (MegaPixel): 8 MP
- Lens: 2.8 mm, horizontal FOV: 106°
- Technology: AcuSense
- Built-in microphone: No, there is a microphone input
- Night illumination: 30 m. IR
- microSD slot: Yes, 512GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1280ZJ-DM46
- Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Camera
- Sensor 1/2.8″ Progressive Scan CMOS
- Max resolution 3840 × 2160
- Min. lighting Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter speed 1/3 s to 1/100,000 s
- Day Night IR cut filter
- Changing the angle Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens type Fixed focal lens, 2.8 and 4 mm optional
- FOV
2.8 mm, horizontal FOV 106.4°, vertical FOV 58.4°, diagonal FOV 124.8°
4 mm, horizontal FOV 87.6°, vertical FOV 44.4°, diagonal FOV 104.9°
- Lens installation M12
- Iris type Fixed
- Aperture F1.6
- Depth of field
2.8 mm: 1.4 m to ∞
4 mm: 2.1 m to ∞
- DOROUS
- DOROUS
2.8mm:
D: 88 m
O: 35 m
R: 18 m
I: 9 m
4mm:
D: 118 m
O: 47 m
R: 24 m
I: 12 m
- Lighting
- Additional lighting type AND
- Additional lighting range Up to 30 m
- Smart additional lighting Yes
- IR wavelength 850 nm
- Image
- Main stream
50Hz:
20fps (3840×2160)
25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
60Hz:
20fps (3840×2160)
30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
- Secondary flow
50Hz: 25fps (640×480, 640×360)
60Hz: 30fps (640×480, 640×360)
- Third stream
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
- Image compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video bit rate 32 Kbps to 16 Mbps
- H.264 type Baseline Profile/Main Profile/High Profile
- H.265 type Main Profile
- Bit rate control CBR/VBR
- SVC H.264 and H.265 encoding
- ROI 1 fixed region for main stream and sub-stream
- Sound
- Audio compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Audio sampling frequency 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Removing extraneous sounds Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
- Live video viewing Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Connection
- Internal memory NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Customer iVMS-4200, Hik-Connect, Hik-Central
- Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Photo
- Photo parameters converter Yes
- Photo settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night mode Day, Night, Auto, Schedule
- WDR 120 dB
- SNR ≥ 52 dB
- Photo beautification BLC, HLC, 3D DNA
- Interface
- Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Internal memory Built-in memory card slot, support microSD card, up to 256 GB
- Built-in microphone Yes
- Sound
-IS:
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm
-IS:
1 input, 1 output (max. 12 VDC, 20 mA)
- Reboot button Yes
- Features
- Main functions Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart features Line crossing detection, intrusion detection
- Interface Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
- Smart features
- Facial recognition Yes
- Home
- Power supply
12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: (802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
- Size Ø113.6 mm × 72.6 mm (Ø 4.5" × 2.9")
- Package size 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
- Approx. 400 g (0.9 lb.)
- Weight with packaging Approx. 635 g (1.4 lb.)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Main functions Anti-flicker, heartbeat, password reset via e-mail, pixel counter
- Approvals
- EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
- Security
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
- Environmental protection
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
- Protection
IP67 (IEC 60529-2013)
IK10 (IEC 62262:2002)
| Manufacturer code | KIPDS2CD2583G2ISF2.8 |
| Manufacturer | Hikvision |
| Weight | 0.487 kg |
