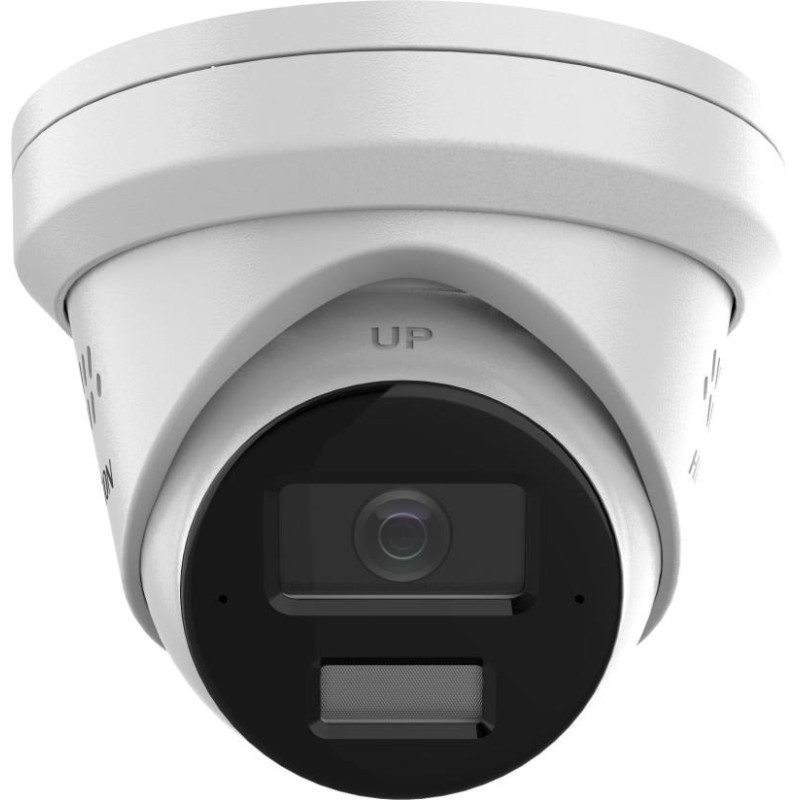

Hikvision dome DS-2CD2383G2-LI2U F2.8 (white, 8 MP, 30 m IR+LED, AcuSense)
Product reference: 26-6942160459264
  • High quality image with 8 MP resolution
  • Technology: AcuSense
  • Smart hybrid light: integrates IR and white lights, 4 auxiliary lighting modes
  • -2U: Integrated dual microphone array for real-time high-quality audio protection
  • Clear image against strong backlight thanks to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)

Hikvision dome DS-2CD2383G2-LI2U F2.8 (white, 8 MP, 30 m IR+LED, AcuSense)

Product reference: 26-6942160459264
  • High quality image with 8 MP resolution
  • Technology: AcuSense
  • Smart hybrid light: integrates IR and white lights, 4 auxiliary lighting modes
  • -2U: Integrated dual microphone array for real-time high-quality audio protection
  • Clear image against strong backlight thanks to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
15958
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP67: IEC 60529-2013
  • Security CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
  • Sound
  • Audio bit rate -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio sampling frequency -2U: 8kHz/16kHz/32kHz/48kHz
  • Removing extraneous sounds -2U: Yes
  • Camera
  • Changing the angle Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • DayNight IR cut filter
  • Image sensor 1/2.8" Progressive Scan CMOS
  • Highest resolution 3840 × 2160
  • Minimal lighting Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
  • Shutter speed 1/3 s to 1/100,000 s
  • DOROUS
  • DOROUS 2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m
  • Smart features
  • Perimeter Protection Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)
  • Features
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
  • Smart features Face detection
  • General information
  • Dimensions Ø127.3mm × 96.3mm (Ø5.0" × 3.8")
  • Main functions Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Material Metal
  • Package size 150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5")
  • Power 12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
  • Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Weight Approx. 515 g (1.1 lb.)
  • Weight with packaging Approx. 755 g (1.7 lb.)
  • Lighting
  • IR wavelength 850 nm
  • Smart additional lighting Yes
  • Additional lighting range Up to 30 m
  • Additional lighting type IR,White Light
  • Photo
  • Day/night switch Day, Night, Auto, Schedule
  • Photo beautification BLC,HLC,3D DNA
  • Photo parameters converter Yes
  • Image settings Rotate mode
  • Privacy mask 8 programmable polygon privacy masks
  • SNR ≥ 52 dB
  • Wide Dynamic Range (WDR) 120 dB
  • Interface
  • Sound Built-in Microphone: -2U: Arrayed dual-microphone
  • Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reboot button Yes
  • Lens
  • Aperture F1.6
  • Depth of field 2.8 mm: 1.7 m to ∞4 mm: 2.6 m to ∞
  • Focal Length FOV 2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127°4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105°
  • Iris type Fixed
  • Lens mount M12
  • Lens type Fixed focal lens, 2.8 and 4 mm optional
  • Network
  • API ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
  • Customer iVMS-4200, Hik-Connect, Hik-Central
  • Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
  • Live video viewing Up to 6 channels
  • User/port Up to 32 users3 user levels: administrator, operator, and user
  • Browser Plug-in required live view: IE 11,Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
  • Image
  • Bit rate control CBR,VBR
  • H.264 type Baseline Profile, Main Profile, High Profile
  • H.265 type Main Profile
  • Main stream 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920×1080, 1280×720)
  • Region of Interest (ROI) 1 fixed region for main stream and sub-stream
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Secondary flow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Target cropping Yes
  • Third stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
  • Video bit rate 32 Kbps to 16 Mbps
  • Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.

Weight0.623 kg
