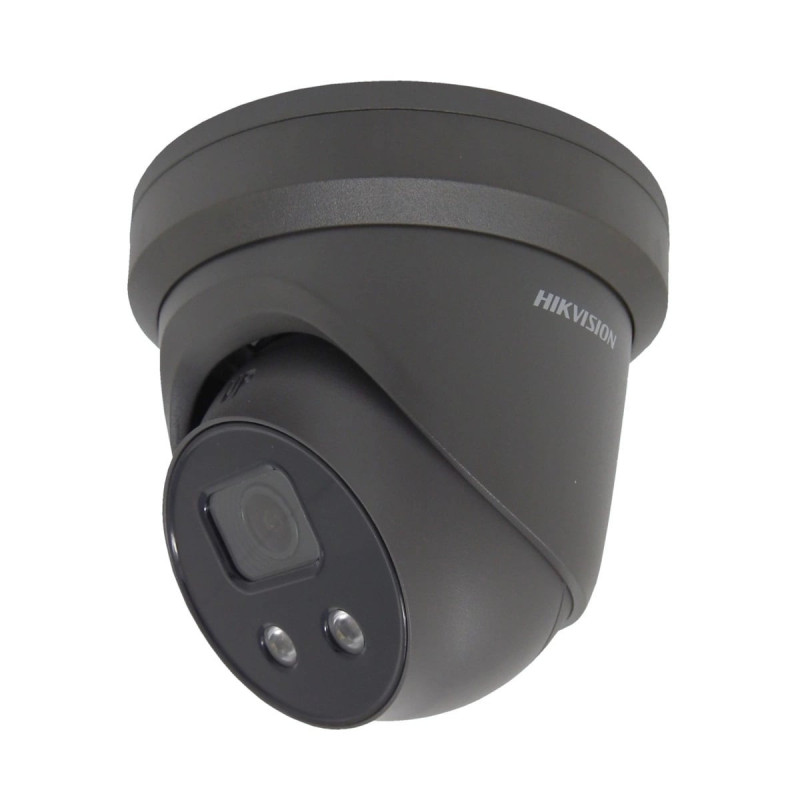

Hikvision dome DS-2CD2346G2-IU F2.8 (Black, 4 MP, 30M IR AcuSense)
Product reference: 26-6941264095163
  • MP (MegaPixel): 4 MP
  • Lens: 2.8 mm, horizontal FOV: 103°
  • Technology: AcuSense
  • Built-in microphone: Yes
  • Night illumination: 30 m. IR
  • microSD slot: Yes, 512GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1280ZJ-DM21
  • Outdoor/Indoor: Outdoor
Hikvision dome DS-2CD2346G2-IU F2.8 (Black, 4 MP, 30M IR AcuSense)

Hikvision dome DS-2CD2346G2-IU F2.8 (Black, 4 MP, 30M IR AcuSense)

Product reference: 26-6941264095163
  • MP (MegaPixel): 4 MP
  • Lens: 2.8 mm, horizontal FOV: 103°
  • Technology: AcuSense
  • Built-in microphone: Yes
  • Night illumination: 30 m. IR
  • microSD slot: Yes, 512GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1280ZJ-DM21
  • Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
15462 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Image sensor1/2.7" Progressive Scan CMOS
Minimal lightingColor: 0.003 Lux @ (F1.4, AGC on)
Aperture shutter speedFrom 1/3 s to 1/100,000 s
Slow shutterYes
Focusing distance2.8 mm
FocusingFixed
ApertureF1.4
Lens and viewing angleHorizontal: 103°, vertical: 55°, diagonal: 123°
Lens mountM12
Day/nightICR
DNA3D DNA
Wide Dynamic Range (WDR)120 dB
Rotation adjustmentTilt: 0° to 360°, Elevation: 0° to 75°, Swivel: 0° to 360°
Video compressionMain stream: H.265/H.264
Secondary stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264Home profile / Main profile / High profile
H.264+Mainstream support
H.265Main profile
H.265+Mainstream support
Video bit rate32 Kbps to 16 Mbps
Speed ​​controlCBR/VBR
Scalable Video Coding (SVC)Yes
Maximum resolution2688 × 1520
Main stream50Hz:
20fps (2592 × 1944)
25fps (2688×1520, 2304×1296, 1920×1080, 1280×720)
60Hz:
20fps (2592 × 1944)
30fps (2688×1520, 2304×1296, 1920×1080, 1280×720)
Secondary flow50Hz: 25fps (640×480, 640×360, 320×240)
60Hz: 30fps (640×480, 640×360, 320×240)
Third stream50Hz: 25fps (1280×720, 640×480, 640×360, 360×240)
60Hz: 30fps (1280×720, 640×480, 640×360, 360×240)
Image enhancementBLC, HLC, 3D DNA
Image settingsRotation mode, saturation, brightness, contrast, sharpness, gain, white balance are adjustable via client software or web browser
Region of Interest (ROI)Supports 1 fixed area for all streams
Day/night switchingDay/night/automatic/schedule
Network hostingSupports microSD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR
Announcement of warning signalsNetwork disconnection, IP address conflict, unauthorized login, HDD full, HDD error
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth flowYes
General functionsOne-key reset, anti-filter
Software versionV5.5.72
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Filtering ambient noiseYes
Audio sampling frequency8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio compressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio bit rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
Simultaneous live viewUp to 6 channels
UsersUp to 32 users.
3 user levels: administrator, operator and user
ProgramsiVMS-4200, Hik-Connect, Hik-Central
Internet browserLive View required for connection: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Live View Plugin required: Chrome 57.0+, Firefox 52.0 and above
Communication interface1 RJ45 10M/100M self-adaptive Ethernet port
Audio interfaceBuilt-in microphone
Internal memoryIntegrated micro SD slot, up to 256 GB
Reboot buttonYes
Face detectionYes
Behavioral analysisLine crossing detection, intrusion detection, area entry detection, area exit detection, false alarm filter based on target classification.
Start-up and operating conditions-30°C to 60°C, humidity not exceeding 95% (non-condensing)
Power supply12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3at, Class 3)
Energy consumption 12 VDC, 0.48 A, Max: 5.8 W
PoE: ( 802.3at, 36V to 57V ) , 0.19A to 0.12A, Max: 6.8W
IR illuminationUp to 30 m
Wavelength850 nm
Smart supplement lightingYes
ProtectionIP66
HousingMetal, except for the trim ring
DimensionsCamera: Φ138.3×126.3mm
Packaging: 170 × 170 × 150 mm
WeightCamera: 770g
Packaging: 1073 g
Connection methodUpload to NAS/memory card, notifications to monitoring center, triggered recordings
Web client language33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General functionAnti-flicker, mirror, privacy masks, flash log, password reset via email, pixel counter
Software resetYes
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN50130-4:2011 + A1:2014); RCM (AS/NZS CISPR 32:2015); IC (ICES-003:6th Edition, 2016); KC (KN 32:2015, KN 35:2015)
SecurityLU (UL 60950-1); CB (IEC 60950-1: 2005 + Amendment 1: 2009 + 2:13); CE-LVD (EN 60950-1: 2005 + Pack 1: 2009 + Pack 2: 2013); BIS (IS 13252 (Part 1): 2010 + A1: 2013 + A2: 2015); LOA (IEC / EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Accessibility (Regulation (EC) No. 1907/2006)

Weight0.812 kg
