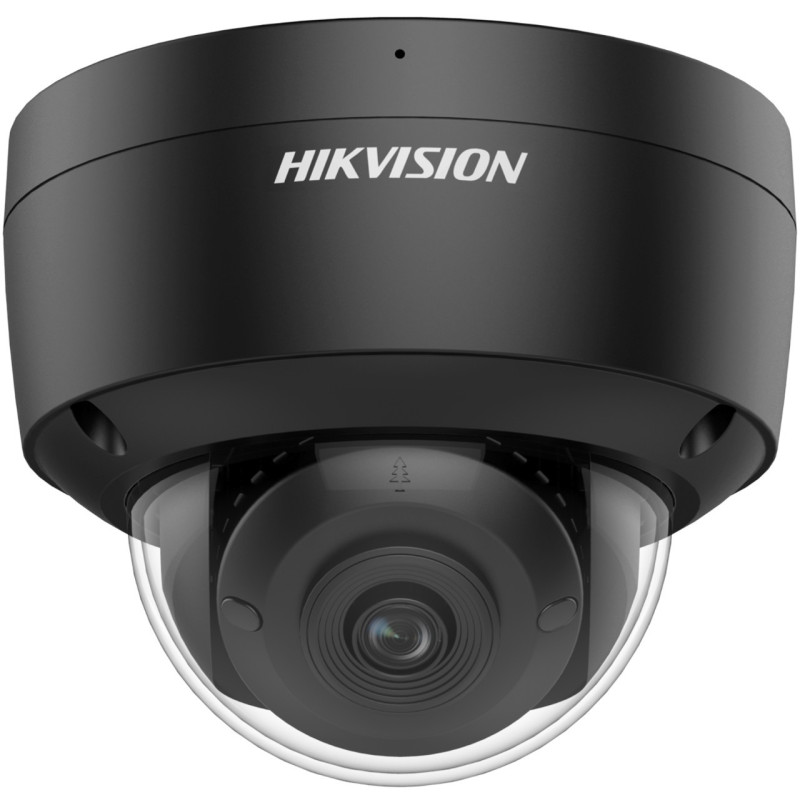

Hikvision dome DS-2CD2147G2-SU F2.8 (black, 4 MP, ColorVu)

Product reference: 26-6941264095132

Hikvision dome DS-2CD2147G2-SU F2.8 (black, 4 MP, ColorVu)

Product reference: 26-6941264095132

You have 3 products in compare list, please remove someone and try again

Add to compare

17205 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Lentils
Lens type Fixed focal lens, 2.8 and 4 mm optional
Focal Length FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
Lens mounting M16
Iris type Fixed
Aperture F1.0

DOROUS
DOROUS
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Main stream
50Hz: 25fps (2688×1520, 1920×1080, 1280×720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Auxiliary flow
50Hz: 25fps (640×480, 640×360)
60Hz: 30fps (640×480, 640×360)
Tertiary flow
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Image compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video bit rate 32 Kbps to 8 Mbps
H.264 type Baseline Profile/Main Profile/High Profile
H.265 type Main Profile
Bit rate control CBR/VBR
SVC H.264 and H.265 encoding
ROI 1 fixed region for main stream and sub-stream

Sound
Audio compression - WITH: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio bit rate -SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio sampling rate -SU: 8kHz/16kHz/32kHz/44.1kHz/48kHz
Ambient noise filtering -SU: Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Live video viewing Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/broadcaster Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Customer iVMS-4200, Hik-Connect, Hik-Central
Internet browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Photos
Changing photo settings Yes
Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Wide Dynamic Range (WDR) 130 dB
SNR ≥ 52 dB
Photo enhancement BLC, HLC, 3D DNA

Interfaces
Ethernet interfaces 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal interfaces Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
Built-in microphone -SU: Yes
Sound
-SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Warning signal -SU: 1 input, 1 output (max. 12 VDC, 30 mA)
Playback button Yes

Events
Simple events Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart events
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
Connection
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
-SU: audible warning

Home
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
Dimensions Ø121.4 mm × 100.1 mm (Ø4.8" × 3.9")
Package dimensions 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 580 g (1.2 lb.)
Weight with packaging Approx. 820 g (1.6 lb.)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Start-up and operating conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Main functions Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approvals
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016)
Security
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
Environmental protection CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Weight

0.612 kg
