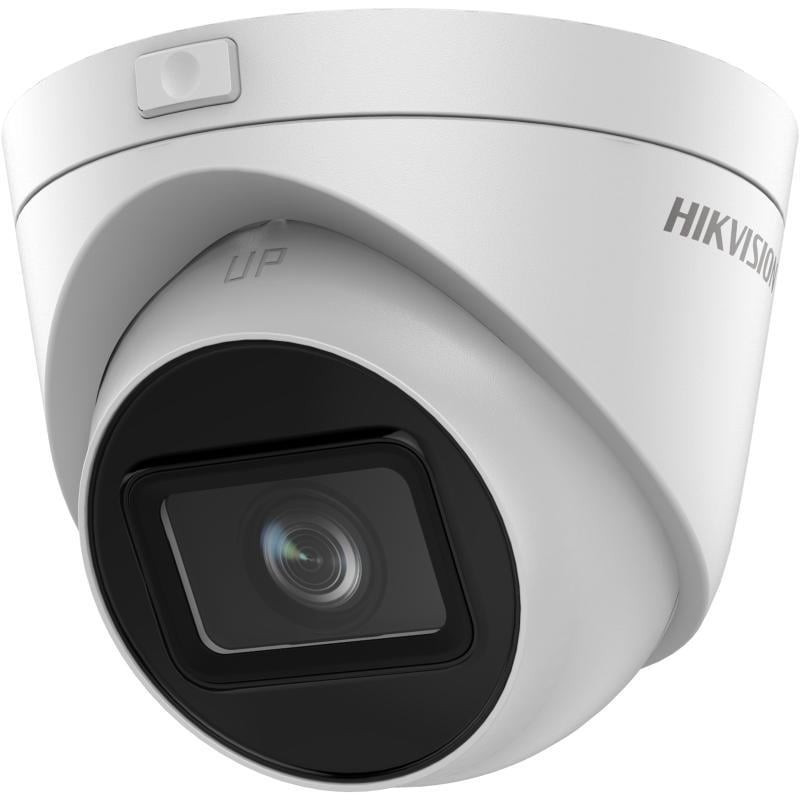

Hikvision dome DS-2CD1H43G2-IZ F2.8-12 (white, 4 MP, 30 m IR)
Product reference:
26-6931847181864
- MP (MegaPixel): 4 MP
- Lens: 2.8 - 12 mm, horizontal FOV: 95°-29°
- Built-in microphone: No
- Night illumination: 30 m. IR
- microSD slot: Yes, 256GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1281ZJ-M
- Outdoor/Indoor: Outdoor
Hikvision dome DS-2CD1H43G2-IZ F2.8-12 (white, 4 MP, 30 m IR)
Product reference:
26-6931847181864
- MP (MegaPixel): 4 MP
- Lens: 2.8 - 12 mm, horizontal FOV: 95°-29°
- Built-in microphone: No
- Night illumination: 30 m. IR
- microSD slot: Yes, 256GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1281ZJ-M
- Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Camera
- Sensor 1/3" Progressive Scan CMOS
- Max resolution 2560 × 1440
- Min. lighting Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter speed 1/3 s to 1/100,000 s
- Day Night IR cut filter
- Changing the angle Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens type Varifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length FOV 2.8 to 12 mm, horizontal FOV 95.9° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.7° to 33.5°
- Lens installation Ø14
- Iris type Fixed
- Aperture F1.6
- Lighting
- Additional lighting type AND
- Additional lighting range Up to 30 m
- IR wavelength 850 nm
- Smart additional lighting Yes
- Image
- Main stream
50Hz:
20fps (2560×1440)
25 fps (1920×1080, 1280×720)
60Hz:
20fps (2560×1440)
24 fps (1920×1080, 1280×720)
- Secondary flow
50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 24fps (1280×720, 640×480, 640×360)
- Image compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video bit rate 32 Kbps to 8 Mbps
- H.264 type Baseline Profile, Main Profile, High Profile
- H.265 type Main Profile
- Region of Interest (ROI) 1 fixed region(s) for main stream
- Sound
- Audio compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio bit rate -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio sampling frequency -S: 8kHz/16kHz
- Removing extraneous sounds -S: Yes
- Internet
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- Live video viewing Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Customer iVMS-4200,Hik-Connect
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
- Photo
- Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night mode Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR) 120 dB
- Photo beautification BLC,HLC,3D DNA
- Interface
- Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Internal memory
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Sound
-S: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
-S: 1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm -S: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA)
- Reboot button Yes
- Features
- Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Interface
Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S)
- Home
- System parameters
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10W
- Size
Ø129.4 mm × 116.4 mm (Ø5.1 × 4.6")"
- Package size 170mm × 170mm × 150mm (6.7" × 6.7" × 5.9")
- Weight Approx. 595 g (1.3 lb.)
- Weight with packaging Approx. 880 g (1.9 lb.)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language English, Ukrainian
- Main functions Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark
- Approvals
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Security
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environmental protection
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP66: IEC 60529-2013
| Weight | 0.597 kg |
