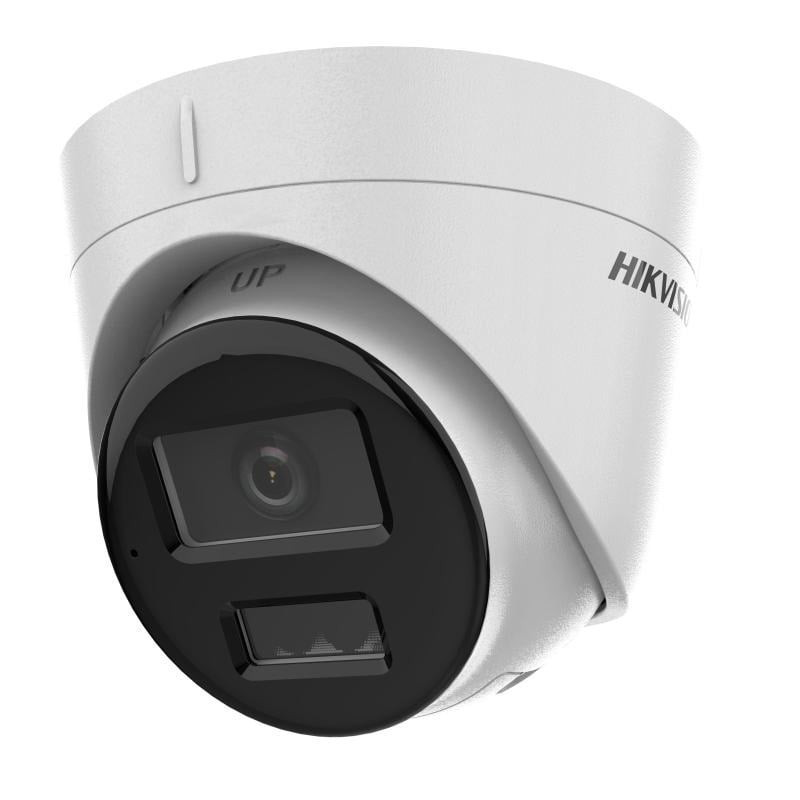

Hikvision dome DS-2CD1343G2-LIU F4 (white, 4 MP, 30 m. IR + LED)
Product reference:
26-6931847188993
- Resolution: 4 MP high quality image
- Supports people and vehicle detection
- Smart Hybrid Light with long range
- Built-in microphone for audio recording
- Efficient H.265+ video compression technology
- Supports memory card up to 512 GB (optional)
- Waterproof and dustproof (IP67)
Hikvision dome DS-2CD1343G2-LIU F4 (white, 4 MP, 30 m. IR + LED)
Product reference:
26-6931847188993
- Resolution: 4 MP high quality image
- Supports people and vehicle detection
- Smart Hybrid Light with long range
- Built-in microphone for audio recording
- Efficient H.265+ video compression technology
- Supports memory card up to 512 GB (optional)
- Waterproof and dustproof (IP67)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Approvals
- EMC FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
- Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
- Security UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Sound
- Audio bit rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio sampling frequency 8kHz/16kHz
- Audio type Mono sound
- Removing extraneous sounds Yes
- Camera
- Changing the angle Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- DayNight IR cut filter
- Image sensor 1/3" Progressive Scan CMOS
- Highest resolution 2560 × 1440
- Minimal lighting Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter speed 1/3 s to 1/100,000 s
- DOROUS
- DOROUS 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Features
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Interface Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
- General information
- Dimensions Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
- Main functions Heartbeat, anti-banding, mirror, password protection, password reset via email
- Language English, Ukrainian
- Material Metal Plastic
- Package size 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Power supply 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
- Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Weight Approx. 340 g (0.7 lb.)
- Weight with packaging Approx. 560 g (1.2 lb.)
- Lighting
- IR wavelength 850 nm
- Smart additional lighting Yes
- Additional lighting range Up to 30 m
- Additional lighting type IR,White Light
- Photo
- Day/night switch Day, Night, Auto, Schedule
- Photo beautification BLC,HLC,3D DNA
- Image settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy mask 4 programmable polygon privacy masks
- SNR ≥ 52 dB
- Wide Dynamic Range (WDR) 120 dB
- Interface
- Built-in microphone Yes
- Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Internal memory -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reboot button -F: Yes
- Lens
- Aperture F1.6
- Focal Length FOV 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
- Iris type Fixed
- Lens mount M12
- Lens type Fixed focal lens, 2.8 and 4 mm optional
- Network
- API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
- Customer iVMS-4200,Hik-Connect
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- Safety Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Live video viewing Up to 6 channels
- User/port Up to 32 users3 user levels: administrator, operator, and user
- Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Bit rate control CBR,VBR
- H.264 type Baseline Profile, Main Profile, High Profile
- H.265 type Main Profile
- Main stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
- Region of Interest (ROI) 1 fixed region for main stream
- Secondary flow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video bit rate 32 Kbps to 8 Mbps
- Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
