- In stock.

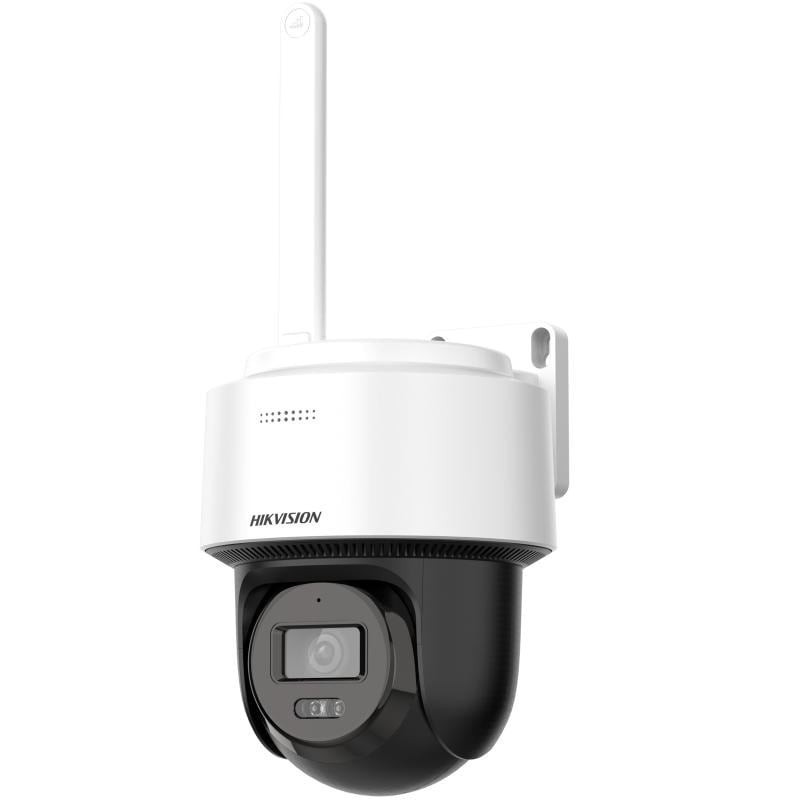

Hikvision controlled 4G PT camera DS-2DE2C400MWG-4G
Product reference:
26-6942160478531
- Image quality: 4 MP resolution
- Functions: People and vehicle detection
- Data transfer: 4G LTE support
- Audio: Built-in microphone and speaker, two-way audio support
- Lighting: Smart hybrid light, operating range up to 30 meters
- Memory: Supports built-in memory up to 512 GB (SD card slot)
- Resistance: Water and dust resistant (IP66)
Hikvision controlled 4G PT camera DS-2DE2C400MWG-4G
Product reference:
26-6942160478531
- Image quality: 4 MP resolution
- Functions: People and vehicle detection
- Data transfer: 4G LTE support
- Audio: Built-in microphone and speaker, two-way audio support
- Lighting: Smart hybrid light, operating range up to 30 meters
- Memory: Supports built-in memory up to 512 GB (SD card slot)
- Resistance: Water and dust resistant (IP66)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Camera
- Sensor 1/2.7" Progressive Scan CMOS
- Max resolution 2560 × 1440
- Shutter speed 1/3 s to 1/100,000 s
- Min. lighting Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- DayNight IR cut filter
- Lens
- Lens type Fixed focal lens, 2.8 and 4 mm optional
- Focal Length FOV 2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°
- Lens installation M12
- Iris type Fixed
- Aperture F1.6
- PTZ
- Movement Range (Pan) 0° to 345°
- Movement Range (Tilt) 0° to 80°
- Pan speed Up to 25°/s
- Tilt speed Up to 20°/s
- DOROUS
- DOROUS 2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m
- Lighting
- Additional lighting type IR,White Light
- Additional lighting range Up to 30 m
- Smart additional lighting Yes
- IR wavelength 850 nm
- Network
- API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
- Image
- Main stream 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Secondary flow 50 Hz: 20 fps (768 x 432) 60 Hz: 20 fps (768 x 432)
- Image compression Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
- Video bit rate 32 Kbps to 8 Mbps
- H.264 type Baseline Profile, Main Profile, High Profile
- H.265 type Main Profile
- Bit rate control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region for main stream
- Audio
- Audio type Mono sound
- Audio sampling frequency 8kHz/16kHz
- Removing extraneous sounds Yes
- Audio compression G.711/AAC-LC
- Audio bit rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
- Network
- Security Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Live video viewing Up to 6 channels
- Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP
- User/Host Up to 32 users3 user levels: administrator, operator, and user
- Customer iVMS-4200,Hik-Connect
- Browser Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+
- Mobile Communication
- Standard LTE-FDD,LTE-TDD
- Frequency EU:LTE-FDD: B1/3/5/7/8/20/28IN:LTE-FDD: B1/3/5/8LTE-TDD: B34/38/39/40/41LA:LTE-FDD: B2/3/4/5/7/8/28/66NA:LTE-FDD: B2/4/5/12/13/17/66/71
- Uplink and Downlink Data Rate EU: uplink: 5.1 Mbps, downlink: 10.3 MbpsIN: uplink: 5.1 Mbps, downlink: 10.3 MbpsLA: uplink: 5.1 Mbps, downlink: 10.3 MbpsNA: uplink: 50 Mbps, downlink: 150 Mbps
- SIM Card Type Nano-SIM
- Photo
- Wide Dynamic Range (WDR) Digital WDR
- SNR ≥ 52 dB
- Day/Night mode Day, Night, Auto, Schedule
- Photo beautification BLC,HLC,3D DNA
- Photo settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy mask 4 programmable polygon privacy masks
- Interface
- Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in microphone 1 built-in microphone
- Built-in speaker Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
- Reboot button Yes
- Features
- Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Interface Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, auto-tracking lite
- Home
- Size 131.9 mm × 164 mm × 312.6 mm (5.19" × 6.46" × 12.31")131.9 mm × 164 mm × 332.6 mm (5.19" × 6.46" × 13.10")
- Home
- Power supply 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, *A switching adapter is included in the package.
- Material Plastic
- Package size 224 mm × 178 mm × 230 mm (8.82" × 7.01" × 9.06")
- Weight Approx. 600 g (1.32 lb.)
- Weight with packaging Approx. 900 g (1.98 lb.)
- Storage conditions -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
- Working conditions -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
- Language English, Ukrainian
- Main functions Heartbeat, anti-banding, mirror, password protection, password reset via email
- Approvals
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
- Security CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP66: IEC 60529-2013
| Weight | 0.691 kg |
