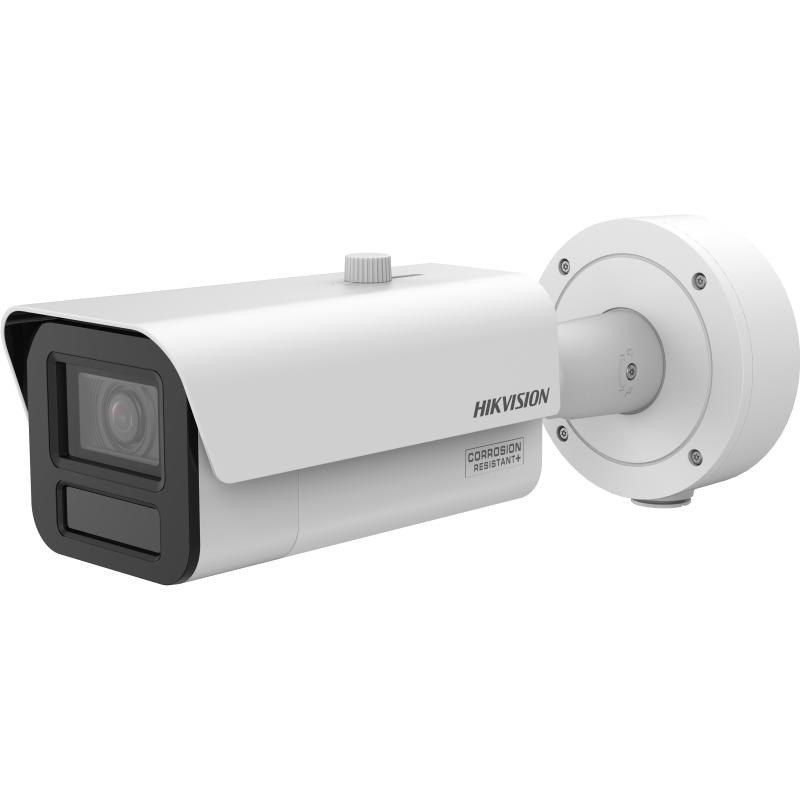

Hikvision Bullet iDS-2CD7A46G2 / P-IZHS F8-32 (white, 4MP, IR 100 m, LPR, DarkFighter 2.0)
Product reference: 26-6942160499093
  • High quality image with 4 MP resolution
  • Excellent low-light performance thanks to DarkFighter 2.0 technology
  • Clear image against strong background light thanks to 150 dB AWDR technology
  • Efficient H.265+ compression technology saves bandwidth and memory
  • 5 streams for various applications
  • Water and dust resistance (IP67), vandalism resistance (IK10) and corrosion resistance (NEMA 4X, optional)
  • High frame rate - up to 2MP@120fps and 4MP@60fps
  • Integrated heater ensures clear vision in rainy or snowy weather
  • Built-in G-sensor for vibration detection
  • Integrated power meter for historical energy statistics
  • License plate recognition and vehicle attribute recognition
Hikvision Bullet iDS-2CD7A46G2 / P-IZHS F8-32 (white, 4MP, IR 100 m, LPR, DarkFighter 2.0)

Hikvision Bullet iDS-2CD7A46G2 / P-IZHS F8-32 (white, 4MP, IR 100 m, LPR, DarkFighter 2.0)

Product reference: 26-6942160499093
  • High quality image with 4 MP resolution
  • Excellent low-light performance thanks to DarkFighter 2.0 technology
  • Clear image against strong background light thanks to 150 dB AWDR technology
  • Efficient H.265+ compression technology saves bandwidth and memory
  • 5 streams for various applications
  • Water and dust resistance (IP67), vandalism resistance (IK10) and corrosion resistance (NEMA 4X, optional)
  • High frame rate - up to 2MP@120fps and 4MP@60fps
  • Integrated heater ensures clear vision in rainy or snowy weather
  • Built-in G-sensor for vibration detection
  • Integrated power meter for historical energy statistics
  • License plate recognition and vehicle attribute recognition
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
63549 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Corrosion protection NO
  • Automation EN50121-4
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Other PVC FREE
  • Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002
  • Security CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
  • Sound
  • Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio sampling frequency 8kHz/16kHz/32kHz/48kHz
  • Audio type Mono sound
  • Removing extraneous sounds Yes
  • Camera
  • DayNight IR cut filter, Blue glass module (less ghost phenomenon)
  • Image sensor 1/1.8" Progressive Scan CMOS
  • Max resolution 2688 × 1520
  • Min. lighting Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
  • Shutter speed 1 s to 1/100,000 s
  • DOROUS
  • DOROUS Wide：2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 mTele:2.8 to 12 mm:D (Detect): 151.7 m, O (Observe): 60.2 m, R (Recognize): 30.3 m, I (Identify): 15.2 m8 to 32 mm:D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m
  • Smart features
  • Metadata Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering
  • Road traffic and vehicle detection Smart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate ≥98%Capture rate ≥99%Driving direction accuracy rate ≥98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
  • Features
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, video quality diagnosis, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), vibration detection
  • Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
  • Smart features scene change detection, audio exception detection, defocus detection
  • General
  • Dew removal Yes
  • Device Management Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
  • Dimensions With -Y: Ø140 mm × 377.4 mm (Ø5.5" × 14.9"), Without -Y: Ø144.1 mm × 374.7 mm (Ø5.7" × 14.8")
  • Main functions Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log
  • Heater Yes
  • Integrated Connector Panel -Y: No
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Material Aluminum alloy body
  • Package size 425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
  • Energy three-core terminal block, 12 VDC ± 20%, 1.88 A, max. 22.56 W, 24 VAC ± 20%, 1.57 A, max. 21.5 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W
  • Working conditions -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
  • Storage conditions -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
  • Weight Approx. 2170 g (4.78 lb.)
  • Weight with packaging Approx. 3364 g (7.42 lb.)
  • Lighting
  • IR wavelength 850 nm
  • Smart additional lighting Yes
  • Additional lighting range 2.8 to 12 mm: Monitoring: 60 m; 8 to 32 mm: Monitoring: 100 m
  • Additional lighting type AND
  • Photo
  • Day/Night mode Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
  • Photo beautification BLC, HLC, 3D DNR, Distortion Correction, Defog
  • Photo parameters converter Yes
  • Image settings Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Image stabilization EIS
  • Photo overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Privacy mask 8 programmable polygon privacy masks
  • SNR ≥ 52 dB
  • Wide Dynamic Range (WDR) 150dB
  • Interface
  • Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
  • Sound 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
  • Web interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • Power NO
  • RS-485 NO
  • Reboot button Yes
  • Video output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
  • Wiegand NO
  • Lens
  • Aperture 2.8 to 12mm: F1.38 to F2.53, 8 to 32mm: F1.7 to F1.73
  • Focal Length FOV 2.8 to 12 mm, horizontal FOV 106° to 41.8°, vertical FOV 55.4° to 23.6°, diagonal FOV 130° to 48.1°8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°
  • Focusing Auto,Semi-auto,Manual
  • Iris type P-iris
  • Mobile Communication
  • Frequency NO
  • SIM Card Type NO
  • Standard NO
  • Network
  • API ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
  • Customer iVMS-4200, Hik-Connect, Hik-Central
  • Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
  • Live video viewing Up to 20 channels
  • User/port Up to 32 users3 user levels: administrator, operator, and user
  • Browser Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • Bit rate control CBR,VBR
  • Fifth stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
  • Fourth stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
  • H.264 type Baseline Profile, Main Profile, High Profile
  • H.265 type Main Profile
  • Main stream Monitoring mode:50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080)60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080)*High frame rate is supported under monitoring mode only.smart mode:50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720)60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720)
  • Region of Interest (ROI) 4 fixed regions for each stream
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Secondary flow 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
  • Target cropping Yes
  • Third stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video bit rate 32 Kbps to 8 Mbps
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG
  • e-PTZ Support Patrol and Auto Tracking settings

Weight2.684 kg
