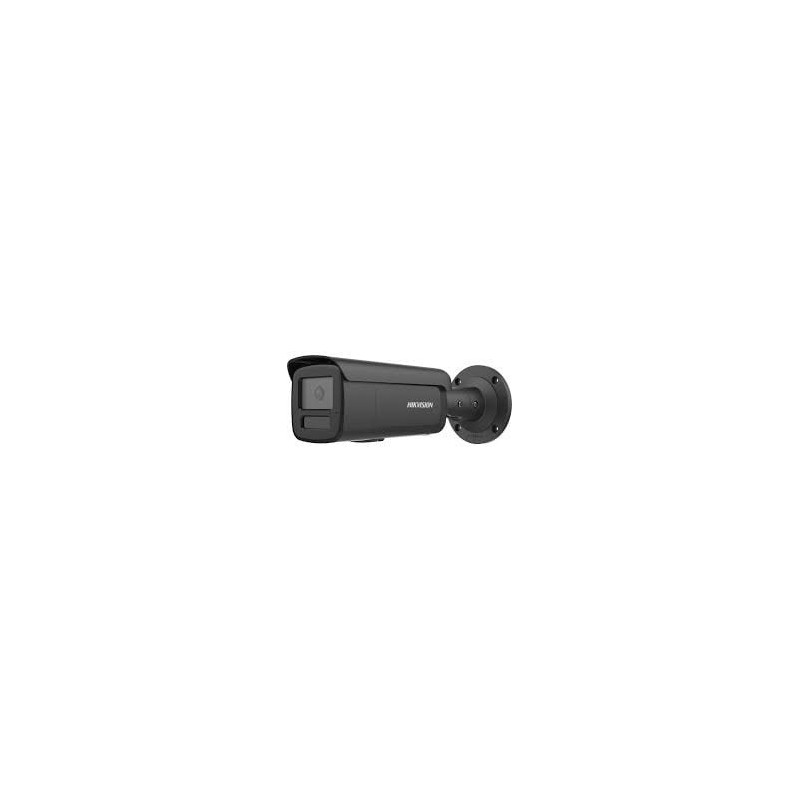

Hikvision bullet DS-2CD2T86G2H-IS2U / SL F2.8 (Black, 8 MP, 60 IR, AcuSense, DarkFighter)

Product reference: 26-6942160482361

Hikvision bullet DS-2CD2T86G2H-IS2U / SL F2.8 (Black, 8 MP, 60 IR, AcuSense, DarkFighter)

Product reference: 26-6942160482361

You have 3 products in compare list, please remove someone and try again

Add to compare

23287 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Approvals
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
Security UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017

Audio
Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio sampling frequency 8kHz/16kHz/32kHz/48kHz
Audio type Mono sound
Removing extraneous sounds Yes

DOROUS
DOROUS 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Smart features
Facial recognition Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Features
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Interface Upload to FTP/NAS/memory card, notify surveillance center, trigger capture, send email, trigger alarm output, trigger recording, audible warning, strobe light
Smart features Scene change detection

Home
Size 286.7 mm × 93.1 mm × 91.2 mm (11.3" × 3.7" × 3.6")
Flashing Light /SRB model: Red and Blue Light/SL model: White Light
Main functions Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Material Front cover: metal, body: metal, bracket: metal
Package size 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Power supply 12 VDC ± 25%, 1.4 A, max. 17 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Weight Approx. 1220 g (2.7 lb.)
Weight with packaging Approx. 1904 g (4.2 lb.)

Day/Night mode Day, Night, Auto, Schedule
Photo beautification BLC,HLC,3D DNA,Defog
Photo parameters converter Yes
Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy mask 4 programmable polygon privacy masks
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB

Interface
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Built-in microphone Yes, 2 built-in microphones
Built-in speaker Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reboot button Yes

Lens
Aperture F1.0
Depth of field 2.8 mm: 3.3 m to ∞4 mm: 3.8 m to ∞
Focal Length FOV 2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 130°4 mm, horizontal FOV 90°, vertical FOV 47°, diagonal FOV 111°
Iris type Fixed
Lens installation M16
Lens type Fixed focal lens, 2.8 and 4 mm optional

Network
API ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP
Customer iVMS-4200, Hik-Connect, Hik-Central
Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Live video viewing Up to 6 channels
User/port Up to 32 users3 user levels: administrator, operator, and user
Browser Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Bit rate control CBR,VBR
H.264 type Baseline Profile, Main Profile, High Profile
H.265 type Main Profile
Main stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160)30 fps (3200 × 1800, 2688 × 1520, 1920×1080, 1280×720)
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Secondary flow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video bit rate 32 Kbps to 16 Mbps
Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.

Weight

1.21 kg
