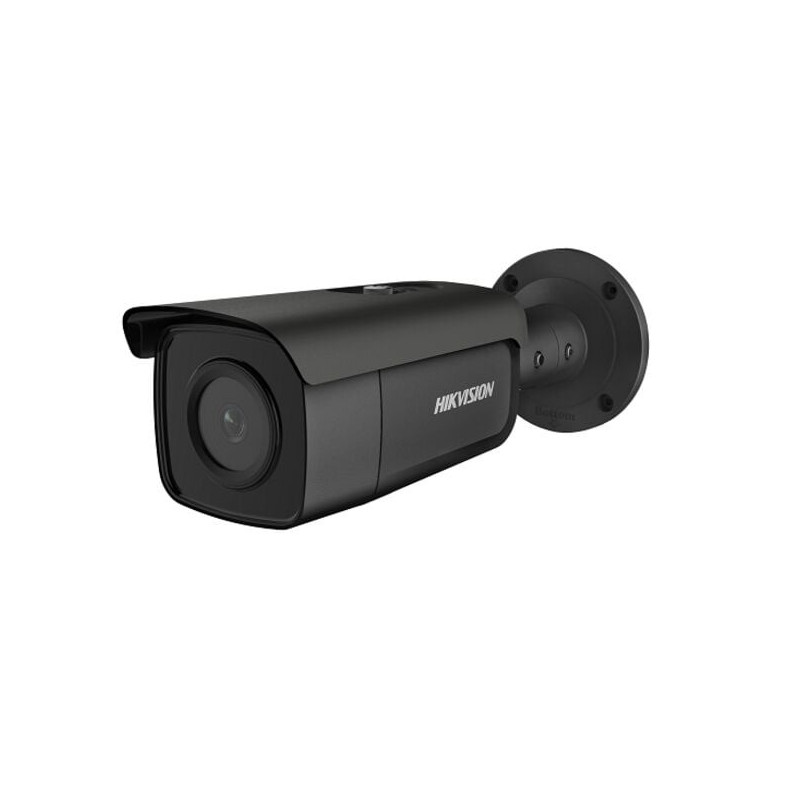

Hikvision bullet DS-2CD2T46G2-ISU / SL F2.8 (Black, 4 MP, 60 IR, AcuSense)

Product reference: 26-6942160465241

Hikvision bullet DS-2CD2T46G2-ISU / SL F2.8 (Black, 4 MP, 60 IR, AcuSense)

Product reference: 26-6942160465241

You have 3 products in compare list, please remove someone and try again

Add to compare

18327 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Lentils
Lens Range FOV
2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123°
4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98°
6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62°
Aperture F1.4
Lens installation M12

Videos
Max resolution 2592 × 1944
Main stream
50Hz: 20fps (2592×1944)
25fps (2688×1520, 2304×1296, 1920×1080, 1280×720)
60Hz: 20fps (2592×1944)
30fps (2688×1520, 2304×1296, 1920×1080, 1280×720)
Auxiliary flow
50Hz: 25fps (640×480, 640×360, 320×240)
60Hz: 30fps (640×480, 640×360, 320×240)
Tertiary flow
50Hz: 25fps (1280×720, 640×480, 640×360, 360×240)
60Hz: 30fps (1280×720, 640×480, 640×360, 360×240)
Image compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video bit rate 32 Kbps to 8 Mbps
H.264 type Baseline Profile/Main Profile/High Profile
H.265 type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit rate control CBR/VBR
SVC Yes
ROI 1 fixed region for each stream

Sound
Ambient noise filtering Yes
Audio sampling rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio bit rate 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)

Network
Live video viewing Up to 6 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, SNMP
Smooth flow Yes
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Protection Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
Network storage
microSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Customer iVMS-4200, Hik-Connect, Hik-Central
Internet browsers
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Day/Night switch Day, Night, Auto, Schedule
Image enhancement BLC, HLC, 3D DNA
Image parameter switch Yes
Image settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface
Alarm 1 input, 1 output (max. 24 VDC, 1 A or max. 24 VAC, 1 A)
Sound
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;
1 built-in speaker, 1 built-in microphone
Internal Memory Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware recovery Yes
Ethernet connection 1 RJ45 10M/100M self-adaptive Ethernet port

Deep learning function
Facial recognition Yes
Perimeter security Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Smart (Traditional algorithm)
Simple events Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection

Main
Connection method
Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning
*Note: External device is required.
Menu languages
33 languages:
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Main functions Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Software recovery Yes
Storage conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Start-up and operating conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Energy source 12 VDC ± 25%; PoE: 802.3af, Class3
Energy consumption and power 12 VDC, 0.88 A, max. 10.5 W; PoE: (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12.5 W
Power connection Ø5.5 mm coaxial power plug
Camera dimensions Ø105 × 287.6 mm (Ø4.1" × 11.3")
Package dimensions 386 × 156 × 155 mm (15.2" × 7.5" × 7.1")
Camera weight Approx. 1120 g (2.5 lb.)
Weight with packaging Approx. 1634 g (3.6 lb.)

Certificates
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environmental CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection against liquids and dust Ingress protection: IP67 (IEC 60529-2013)

Weight

1.16 kg
