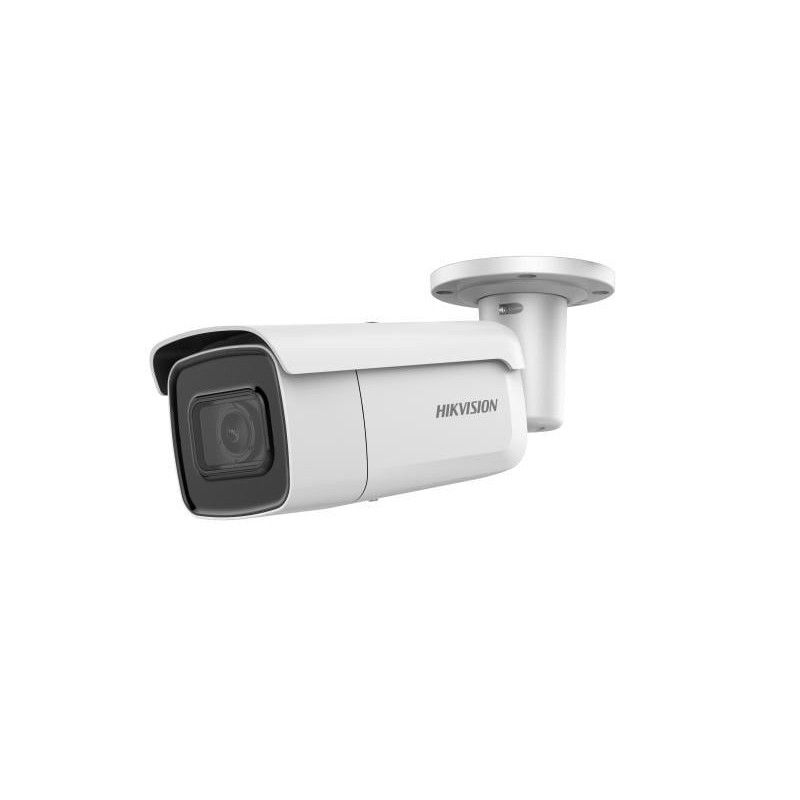

Hikvision bullet DS-2CD2646G2HT-IZS F2.8-12 (white, 4 MP, 60 IR, AcuSense)

Product reference: 26-6942160432731

Hikvision bullet DS-2CD2646G2HT-IZS F2.8-12 (white, 4 MP, 60 IR, AcuSense)

Product reference: 26-6942160432731

You have 3 products in compare list, please remove someone and try again

Add to compare

25397 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Lens
Focal Length FOV 2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
Lens type Varifocal lens, motor-driven lens, 2.8 to 12 mm
Aperture F1.4
Lens installation Ø14
Iris type Fixed

DOROUS
DOROUS
2.8 to 12 mm:
Wide: D: 64.0 m, H: 25.4 m, R: 12.8 m, I: 6.4 m
Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m

Main stream
50Hz: 25fps (2688×1520, 1920×1080, 1280×720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Secondary flow
50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
Third stream
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Image compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video bit rate 32 Kbps to 8 Mbps
H.264 type Baseline Profile/Main Profile/High Profile
H.265 type Main Profile
Bit rate control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Sound
Removing extraneous sounds Yes
Audio sampling frequency 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Internet
Live video viewing Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Internal memory
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Customer iVMS-4200, Hik-Connect, Hik-Central
Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Privacy mask 4 programmable polygon privacy masks
Day/Night mode Day, Night, Auto, Schedule
Photo beautification BLC, HLC, 3D DNA
Photo parameters converter Yes
Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Sound
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reboot button Yes
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Features
Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
Smart features Scene change detection

Smart features
Facial recognition Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

Home
System parameters
12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 15 W
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material ADC12
Size 97.9 mm × 93 mm × 308.5 mm (3.9" × 3.7" × 12.1")
Package size 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Weight Approx. 1355 g (3.0 lb.)
Weight with packaging Approx. 2011 g (4.4 lb.)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Main functions Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Approvals
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011+ A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Security
UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
LOA (IEC/EN 60950-1)
Environmental protection CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Weight

1.711 kg
