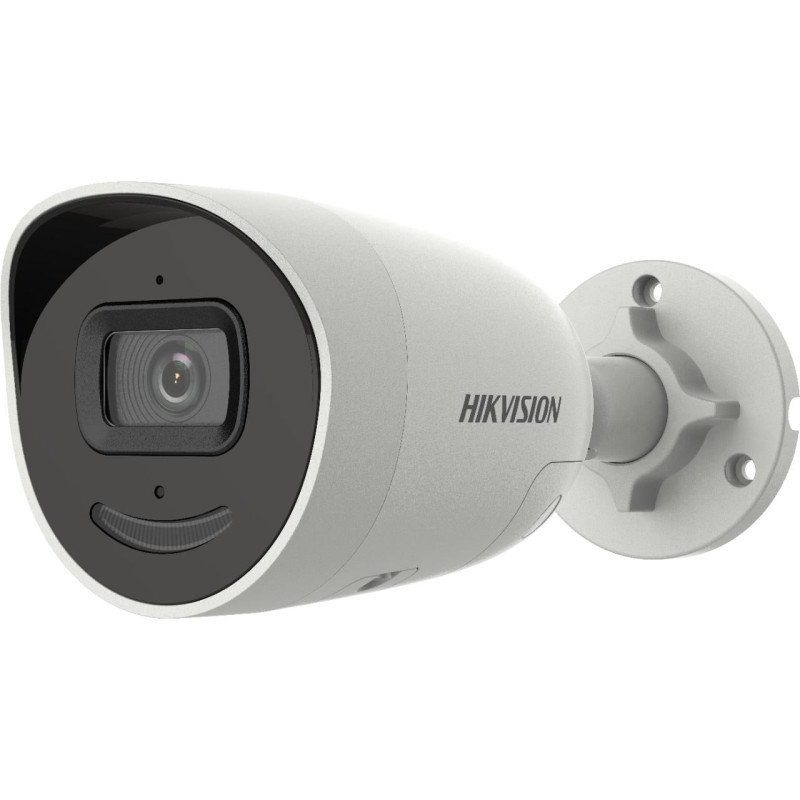

Hikvision bullet DS-2CD2086G2-IU / SL F2.8 (white, 8 MP, 40 IR, AcuSense)

Product reference: 26-6931847120054

Hikvision bullet DS-2CD2086G2-IU / SL F2.8 (white, 8 MP, 40 IR, AcuSense)

Product reference: 26-6931847120054

You have 3 products in compare list, please remove someone and try again

Add to compare

19445 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Lens
Lens type Fixed focal lens, 2.8, 4, and 6 mm optional
FOV
2.8 mm, horizontal FOV: 110°, vertical FOV: 57°, diagonal FOV: 134°
4 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 100°
6 mm, horizontal FOV: 60°, vertical FOV: 35°, diagonal FOV: 68°
Lens installation M12
Iris type Fixed
Aperture F1.6

DOROUS
DOROUS
2.8mm: D: 89m, O: 35m, R: 18m, I: 9m
4mm: D: 99m, O: 39m, R: 20m, I: 10m
6mm: D: 140m, O: 56m, R: 28m, I: 14m

Main stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 24fps (3840×2160)
30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
Secondary flow
50Hz: 25fps (640×480, 640×360)
60Hz: 30fps (640×480, 640×360)
Third stream
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Image compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video bit rate 32 Kbps to 16 Mbps
H.264 type Baseline Profile/Main Profile/High Profile
H.265 type Main Profile
Bit rate control CBR/VBR
SVC H.265 and H.264 encoding
ROI 1 fixed region for main stream and sub-stream

Sound
Audio compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio sampling frequency 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Removing extraneous sounds Yes

Internet
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Live video viewing Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Internal memory
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Customer iVMS-4200, Hik-Connect, Hik-Central
Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Photo parameters converter Yes
Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night mode Day, Night, Auto, Schedule
WDR 120 dB
SNR ≥ 52 dB
Photo beautification BLC, HLC, 3D DNA

Interface
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal memory Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in microphone Yes
Built-in speaker Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
Alarm Visual alarm
Reboot button Yes

Features
Main functions Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart features
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection
Interface Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email

Home
System parameters
12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8.0 W
Size 72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5")
Package size 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Approx. 595 g (1.3 lb.)
Weight with packaging Approx. 810 g (1.8 lb.)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Main functions Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approvals
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Security
UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); LOA (IEC/EN 60950-1)
Environmental protection CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)

Weight

0.612 kg
