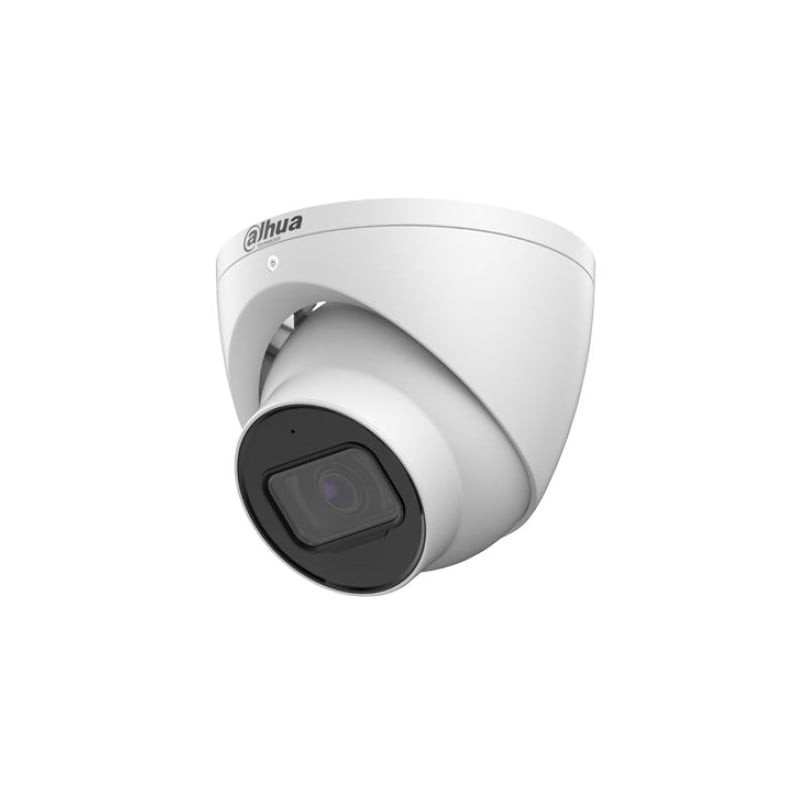

Dahua Dome IPC-HDW3842EM-S-0280B F2.8 (White, 8MP, ~111°, IR LED 30m, IP67, PoE)
Product reference: 26-6923172592439
  • Type: IP camera
  • Model: IPC-HDW3842EM-S-0280B
  • Brand: Dahua
  • Series: WizSense
  • Resolution: 8MP
  • Lens: 2.8 mm (111°)
  • Illumination: IR LED up to 30 m
  • Audio: Built-in microphone
  • Audio/Alarm input/output: Yes
  • Defog function: Yes
  • Smart motion detection: SMD 4.0
  • Image correction: 120 dB WDR, 3D DNR, HLC, BLC
  • Power supply: PoE
  • Memory: SD card up to 256 GB
  • Resistance class: IP67
Dahua Dome IPC-HDW3842EM-S-0280B F2.8 (White, 8MP, ~111°, IR LED 30m, IP67, PoE)

Dahua Dome IPC-HDW3842EM-S-0280B F2.8 (White, 8MP, ~111°, IR LED 30m, IP67, PoE)

Product reference: 26-6923172592439
  • Type: IP camera
  • Model: IPC-HDW3842EM-S-0280B
  • Brand: Dahua
  • Series: WizSense
  • Resolution: 8MP
  • Lens: 2.8 mm (111°)
  • Illumination: IR LED up to 30 m
  • Audio: Built-in microphone
  • Audio/Alarm input/output: Yes
  • Defog function: Yes
  • Smart motion detection: SMD 4.0
  • Image correction: 120 dB WDR, 3D DNR, HLC, BLC
  • Power supply: PoE
  • Memory: SD card up to 256 GB
  • Resistance class: IP67
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
28344 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Sensor 1/1.8" 8 Megapixel progressive CMOS
  • Max resolution 3840 (H) × 2160 (V)
  • ROM 128MB
  • RAM 1GB
  • Scanning system Progressive
  • Electronic shutter speed Auto/Manual 1/3 sec-1/100,000 sec
  • Min. lighting 0.003 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
  • S/N ratio > 56 dB
  • Lighting distance 30 m (98.4 ft)
  • Lighting control Auto/Manual
  • Number of lights 2 (IR LEDs)
  • Pan/Tilt/Rotation Range Pan: 0°-360°, Tilt: 0°-78°, Rotation: 0°-360°
  • Lens type Fixed focal
  • Mount Type M12
  • FOV 2.8mm; 3.6mm
  • Max aperture F1.6
  • FOV 2.8 mm: H: 111°; W: 59°; D: 131°, 3.6 mm: H: 87°; W: 47°; D: 102°
  • Iris type Fixed
  • Closest focus 2.8mm: 1.8m (5.91ft), 3.6mm: 2.6m (8.53ft)
  • DORI Distance (Detect) 2.8 mm: 84.5 m, 3.6 mm: 106.0 m
  • DORI Distance (Observe) 2.8 mm: 34.2 m, 3.6 mm: 42.4 m
  • DORI Distance (Recognize) 2.8 mm: 17.1 m, 3.6 mm: 21.2 m
  • DORI Distance (Identify) 2.8 mm: 8.5 m, 3.6 mm: 10.6 m
  • IVS (Perimeter Security) Tripwire; intrusion (vehicle and human classification)
  • AI SSA Deep learning algorithms for adaptive image optimization
  • Quick Pick AI NVR-assisted quick selection of human/vehicle targets from SMD events
  • Smart search Works with Smart NVR for refined search, event extraction, and video merging
  • Image compression H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
  • Smart Codec Smart H.265+, Smart H.264+
  • Flow capacity 3 streams
  • Video frame rate Main stream: 3840 × 2160 @ (1-25/30) fps, Sub stream 1: 704 × 576 @ (1-25 fps) / 704 × 480 @ (1-30 fps), Sub stream 2: 1920 × 1080 @ (1-25/30 fps)
  • Resolution 8M (3840 × 2160), 6M (3072 × 2048), 5M (3072 × 1728/2592 × 1944), 4M (2688 × 1520), 3.6M (2560 × 1440), 3M (2048 × 1536), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), CIF (352 × 288/352 × 240), VGA (640 × 480)
  • Bit rate control CBR/VBR
  • Video bit rate H.264: 3kbps-16384kbps, H.265: 3kbps-16384kbps
  • Day/night mode Auto (ICR)/Color/B/W
  • BLC Yes
  • HLC Yes
  • WDR 120 dB
  • Scene Self-adaptation (SSA) Yes
  • White balance Auto, natural, street lamp, outdoor, manual, regional custom
  • Gain control Car
  • Noise reduction 3D DNA
  • Motion detection ON/OFF (4 areas, rectangular)
  • Area of ​​interest Yes (4 areas)
  • Fog removal Yes
  • AFSA Yes
  • Image rotation 0°/90°/180°/270° (Supports 90°/270° with 2688×1520 resolution and lower)
  • Mirror Yes
  • Privacy masking Area 4
  • Built-in microphone Yes
  • Audio compression G.711a, G.711Mu, PCM, G.726, G.723
  • Alarm events No SD card, SD card full/error, service life warning (Dahua card only), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, SMD, safety exception
  • Network interface RJ-45 (10/100 Base-T)
  • SDKs and APIs Yes
  • Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P
  • Cybersecurity Video/firmware/configuration encryption, Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certification, syslog, HTTPS, 802.1x, trusted boot/execution/upgrade
  • Compatibility ONVIF (Profile S/G/T), CGI
  • User/Host Support 20 (Total bandwidth: 64 M)
  • Storage FTP, SFTP, Micro SD card (max. 256 GB), NAS
  • Browser Compatibility IE11, Chrome, Firefox
  • Management software Smart PSS, DSS, DMSS
  • Mobile app iOS, Android
  • Certificates CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  • Power supply 12V DC/PoE (802.3af)
  • Energy consumption Basic: 3.8 W (12 VDC), 4.8 W (PoE); Max: 7.8 W (12 VDC), 9.1 W (PoE) (WDR + IR intensity + Intelligence)
  • Working conditions -40°C to +60°C (-40°F to +140°F), Less than 95% RH
  • Storage conditions -40°C to +60°C (-40°F to +140°F), Less than 95% RH
  • Protection Grade IP67
  • Housing Metal
  • Size 99.2mm × Φ106.0mm
  • Weight without packaging 500g
  • Weight with packaging 770g
