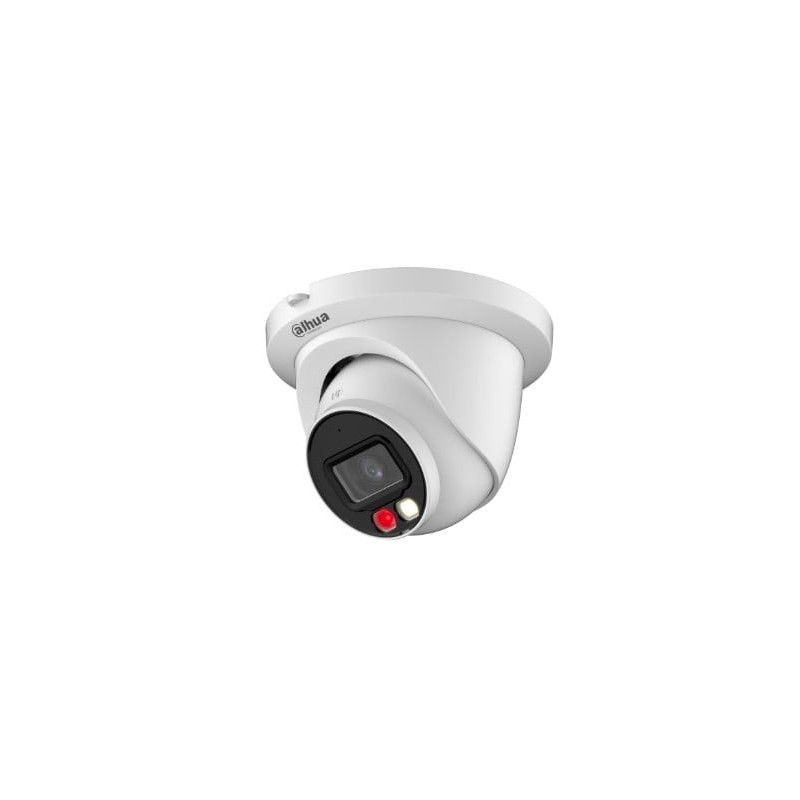

Dahua Dome IPC-HDW2549TM-S-IL-0280B F2.8 (White, 5MP, ~111°, IR+white light 30m, IP67)
Product reference: 26-6923172581624
  • Type: IP camera
  • Model: IPC-HDW2549TM-S-IL-0280B
  • Lens: 2.8 mm (~111°)
  • Sensor resolution: 5 MP
  • Housing: DOME
  • Illumination: Dual illumination (IR + white light up to 30 m)
  • Built-in microphone: Yes
  • Compression: H.265
  • WDR: Yes
  • Noise Reduction: 3D DNA
  • HLC: Yes
  • BLC: Yes
  • Resistance class: IP67
  • Impact resistance: IK10
  • Power supply: PoE
  • SD card support: Up to 256 GB
  • Operating temperature: -40°C to +60°C
  • Brand: Dahua
Dahua Dome IPC-HDW2549TM-S-IL-0280B F2.8 (White, 5MP, ~111°, IR+white light 30m, IP67)

Dahua Dome IPC-HDW2549TM-S-IL-0280B F2.8 (White, 5MP, ~111°, IR+white light 30m, IP67)

Product reference: 26-6923172581624
  • Type: IP camera
  • Model: IPC-HDW2549TM-S-IL-0280B
  • Lens: 2.8 mm (~111°)
  • Sensor resolution: 5 MP
  • Housing: DOME
  • Illumination: Dual illumination (IR + white light up to 30 m)
  • Built-in microphone: Yes
  • Compression: H.265
  • WDR: Yes
  • Noise Reduction: 3D DNA
  • HLC: Yes
  • BLC: Yes
  • Resistance class: IP67
  • Impact resistance: IK10
  • Power supply: PoE
  • SD card support: Up to 256 GB
  • Operating temperature: -40°C to +60°C
  • Brand: Dahua
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
19473 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Sensor 1/2.7" CMOS
  • Max resolution 2960 (H) × 1668 (V)
  • ROM 128MB
  • RAM 256MB
  • Scanning system Progressive
  • Electronic shutter speed Auto/Manual 1/3 sec-1/100,000 sec
  • Min. lighting 0.007 Lux@F1.6 (Color, 30IRE), 0.0007 Lux@F1.6 (B/W, 30IRE), 0 lux (Illuminator on)
  • S/N ratio > 56 dB
  • Lighting distance Up to 30 m (98.43 ft) (IR), Up to 30 m (98.43 ft) (Warm light)
  • Lighting control Auto; Manual
  • Number of lights 1 (IR LED), 1 (Warm light)
  • Pan/Tilt/Rotation Range Pan: 0°-360°, Tilt: 0°-78°, Rotation: 0°-360°
  • Lens type Fixed focal
  • Lens installation M12
  • FOV 2.8mm; 3.6mm
  • Max aperture F1.6
  • FOV 2.8 mm: H: 111°; W: 58°; D: 132°, 3.6 mm: H: 92°; W: 45°; D: 110°
  • Aperture control Fixed
  • Closest focus 2.8mm: 1.1m (3.61ft), 3.6mm: 1.7m (5.58ft)
  • DORI Distance (2.8 mm) Detect: 63.6 m (208.66 ft), Observe: 25.4 m (83.33 ft), Recognize: 12.7 m (41.67 ft), Identify: 6.4 m (21.00 ft)
  • DORI Distance (3.6 mm) Detect: 85.4 m (280.18 ft), Observe: 34.2 m (112.20 ft), Recognize: 17.1 m (56.10 ft), Identify: 8.5 m (27.89 ft)
  • IVS (Perimeter Protection) Intrusion, tripwire (vehicle and human classification)
  • Smart search Work with Smart NVR for intelligent search, event extraction, and video merging
  • Image compression H.265, H.264, H.264H, H.264B, MJPEG (Sub stream only)
  • Smart Codec Smart H.265+, Smart H.264+
  • Video frame rate Main stream: 2960 × 1668@(1-20 fps) / 2688 × 1520@(1-25/30 fps); Sub stream: 704 × 576@(1-25 fps) / 704 × 480@(1-30 fps)
  • Flow capacity 2 streams
  • Resolution 2960×1668, 2880×1620, 2688×1520, 3M (2048×1536), 2304×1296, 1080p (1920×1080), 1.3M (1280×960), 720p (1280×720), D1 (704×576/704×480), VGA (640×480), CIF (352×288/352×240)
  • Bit rate control CBR/VBR
  • Video bit rate H.264: 32 kbps-8192 kbps, H.265: 12 kbps-8192 kbps
  • Day/Night Mode Auto (ICR)/Color/B/W
  • BLC Yes
  • HLC Yes
  • WDR 120 dB
  • White balance Auto, natural, street lamp, outdoor, manual, regional custom
  • Gain control Auto, Manual
  • Noise reduction 3D NO
  • Motion detection Off/On (4 areas, rectangular)
  • Area of ​​interest Yes (4 areas)
  • Smart lighting Yes
  • Image rotation 0°/90°/180°/270° (Supports 90°/270° at 2688 × 1520 resolution and lower)
  • Mirror Yes
  • Privacy masking Area 4
  • Built-in microphone Yes
  • Audio compression G.711a, G.711Mu, PCM, G.726
  • Alarm Events No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, audio detection, voltage detection, SMD, security exception
  • Network port RJ-45 (10/100 Base-T)
  • SDKs and APIs Yes
  • Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour
  • Compatibility ONVIF (Profile S/G/T), CGI, P2P, Milestone
  • User/port 20 (Total bandwidth: 48 M)
  • Storage FTP, SFTP, Micro SD card (Max. 256 GB), NAS
  • Browser Compatibility IE, Chrome, Firefox
  • Management software Smart PSS, DSS, DMSS
  • Mobile app iOS, Android
  • Cybersecurity Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, 802.1x, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot, firmware encryption, X.509 certification
  • Certificates CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL62368-1 CAN/CSA C22.2 No. 62368-1-14
  • Power supply 12VDC/PoE (802.3af)
  • Energy consumption Basic: 2.2 W (12 VDC), 2.9 W (PoE); Max: 4.6 W (12 VDC), 5.4 W (PoE)
  • Working conditions (temperature) -40 °C to +60 °C (-40 °F to +140 °F)
  • Operating conditions (humidity) ≤95%
  • Storage conditions temperature -40 °C to +60 °C (-40 °F to +140 °F)
  • Storage conditions humidity ≤95%
  • Protection IP67
  • Housing materials Inner core: Metal, Cover: Metal, Decoration ring: Plastic, Quick install mounting plate: Metal
  • Product size 99.1mm × Φ121.9mm (3.90" × Φ4.80")
  • Weight without packaging 0.48 kg (1.06 lb)
  • Weight with packaging 0.62 kg (1.37 lb)

Manufacturer codeDAHIPCHDW2549TMSIL28
ManufacturerDahua
Weight0.536 kg
