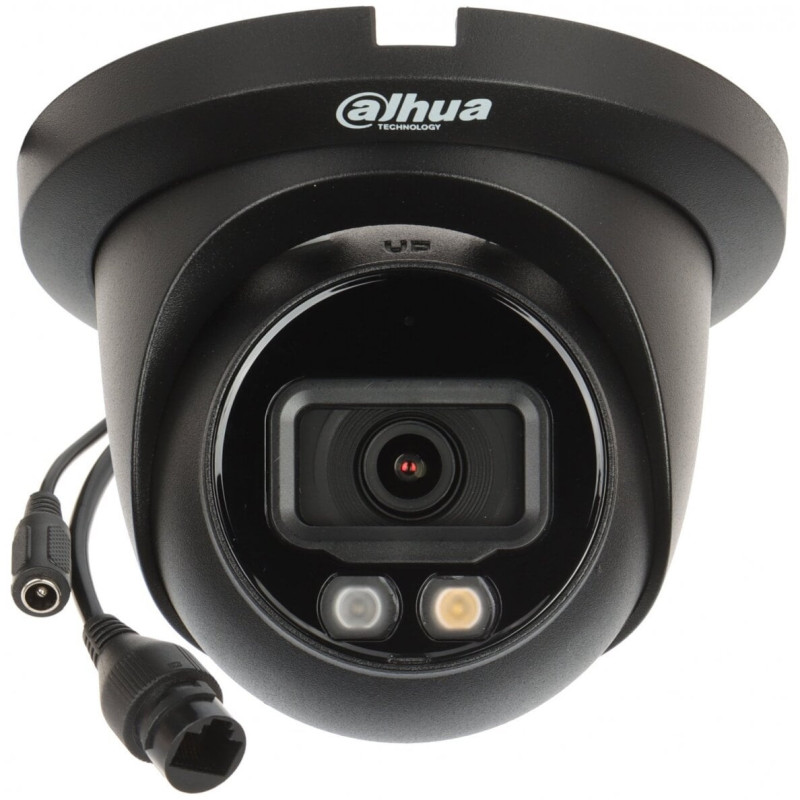

Dahua Dome IPC-HDW2449TM-S-IL-0280B F2.8 (Black, 4MP, 95°, IR+LED 30m, IP67, IK10)
Product reference: 26-6923172580368
  • Type: DOME IP camera
  • Model: IPC-HDW2449TM-S-IL-0280B
  • Brand: Dahua
  • Color: Black
  • Series: WizSense
  • Lens: 2.8 mm (95°)
  • Resolution: 4MP
  • Illumination: IR + white light up to 30 m
  • Built-in microphone: Yes
  • Video compression: H.265
  • Features: WDR 120 dB, 3D DNR, HLC, BLC, Dual illumination, Lite AI
  • Supported memory: SD card up to 256 GB
  • Protection class: IP67
  • Vandalism resistance: IK10
  • Power supply: PoE
  • Operating temperature: -40°C to +60°C
Dahua Dome IPC-HDW2449TM-S-IL-0280B F2.8 (Black, 4MP, 95°, IR+LED 30m, IP67, IK10)

Dahua Dome IPC-HDW2449TM-S-IL-0280B F2.8 (Black, 4MP, 95°, IR+LED 30m, IP67, IK10)

Product reference: 26-6923172580368
  • Type: DOME IP camera
  • Model: IPC-HDW2449TM-S-IL-0280B
  • Brand: Dahua
  • Color: Black
  • Series: WizSense
  • Lens: 2.8 mm (95°)
  • Resolution: 4MP
  • Illumination: IR + white light up to 30 m
  • Built-in microphone: Yes
  • Video compression: H.265
  • Features: WDR 120 dB, 3D DNR, HLC, BLC, Dual illumination, Lite AI
  • Supported memory: SD card up to 256 GB
  • Protection class: IP67
  • Vandalism resistance: IK10
  • Power supply: PoE
  • Operating temperature: -40°C to +60°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
11398 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Sensor 1/2.9" CMOS
  • Max resolution 2688 (H) × 1520 (V)
  • ROM 128MB
  • RAM 128MB
  • Scanning system Progressive
  • Electronic shutter speed Auto/Manual 1/3 sec-1/100,000 sec
  • Min. lighting 0.006 lux@F1.6 (Color, 30 IRE)0.0006 lux@F1.6 (B/W, 30 IRE)0 lux (Illuminator on)
  • S/N ratio > 56 dB
  • Lighting distance up to 30 m (98.43 ft) (IR); up to 30 m (98.43 ft) (Warm light)
  • Lighting control Auto; Manual
  • Number of lights 1 (IR LED); 1 (Warm light)
  • Pan/Tilt/Rotation Range Pan: 0°-360°Tilt: 0°-78°Rotation: 0°-360°
  • Lens type Fixed focal
  • Lens installation M12
  • Focal length 2.8mm; 3.6mm
  • Max aperture F1.6
  • FOV 2.8 mm: H: 95°; W: 52°; D: 114°3.6mm: H: 78°; W: 41°; D: 94°
  • Aperture control Fixed
  • Closest focus 2.8mm: 0.9m (2.95ft) 3.6mm: 1.6m (5.25ft)
  • IVS (Perimeter Security) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Smart search Work together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos
  • Image compression H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
  • Smart Codec Smart H.265+; Smart H.264+
  • Video frame rate Main stream: 2688 × 1520@(1-20 fps)/2560 × 1440@(1-25/30 fps) Sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps)*The values ​​above are the max. frame rates of each stream; for multiple streams, the values ​​will be subjected to the total encoding capacity.
  • Flow capacity 2 streams
  • Resolution 4M (2688×1520/2560×1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280×720); D1 (704×576/704×480); VGA (640x480); CIF (352×288/352×240)
  • Bit rate control CBR/VBR
  • Video bit rate H.264: 32 kbps-6144 kbps H.265: 12 kbps-6144 kbps
  • Day/night mode Auto(ICR)/Color/B/W
  • BLC Yes
  • HLC Yes
  • WDR 120 dB
  • White balance Car; natural; street lamps; outdoor; manual; regional custom
  • Gain control Auto;Manual
  • Noise reduction 3D NO
  • Motion detection OFF/ON (4 areas, rectangular)
  • Area of ​​interest Yes (4 areas)
  • Image rotation 0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower)
  • Mirror Yes
  • Privacy masking Area 4
  • Built-in microphone Yes
  • Audio compression G.711a; G.711Mu; PCM; G.726
  • Dangerous event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception; SMD
  • Network port RJ-45 (10/100 Base-T)
  • SDKs and APIs Yes
  • Internet protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
  • Compatibility ONVIF (Profile S/Profile G/Profile T); CGI
  • User/port 6 (Total bandwidth: 36 M)
  • Storage FTP; SFTP; Micro SD card (support max. 256 GB)
  • Browser IEChromeFirefox
  • Management software DSS;DMSS
  • Mobile app iOS;Android
  • Cybersecurity Configuration encryption; Trusted execution; digest; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification
  • Certificates CE-LVD: EN62368-1;CE-EMC: Electromagnetic Compatibility Directive2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B;UL/CUL: UL62368-1 CAN/CSA C22.2 No. 62368-1-14
  • Power supply 12VDC/PoE (802.3af)
  • Energy use Basic: 2.1 W (12 VDC); 2.5 W (PoE) Max. (H.265 + intelligence on + WDR + warm light): 4.4 W (12 VDC); 5.2W (PoE)
  • Working conditions (temperature) -40 °C to +60 °C (-40 °F to +140 °F)
  • Working conditionshumidity ≤95%
  • Storage conditions temperature -40 °C to +60 °C (-40 °F to +140 °F)
  • Protection IP67
  • Housing materials Inner core: Metal; Cover: Metal; Decoration ring: Plastic
  • Product dimensions 99.1mm × Φ121.9mm (3.90" × Φ4.80")
  • Weight without packaging 0.46 kg (1.01 lb)
  • Total weight 0.65 kg (1.43 lb)
