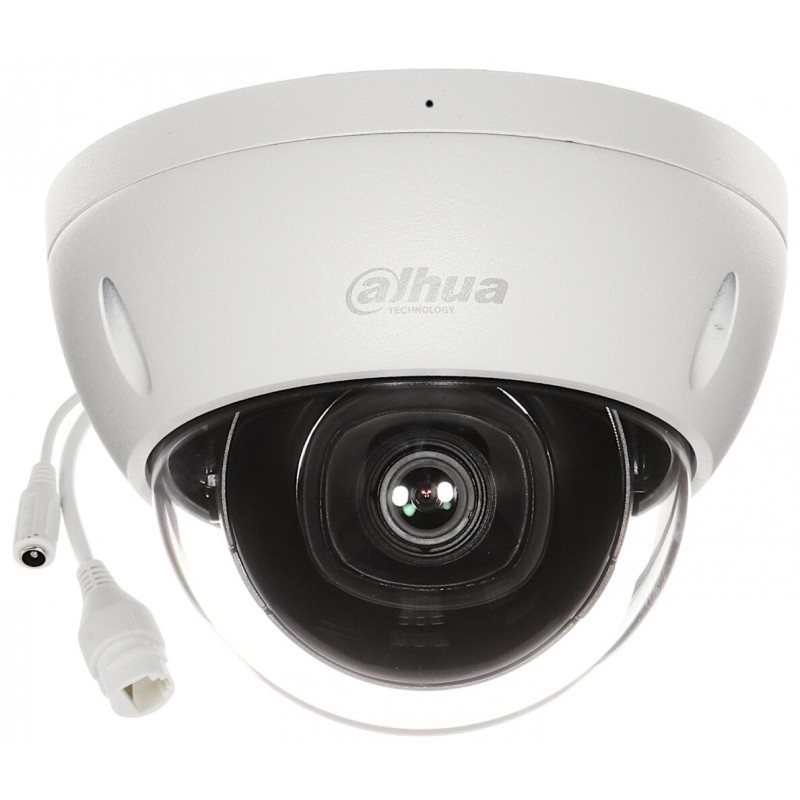

Dahua Dome IPC-HDBW2841E-S-0280B 2.8mm (White, 8MP, ~106°, IR 30m, IP67, IK10, PoE)
Product reference: 26-6923172582249
  • Type: IP camera
  • Model: IPC-HDBW2841E-S-0280B
  • Brand: Dahua
  • Resolution: 8MP
  • Sensor: 1/2.9" CMOS
  • Frame rate: 20 FPS
  • Lens: 2.8 mm
  • IR illumination: up to 30 m
  • WDR: Yes
  • Noise Reduction: 3D DNA
  • Functions: AI, SMD Plus, HLC, BLC
  • Protection class: IP67
  • Vandalism resistance: IK10
  • Memory card: Micro SD up to 256 GB
Dahua Dome IPC-HDBW2841E-S-0280B 2.8mm (White, 8MP, ~106°, IR 30m, IP67, IK10, PoE)

Dahua Dome IPC-HDBW2841E-S-0280B 2.8mm (White, 8MP, ~106°, IR 30m, IP67, IK10, PoE)

Product reference: 26-6923172582249
  • Type: IP camera
  • Model: IPC-HDBW2841E-S-0280B
  • Brand: Dahua
  • Resolution: 8MP
  • Sensor: 1/2.9" CMOS
  • Frame rate: 20 FPS
  • Lens: 2.8 mm
  • IR illumination: up to 30 m
  • WDR: Yes
  • Noise Reduction: 3D DNA
  • Functions: AI, SMD Plus, HLC, BLC
  • Protection class: IP67
  • Vandalism resistance: IK10
  • Memory card: Micro SD up to 256 GB
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
20951 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Image sensor 1/2.7" CMOS
  • Max resolution 3840 (H) × 2160 (V)
  • ROM 128MB
  • RAM 256MB
  • Scanning system Progressive
  • Electronic shutter speed Auto/Manual 1/3 sec-1/100,000 sec
  • Min. lighting 0.009 lux@F 2.0 (Color, 30 IRE)0.0009 lux@F2.0 (B/W, 30 IRE)0 lux (Illuminator on)
  • Signal-to-noise ratio > 56 dB
  • Lighting distance 30 m (98.43 ft) (IR)
  • Lighting control Auto; Manual
  • Number of lights 3 (IR LEDs)
  • Pan/Tilt/Rotation Range Pan: 0°-355°Tilt: 0°-65°Rotation: 0°-355°
  • Lens type Fixed focal
  • Lens installation M12
  • Focal length 2.8mm; 3.6mm
  • Maximum aperture F2.0
  • FOV 2.8 mm: H: 106°; W: 56°; D: 125°3.6mm: H: 88°; W: 46°; D: 104°
  • Aperture control Fixed
  • Closest focus 2.8mm: 1.3m (4.27ft) 3.6mm: 1.9m (6.23ft)
  • IVS (Perimeter Security) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Smart search Work together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos
  • Image compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
  • Smart Codec Smart H.265+; Smart H.264+
  • Video frame rate Main stream: 3840 × 2160@(1-20 fps )/2688 × 1520@(1-25/30 fps) sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps)*The values ​​above are the max. frame rates of each stream; for multiple streams, the values ​​will be subjected to the total encoding capacity.
  • Flow capacity 2 streams
  • Resolution 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280×720); D1 (704×576/704×480); VGA (640x480); CIF (352 × 288/352 × 240)
  • Bit rate control CBR/VBR
  • Video bit rate H.264: 32 kbps-8192 kbps H.265: 12 kbps-8192 kbps
  • Day/night Auto(ICR)/Color/B/W
  • BLC Yes
  • HLC Yes
  • WDR 120 dB
  • White balance Car; natural; street lamps; outdoor; manual; regional custom
  • Gain control Auto; Manual
  • Noise reduction 3D NO
  • Motion detection OFF/ON (4 areas, rectangular)
  • Area of ​​interest Yes (4 areas)
  • Smart lighting Yes
  • Image rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
  • Mirror Yes
  • Privacy masking Area 4
  • Built-in microphone Yes
  • Audio compression G.711a; G.711Mu; PCM; G.726
  • Dangerous event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
  • Network port RJ-45 (10/100 Base-T)
  • SDKs and APIs Yes
  • Internet protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
  • Compatibility ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
  • User/port 20 (Total bandwidth: 48 M)
  • Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS
  • Browser IEChromeFirefox
  • Management software Smart PSS; DSS; DMSS
  • Mobile app iOS; Android
  • Cybersecurity Configuration encryption; trusted execution; digest; security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
  • Certificates CE-LVD: EN62368-1;CE-EMC: Electromagnetic Compatibility Directive2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B;UL/CUL: UL62368-1 CAN/CSA C22.2 No. 62368-1-14
  • Power supply 12VDC/PoE (802.3af)
  • Energy consumption Basic: 2.6 W (12 VDC); 3.3 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 5.4 W (12 VDC); 6.4W (PoE)
  • Working conditions (temperature) -40 °C to +60 °C (-40 °F to +140 °F)
  • Working conditionshumidity ≤95%
  • Storage conditions temperature -40 °C to +60 °C (-40 °F to +140 °F)
  • Storage conditions humidity ≤95%
  • Protection IP67; IK10
  • Housing materials Metal
  • Product dimensions 81.0mm × Φ109.9mm (3.19" × Φ4.33")
  • Net weight 0.34 kg (0.75 lb)
  • Total weight 0.49 kg (1.08 lb)

Manufacturer codeDAHIPCHDBW2841ES0280B
ManufacturerDahua
Weight0.38 kg
