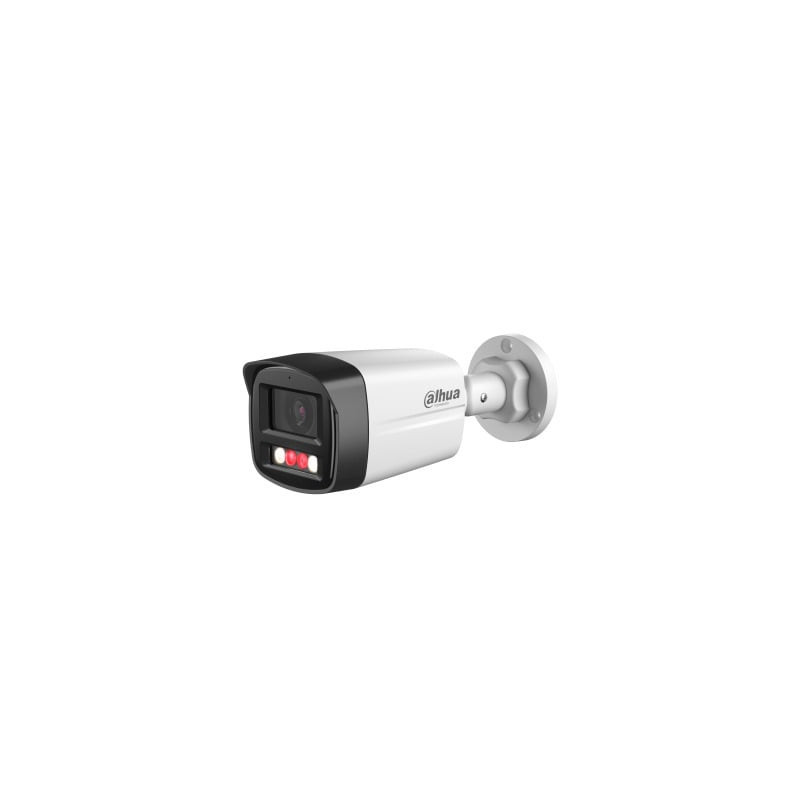

Dahua Bullet IPC-HFW1439TL1-A-IL-0280B F2.8 (White, 4MP, ~95°, IR+white light 30m, IP67)
Product reference:
26-DAHIPCHFW1439TL1AIL2
- Type: IP camera
- Model: IPC-HFW1439TL1-A-IL-0280B
- Lens: 2.8 mm (~95°)
- Sensor resolution: 4 MP
- Body: BULLET
- Illumination: IR + white light up to 30 m
- Built-in microphone: Yes
- Compression: H.265
- WDR: 120dB
- Resistance class: IP67
- Power supply: PoE
- Operating temperature: -40°C to +60°C
- Brand: Dahua
Dahua Bullet IPC-HFW1439TL1-A-IL-0280B F2.8 (White, 4MP, ~95°, IR+white light 30m, IP67)
Product reference:
26-DAHIPCHFW1439TL1AIL2
- Type: IP camera
- Model: IPC-HFW1439TL1-A-IL-0280B
- Lens: 2.8 mm (~95°)
- Sensor resolution: 4 MP
- Body: BULLET
- Illumination: IR + white light up to 30 m
- Built-in microphone: Yes
- Compression: H.265
- WDR: 120dB
- Resistance class: IP67
- Power supply: PoE
- Operating temperature: -40°C to +60°C
- Brand: Dahua
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Home
- Sensor 1/2.9" CMOS
- Max resolution 2560 (H) × 1440 (V)
- ROM 128MB
- RAM 128MB
- Scanning system Progressive
- Electronic shutter speed Auto/Manual 1/3 sec-1/100,000 sec
- Min. lighting 0.006 lux@F1.6 (Color, 30 IRE), 0.0006 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
- S/N ratio > 56 dB
- Lighting distance Up to 30 m (98.43 ft) (IR LED), Up to 30 m (98.43 ft) (Warm light)
- Lighting control Auto; Manual
- Number of lights 2 (IR LED), 2 (Warm light)
- Changing the angle Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360°
- Lens type Fixed focal
- Lens installation M12
- FOV 2.8mm; 3.6mm
- Max aperture F1.6
- FOV 2.8 mm: H: 94°; W: 52°; D: 111°, 3.6 mm: H: 78°; W: 41°; D: 94°
- Aperture control Fixed
- Closest focus 2.8mm: 1.1m (3.61ft), 3.6mm: 1.7m (5.58ft)
- DORI Distance (2.8 mm) Detect: 64.0 m (209.97 ft), Observe: 25.6 m (83.98 ft), Recognize: 12.8 m (41.99 ft), Identify: 6.4 m (21.00 ft)
- DORI Distance (3.6 mm) Detect: 85.4 m (280.18 ft), Observe: 34.2 m (112.20 ft), Recognize: 17.1 m (56.10 ft), Identify: 8.5 m (27.89 ft)
- Human detection Support for classification and accurate detection of humans
- Smart search Work with Smart NVR for intelligent search, event extraction, and video merging
- Image compression H.265, H.264, H.264H, H.264B, MJPEG (Sub stream only)
- Smart Codec Smart H.265+, Smart H.264+
- Video frame rate Main stream: 2560 × 1440@(1-25/30 fps), Sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps)
- Flow capacity 2 streams
- Resolution 4M (2560 × 1440), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
- Bit rate control CBR/VBR
- Video bit rate H.264: 32 kbps-4096 kbps, H.265: 12 kbps-4096 kbps
- Day/Night Mode Auto (ICR)/Color/B/W
- BLC Yes
- HLC Yes
- WDR 120 dB
- White balance Auto, natural, street lamp, outdoor, manual, regional custom
- Gain control Auto; Manual
- Noise reduction 3D NO
- Motion detection Off/On (4 areas, rectangular)
- Area of interest Yes (4 areas)
- Smart lighting Yes
- Image rotation 0°/180°
- Mirror Yes
- Privacy masking Area 4
- Built-in microphone Yes
- Audio compression G.711a, G.711Mu, PCM, G.726
- Alarm Events Network disconnection, IP conflict, illegal access, motion detection, video tampering, audio detection, SMD (human), security exception
- Network port RJ-45 (10/100 Base-T)
- SDKs and APIs Yes
- Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
- Compatibility ONVIF (Profile S/T), CGI
- User/port 6 (Total bandwidth: 24 M)
- Storage FTP
- Browser Compatibility IE, Chrome, Firefox
- Management software Smart PSS Lite, DSS, DMSS
- Mobile app iOS, Android
- Cybersecurity Configuration encryption, Trusted execution, Digest, Security logs, HTTPS, Trusted upgrade, WSSE, Trusted boot, Account lockout, X.509 certification generation/importing, Video encryption
- Certificates CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- Power supply 12VDC/PoE (802.3af)
- Energy consumption Basic: 2 W (12 VDC), 2.9 W (PoE), Max: 6.4 W (12 VDC), 7.7 W (PoE)
- Working conditions (temperature) -40 °C to +60 °C (-40 °F to +140 °F)
- Operating conditions (humidity) ≤95%
- Storage conditions temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Storage conditions humidity ≤95%
- Protection IP67
- Housing materials Metal + Plastic
- Product size 197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") (L × W × H)
- Weight without packaging 0.31 kg (0.68 lb)
- Weight with packaging 0.45 kg (0.99 lb)
| Manufacturer code | DAHIPCHFW1439TL1AIL2 |
| Manufacturer | Dahua |
| Weight | 0.326 kg |
