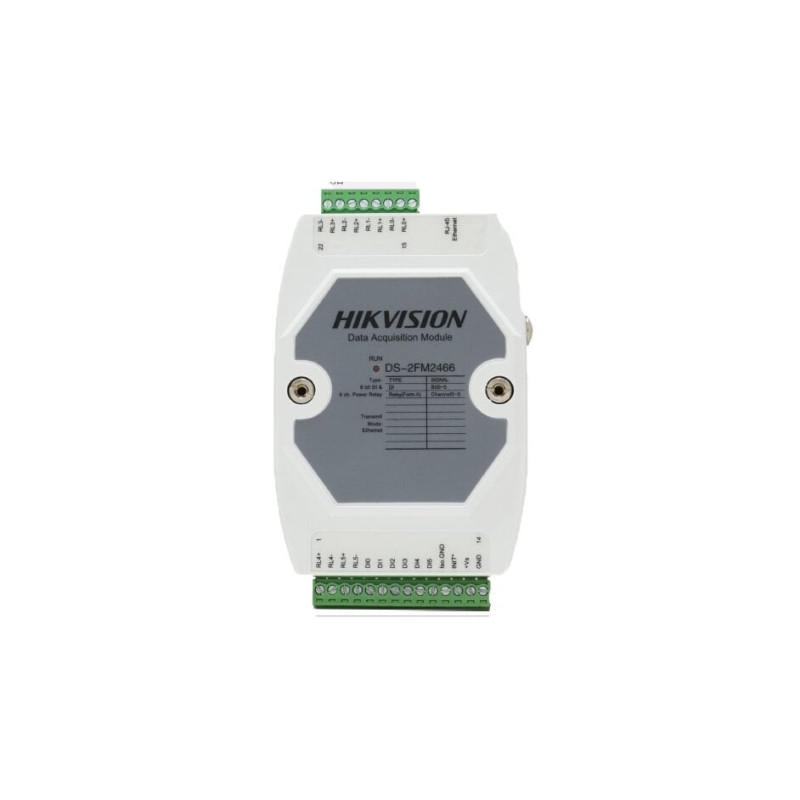

Alarm output module Hikvision DS-2FM2466
Product reference: 26-6931847140816
  • Alarm IO Hub
  • Internet
  • POE
Alarm output module Hikvision DS-2FM2466

Alarm output module Hikvision DS-2FM2466

Product reference: 26-6931847140816
  • Alarm IO Hub
  • Internet
  • POE
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
29892 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Digital input
  • Number of channels 6 single-ended digital inputs (dry contact or common-cathode wet contact)
  • Digital input voltage

    Dry contact

    Logic level 0: grounding

    Logic level 1: open circuit

    Wet contact

    Logic level 0: 0 to +3 V (maximum)

    Logic level 1: +10 V to +30 V
  • Working mode Digital input, low-to-high latch, high-to-low latch, counter, and frequency measurement
  • Counter 32-bit
  • Counter frequency 0 to 3 kHz
  • Other Supports inverted DI function
  • Digital Output
  • Number of channels 6 form-A power relay outputs
  • Contact capacitance (resistive)

    AC: 250V @ 5A

    DC: 30V @ 3A
  • Working mode Digital output, low-to-high delay output, high-to-low delay output, and frequency output
  • Breakdown voltage 500 VAC (50/60 Hz)
  • Relay activation time 7ms
  • Relay off time 3ms
  • Total operating time 10ms
  • Insulation resistance > 1 GΩ @ 500 VDC
  • Maximum operating frequency 20 cycles/min (at rated load)
  • Electrical durability value

    Typical value @30 VDC/3 A: 1 × 105 times (operating frequency: 20 cycles/min)

    Typical value @250 VAC/3 A: 1 × 105 times (operating frequency: 20 cycles/min)
  • Mechanical endurance value Typical value: 2 × 107 times (no load, operating frequency: 180 cycles/min)
  • Pulse output frequency ≤ 3Hz
  • Other
  • Insulation voltage 2000 V
  • Communication interface 10/100Mbps Ethernet
  • Watchdog timer Double watchdog timers
  • Supply voltage +10V to 30VDC
  • Power protection Power reversal protection
  • Energy consumption 2.5W @ 24VDC
  • Working conditions (temperature) -10°C to +70°C
  • Storage conditions (temperature) -20°C to +80°C

Weight0.139 kg
