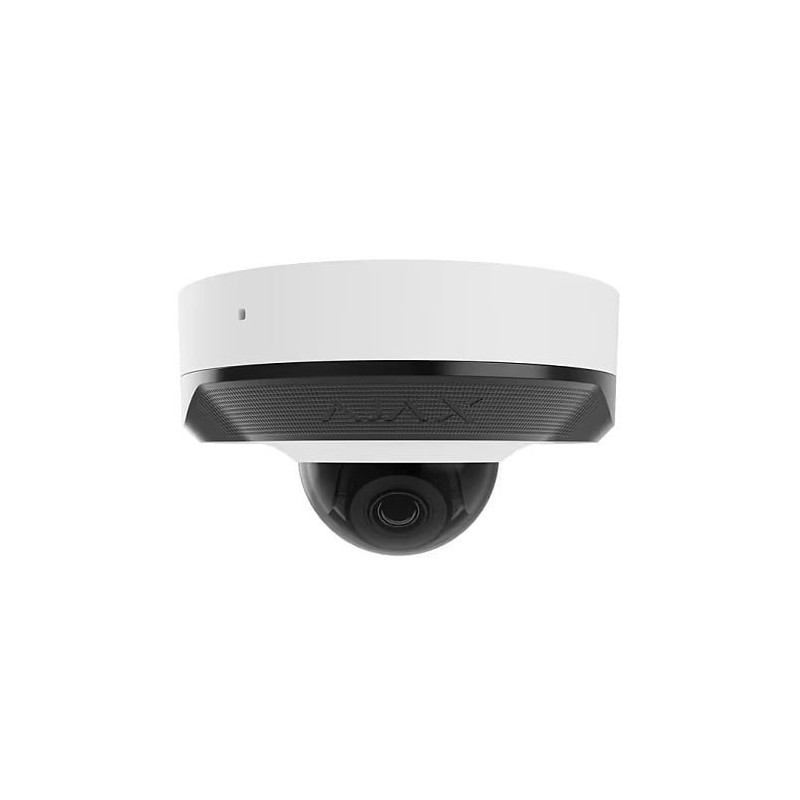

Ajax DomeCam Mini 76022.214.WH1 F2.8 (white, 8MP, 15m IR, True WDR, IP65)
Product reference: 26-AJDOMECAMMINI8MP28
  • Category: Dome IP camera
  • Brand: Ajax
  • Model: DomeCam Mini (76022.214.WH1)
  • Color: white
  • Resolution: 8MP
  • Lens: 2.8 mm (110°)
  • Detection angle: horizontal 110°
  • Technology: True WDR
  • Night vision: IR up to 15 m
  • Memory: microSD up to 256 GB
  • Power supply: PoE or 12 V DC
  • Protection class: IP65

Ajax DomeCam Mini 76022.214.WH1 F2.8 (white, 8MP, 15m IR, True WDR, IP65)

Product reference: 26-AJDOMECAMMINI8MP28
  • Category: Dome IP camera
  • Brand: Ajax
  • Model: DomeCam Mini (76022.214.WH1)
  • Color: white
  • Resolution: 8MP
  • Lens: 2.8 mm (110°)
  • Detection angle: horizontal 110°
  • Technology: True WDR
  • Night vision: IR up to 15 m
  • Memory: microSD up to 256 GB
  • Power supply: PoE or 12 V DC
  • Protection class: IP65
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
19932
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Resolution 5 MP: Up to 2,880 × 1,620 px @ 25 fps (3K UHD), 8 MP: Up to 3,840 × 2,160 px @ 20 fps (4K UHD)
  • Lens 2.8 mm: 100°-110° viewing angle, 4 mm: 75°-85° viewing angle
  • Day/night switch Automatic
  • Image processing True WDR (hardware and software)
  • Image compression H.265, H.264
  • Bit rate 100 Mbps full duplex
  • Simultaneous live view Up to 5 channels
  • User access Up to 200 users
  • Alarm trigger Motion detection, AI-recognition, Detector alarm, Automation scenarios
  • AI object recognition Humans, vehicles, pets¹
  • Video streaming protocol ONVIF, RTSP
  • Microphone Digital microphone with G722 codec
  • IR illumination Up to 30 m
  • Housing IP65, metal housing
  • Dimensions 113 × 60 mm
  • Weight 360g
  • Colors Black, White
  • Operating temperature range -30 °C to +60 °C (-22 °F to +140 °F)
  • Working humidity Up to 90%
  • Energy source 12 V ± 20%, 1 A, PoE standard 802.3af, Class 3
  • Maximum power consumption Up to 7.5 W
  • Storage support Up to 256 GB SD card
  • Compatibility All Ajax hubs (up to 200 cameras), Ajax NVR
  • Compliance CE, FCC, RED, RoHS, NDAA
  • Installation QR code setup, configuration via Ajax apps, adjustable motion detection zones, real-time supervision with health checks
  • Complete set DomeCam Mini, Installation template, Installation kit, Quick start guide
