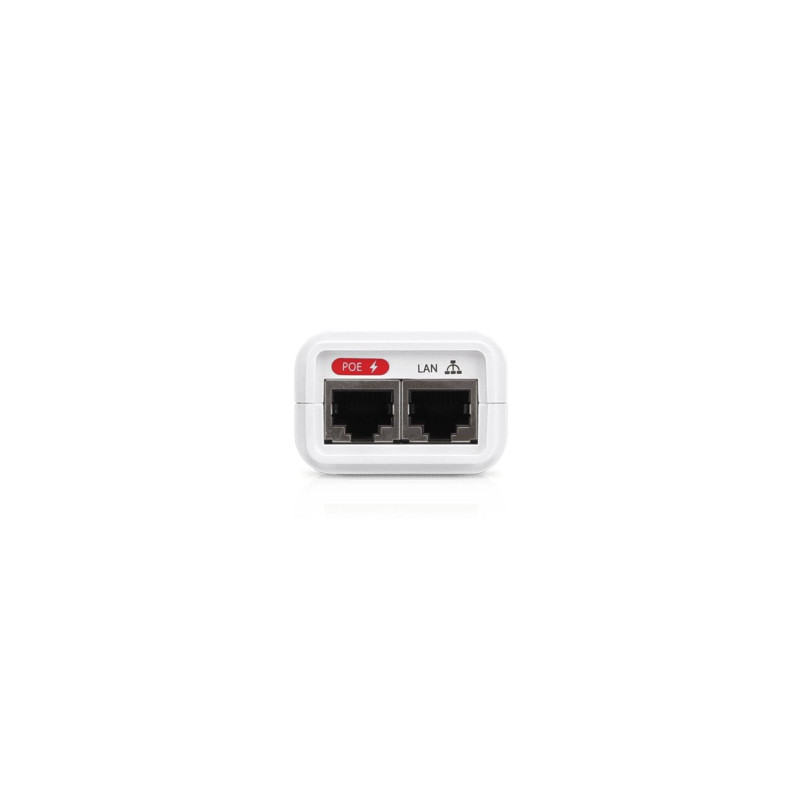

Adapter UBIQUITI POE-24-7W-G-WH-EU

Product reference: 26-817882025140

Type: PoE adapter
Model: UBIQUITI UniFi POE-24-7W-G-WH-EU
Voltage: 24V DC
Current: 0.3A
Power: 7W
Connections: LAN
Power supply: 240V AC 50/60Hz
Operating temperature: 0...40°C
Surge protection

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

7,26 €

Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Ask about product

Your message has been successfully sent!

Fill in the required fields*

Not available

Home
POE-24-7W-G-WH (Low-Power)
Size 72 x 45 x 33 mm (2.8 x 1.8 x 1.3")
Weight 72.1g (2.5 oz)
Output voltage 24V DC @ 0.3A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset option Yes
Reset button Yes
Rated voltage 100-240V AC @ 50/60Hz
Input current strength 0.3A @ 120V AC, 0.2A @ 240V AC
Inrush current lt;40A peak @ 120V AC, lt;70A peak @ 230V AC
Efficiency 80+%
Output ripple 1% Max.
Switching frequency 65 kHz
Line adjustment ≤ 3%
Load regulation ≤ 5%
Feeding 2 couples Pins 4, 5 (+) and pins 7, 8 (-)
Feeding 4 couples -
Storage conditions temperature -30 to 70°C (-22 to 158°F)
Operating ambient temperature 0 to 40°C (32 to 104°F)
Humidity 35 to 95% non-condensing
AC connector IEC-320 C6
Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Pressure protection 11V date, 60V power
Maximum surge discharge 1500A (8/20 μs) power
Maximum impulse current 36A (10/1000 μs) date
Shunt capacitance lt;5 pF date
Response time lt;1 ns
Certificates CE, FCC, IC, UL
POE-24-12W-G (Mid-Power)
Size 87 x 44 x 29 mm (3.4 x 1.7 x 1.1")
Weight 99g (3.5oz)
Output voltage 24V DC @ 0.5A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset option Yes
Reset button Yes
Rated voltage 100-240V AC @ 50/60Hz
Input current strength 0.3A @ 120V AC, 0.2A @ 240V AC
Inrush current lt;30A peak @ 120V AC, lt;60A peak @ 230V AC
Efficiency 75+%
Output ripple 1% Max.
Switching frequency 50 kHz
Line adjustment ≤ 3%
Load regulation ≤ 5%
Feeding 2 couples Pins 4, 5 (+) and pins 7, 8 (-)
Feeding 4 couples -
Storage conditions temperature -30 to 70°C (-22 to 158°F)
Operating ambient temperature 0 to 40°C (32 to 104°F)
Ambient humidity 35 to 95% non-condensing
AC connector IEC-320 C6
Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Pressure protection 11V date, 60V power
Maximum surge discharge 1500A (8/20 μs) power
Maximum impulse current 36A (10/1000 μs) date
Shunt capacitance lt;5 pF date
Response time lt;1 ns
Certificates CE, FCC, IC, UL
POE-24-24W-G (Hi-Power)
Size 88 x 57 x 33 mm (3.5 x 2.2 x 1.3")
Weight 159g (5.6oz)
Output voltage 24V DC @ 1.0A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset option Yes
Reset button Yes
Rated voltage 100-240V AC @ 50/60Hz
Input current strength 0.6A @ 120V AC, 0.4A @ 240V AC
Inrush current lt;60A peak @ 120V AC, lt;120A peak @ 230V AC
Efficiency 80+%
Output ripple 1% Max.
Switching frequency 65 kHz
Line adjustment ≤ 3%
Load regulation ≤ 5%
Feeding 2 couples Pins 4, 5 (+) and pins 7, 8 (-)
Feeding 4 couples -
Storage conditions temperature -30 to 70°C (-22 to 158°F)
Operating ambient temperature 0 to 40°C (32 to 104°F)
Ambient humidity 35 to 95% non-condensing
AC connector IEC-320 C6
Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Pressure protection 11V date, 60V power
Maximum surge discharge 1500A (8/20 μs) power
Maximum impulse current 36A (10/1000 μs) date
Shunt capacitance lt;5 pF date
Response time lt;1 ns
Certificates CE, FCC, IC, UL

Manufacturer	Ubiquiti
Manufacturer code	UBIQPOE247WGWHEU
Weight	0.184 kg
