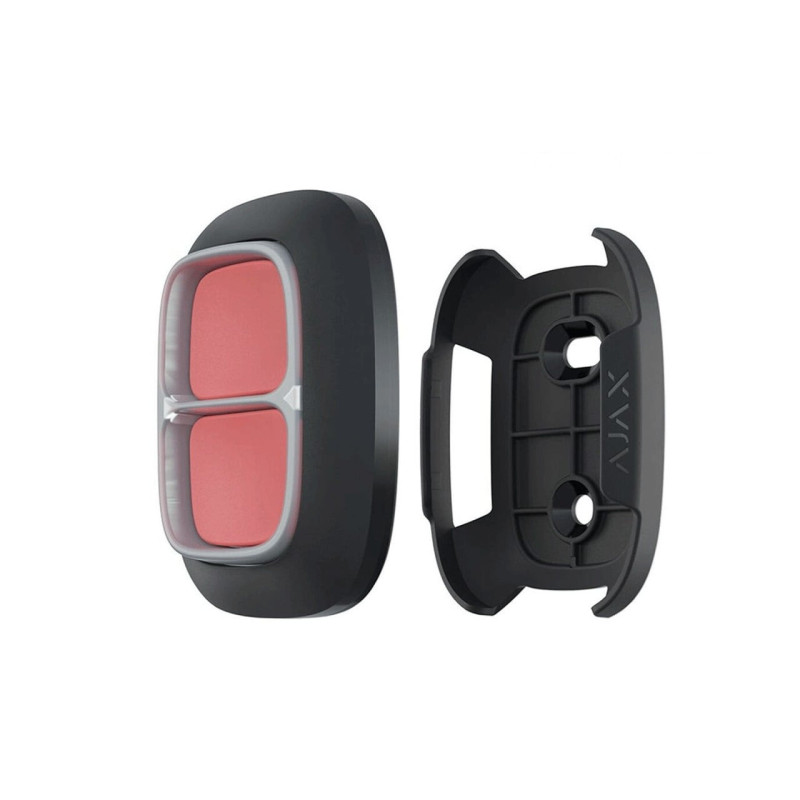

Wireless panic button holder AJAX Holder Button / DoubleButton (Black)
Product reference: 26-4823114015014
  • Type: Wireless panic button holder
  • Model: Holder Button/DoubleButton
  • Color: Black
  • Compatible with: Ajax DoubleButton
  • Battery life: Up to 5 years
  • Operating range: Up to 1300 m in open space
  • Protection class: IP55
Wireless panic button holder AJAX Holder Button / DoubleButton (Black)

Wireless panic button holder AJAX Holder Button / DoubleButton (Black)

Product reference: 26-4823114015014
  • Type: Wireless panic button holder
  • Model: Holder Button/DoubleButton
  • Color: Black
  • Compatible with: Ajax DoubleButton
  • Battery life: Up to 5 years
  • Operating range: Up to 1300 m in open space
  • Protection class: IP55
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
6,74 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Communication
  • Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced sabotage protection., Block encryption featuring a dynamic key., Instant notifications., Remote configuration in the Ajax apps., Learn more
  • Frequency bands 866.0-866.5 MHz 868.0-868.6 MHz 868.7-869.2 MHz 905.0-926.5 MHz * 915.85-926.5 MHz 921.0-922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
  • Maximum effective radiated power (ERP) up to 20 mW, Automatic power control to reduce power consumption and noise interference.
  • Radio signal modulation GFSK
  • Radio signal operating range up to 1,000 ft, Between the panic button and control panel (or range extender) in an open space. Locate DoubleButton in a place with stable Jeweler signal strength (2-3 bars in the Ajax app)., Calculate the radio signal range at the facility
  • Encrypted connection All the data stored and transmitted are protected by block encryption with a dynamic key.
  • Frequency jumps Radio communication uses frequency hopping to prevent interception and jamming., Learn more
  • Main features
  • Number of buttons 2
  • Protection against accidental pressing both buttons pressing protective plastic divider
  • Alarm confirmation with one DoubleButton or several, To raise a confirmed alarm (hold-up event), you need to perform the selected action., How to set up an alarm confirmation for the hold-up device
  • LED lighting to indicate team presentation The LED brightness is adjusted in Ajax apps.
  • Hazard scenario by the DoubleButton pressing, The control mode for automation devices is not supported., How to configure the scenario by alarm
  • Protection against sabotage
  • Protection against counterfeiting device authentication
  • Power supply
  • Battery 1 × CR2032, Pre-installed.
  • Estimated battery life up to 5 years
  • Device operating voltage range 1.8−3.3 V⎓
  • Nominal operating voltage of the device 3 V⎓
  • Quiescent current consumption of the device at nominal voltage 0.54 μA
  • Maximum device current consumption at nominal voltage 34.8 mA
  • Full battery capacity 235mAh
  • Low battery voltage 2.2 V⎓
  • Low battery recovery voltage 2.3 V⎓
  • Final battery voltage 1.8 V⎓, Device is switched off.
  • Final battery capacity 40mAh
  • Manufacturer Panasonic, UL listed.
  • Housing
  • Dimensions 1.85″ × 1.38″ × 0.63″
  • Weight 0.60 oz
  • Operating temperature range from 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (49 °C) is certified according to UL/ULC standards.
  • Humidity up to 75%, Humidity up to 85% is certified according to UL/ULC standards.
  • Protection class IP55

Manufacturer codeAJAXHOLDDUOBUT
ManufacturerAJAX
Weight0 kg
