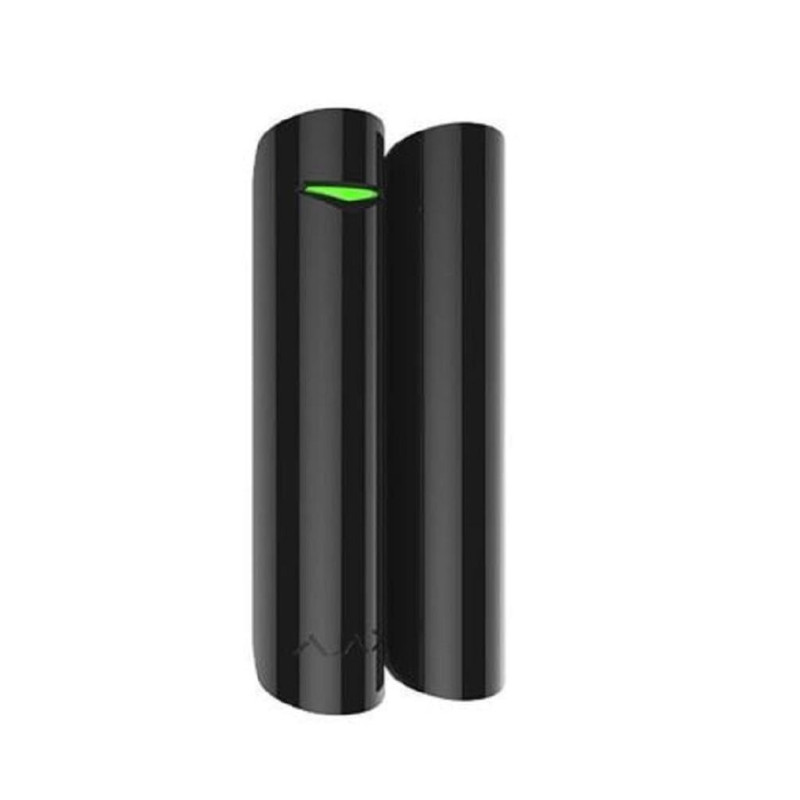

Wireless magnet Ajax DoorProtect 38098.03.BL1 (Black)
Product reference:
26-AJDOORPB
- Type: Wireless magnetic sensor
- Model: Ajax DoorProtect
- Color: Black
- Additional contact: For third-party sensor
- Operating distance: up to 1200 m
- Battery life: up to 7 years
- Product code: 38098.03.BL1
Wireless magnet Ajax DoorProtect 38098.03.BL1 (Black)
Product reference:
26-AJDOORPB
- Type: Wireless magnetic sensor
- Model: Ajax DoorProtect
- Color: Black
- Additional contact: For third-party sensor
- Operating distance: up to 1200 m
- Battery life: up to 7 years
- Product code: 38098.03.BL1
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
Not available
- Communication
- Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced sabotage protection., Block encryption featuring a dynamic key., Instant notifications., Remote configuration in the Ajax apps., Learn more
- Frequency bands 866.0-866.5 MHz 868.0-868.6 MHz 868.7-869.2 MHz 905.0-926.5 MHz * 915.85-926.5 MHz 921.0-922.0 MHz, * Certified according to UL/ULC standards., Depends on the sales region.
- Maximum effective radiated power (ERP) up to 20 mW, Automatic power control to reduce power consumption and noise interference.
- Radio signal modulation GFSK
- Radio signal operating range up to 3,900 ft, Between detector and control panel (or range extender) in an open space., Calculate the radio signal range at the facility
- Encrypted connection All the data stored and transmitted are protected by block encryption with a dynamic key.
- Frequency jumps Radio communication uses frequency hopping to prevent interception and jamming., Learn more
- Detection
- Sensitive element 1 reed switch
- Magnets small and big one come in the set, The small magnet operates at a distance of up to 0.4″ from the detector, and the big magnet — up to 0.8″.
- Reed switch flicker protection The detector ignores vibrations lasting up to 0.15 s.
- Input for connecting an additional detector Wired detector with the normally closed (NC) contact type., How to connect a third-party wired detector
- Sound signal When the system is disarmed, the siren makes a special sound to notify that the opening detectors are triggered., Learn more
- Protection against sabotage
- Tamper signal Notifications on attempts to detach the detector from the surface or remove it from the mounting panel., Learn more
- Protection against counterfeiting device authentication
- Loss of connection detection after 36 s, Depends on the Jeweler or Jeweler/Fibra settings., Learn more
- Power supply
- Battery 1 × CR123A, Pre-installed.
- Type type C
- Estimated battery life up to 7 years
- Nominal operating voltage of the device 3 V⎓
- Quiescent current consumption of the device at nominal voltage 17.5 μA
- Maximum device current consumption at nominal voltage 21.4 mA
- Full battery capacity 1,600mAh
- Low battery voltage 2.5 V⎓
- Low battery recovery voltage 2.7 V⎓
- Final battery voltage 2.1 V⎓, Device is switched off.
- Final battery capacity 300mAh
- Manufacturer For Huider, UL listed.
- Housing
- Detector dimensions 3.54″ × 0.79″ × 0.79″
- Dimensions of the large magnet 3.54″ × 0.79″ × 0.79″
- Small magnet dimensions 2.16″ × 0.43″ × 0.24″
- Detector weight 1.02 oz
- Operating temperature limit from 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
- Humidity up to 75%, Humidity of up to 85% is certified according to UL/ULC standards.
- Protection class IP50
| Weight | 0.029 kg |
