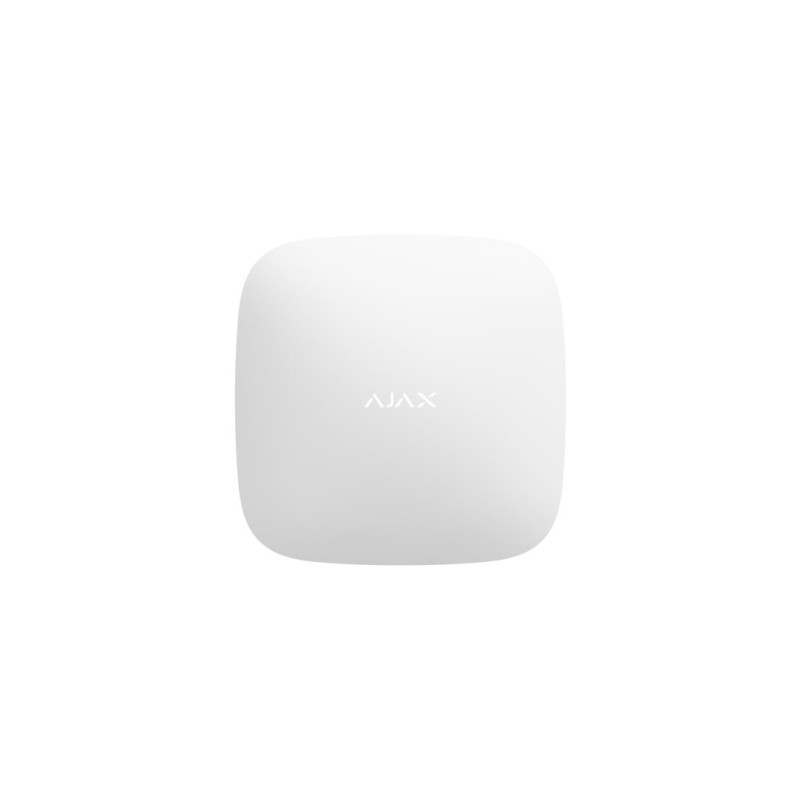

Wireless Ajax repeater REX 38205.37.WH1 (white)

Product reference: 26-4823114015830

You have 3 products in compare list, please remove someone and try again

Add to compare

165,74 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Connection options
Number of ReX Jeweller devices connected to the control panel up to 5, depends on the hub model.
Number of devices connected to ReX Jeweller up to 199, depends on the hub model. Only Hub 2 Plus Jeweler and Hub 2 (4G) Jeweler are under certification by UL.

Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
Frequency bands 866.0-866.5 MHz 868.0-868.6 MHz 868.7-869.2 MHz 905.0-926.5 MHz* 915.85-926.5 MHz 921.0-922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
Maximum effective radiated power (ERP) up to 25 mW, Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio communication range up to 5,900 ft, Between the range extender and a hub in an open space., Calculate radio communication range at the facility
Encrypted connection All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency jumps To prevent radio interference and jamming., Learn more

Protection against sabotage
Tamper signal Notifications on attempts to detach the device from the surface or remove it from the mounting panel., Learn more
Protection against counterfeiting device authentication
Loss of connection detection after 36 s, Detection time depends on the Jeweler or Jeweler/Fibra settings., Learn more

Power supply
Home 110-240 V, 50/60 Hz, Up to 6 W of mains power consumption.
Backups built-in backup battery Rechargeable Li-ion Polymer Battery XK 953562T 3.7 V⎓, 2 Ah, Calculated battery life:, Up to 24 hours of backup battery life when Ethernet is disabled., Up to 35 hours of backup battery life., Up to 4 hours of maximum time to recharge a backup battery of maximum capacity to 80% of its rated capacity., * From the backup battery after the loss of the main power supply., The range extender manufactured after October 7, 2022, has a 3-pin battery. If the range extender was manufactured earlier, the battery can be a 2-pin or 3-pin one. To find out the battery type, contact Ajax Technical Support or check it manually., Learn more, Manufacturer Dongguan Lean Power, UL listed.
Type type A
Quiescent current consumption of the device at nominal voltage 11.4 mA
Maximum device current consumption at nominal voltage 14 mA
Low battery voltage 3.7 V⎓
Low battery recovery voltage 4.1 V⎓
Final battery voltage 3.6 V⎓, Device is switched off.
Minimum backup battery energy in a charged state 100%
Alternative 12 V⎓, Connected via an alternative power supply unit * 12V PSU for Hub/Hub Plus/ReX which is sold separately ., Learn more, * Not evaluated by UL.

Housing
Dimensions 6.42″ × 6.42″ × 1.42″
Weight 11.64 oz
Operating temperature limit from 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
Humidity up to 75%
Protection class IP20
