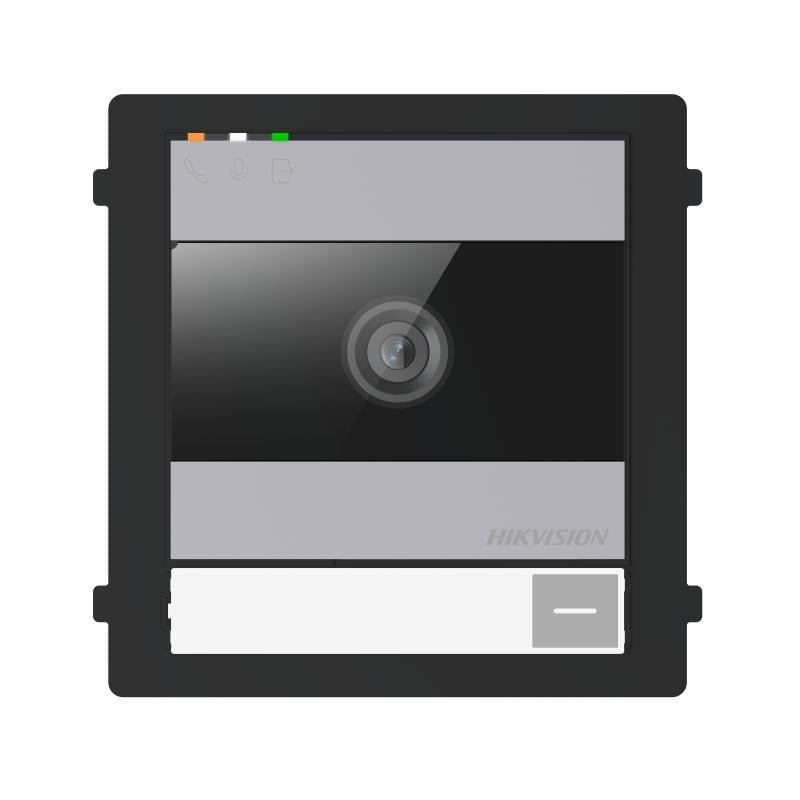

Hikvision DS-KD8005-IME1
Product reference: 26-6942640545012
  • Main unit of the modular door station with 5 MP resolution camera
  • Flexible selection of 0/1/2 call buttons
  • Standard power supply via PoE
  • Protection class: IP65, IK08
  • Convenient remote configuration via web browser
  • Two-lock control
  • High-quality aluminum housing
Hikvision DS-KD8005-IME1

Hikvision DS-KD8005-IME1

Product reference: 26-6942640545012
  • Main unit of the modular door station with 5 MP resolution camera
  • Flexible selection of 0/1/2 call buttons
  • Standard power supply via PoE
  • Protection class: IP65, IK08
  • Convenient remote configuration via web browser
  • Two-lock control
  • High-quality aluminum housing
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
19632 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Audio settings
  • Audio Performance 30cm 80dB
  • Audio compression bit rate Max. 64 Kps
  • Audio compression format G711U、G711A、G722.1、G726、AAC_LC、AAC_LD、OPUS
  • Audio input 1 built-in omnidirectional microphone
  • Audio output 1 built-in speaker
  • Sound quality Noise suppression and echo cancellation
  • Volume adjustment Adjustable
  • Capacity
  • Associated indoor station capacities 1000
  • Sub-door station capacity 99
  • User capacity 2000
  • Interfaces
  • Alarm input 4 (2 exit buttons and 2 door contacts by default)
  • Door contact input 2
  • Exit button 2 (2 for lock control)
  • Shutter control 2 relays, Max. 30 VDC, 2 A
  • Network interface 1 RJ-45, 10/100 Mbps self-adaptive
  • RS-485 1 (1 for Hikvision's sub module communication)
  • TAMPER 1
  • General
  • Application environment Outdoor
  • Button 2
  • Indicator 3
  • Installation Surface mounting, flush mounting
  • Energy consumption ≤ 5W
  • Power source 12 VDC, 1.5 A, IEEE802.3af, Standard PoE
  • IP protection level IP65, IK08
  • Weight Without package: 260 g (0.57 lb)
  • Operating temperature -40 ~+60
  • Internet settings
  • Internet protocols TCP/IP, RTSP, RTP, SIP, Onvif
  • System parameters
  • Operating system Linux
  • Processor Embedded high-performance processor
  • RAM 256MB
  • ROM 4GB
  • Image settings
  • FOV Horizontal: 134°, Vertical: 82°
  • Lens 5 MP camera
  • Resolution 3200* 1800
  • Additional lighting Low illumination, IR supplementary lights
  • Image compression format H.264, H.265, MJPEG
  • Wide dynamic range (WDR) Support, 100dB

Weight0.287 kg
