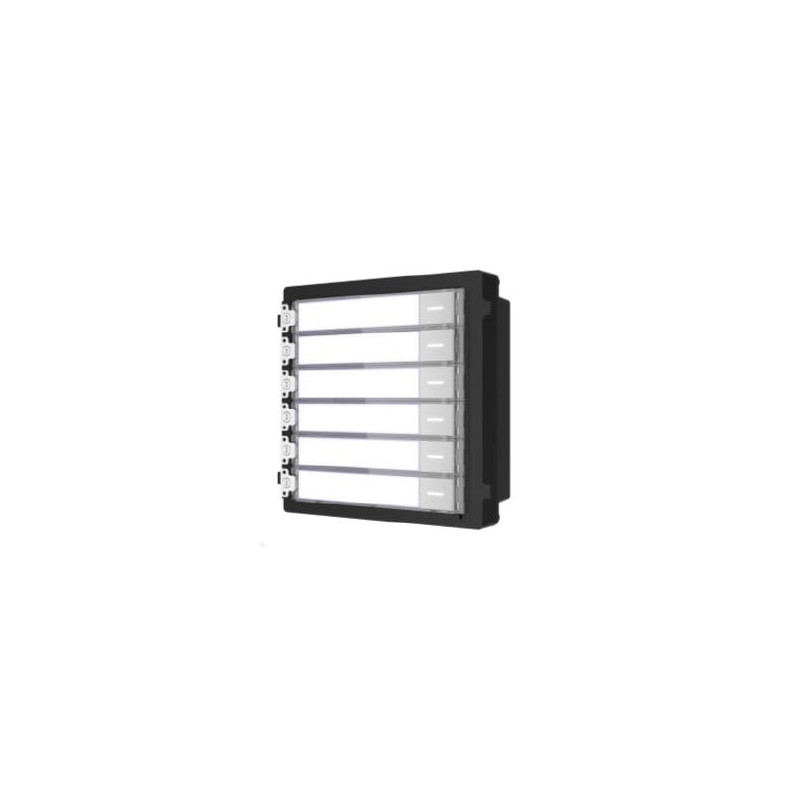

Button module Hikvision DS-KD-KK
Product reference: 26-6954273689698
  • Connects with a resident with the click of a button
  • Backlight compensation
  • IP65
  • For DS-KD-8003-IME1 / DS-KD7003EY-IME2
Button module Hikvision DS-KD-KK

Button module Hikvision DS-KD-KK

Product reference: 26-6954273689698
  • Connects with a resident with the click of a button
  • Backlight compensation
  • IP65
  • For DS-KD-8003-IME1 / DS-KD7003EY-IME2
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
8640 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
System parameters
Mode of operation Physical Button
ProcessorEmbedded MCU Processor
Device interfaces
Debug1
Connecting modules2(1 Input, 1 Output)
Main features
Power source Powered by DS-KD8003-IME1
DIP connection8
Protection level IP65
InstallationFlush Mounting, Surface Mounting
Energy consumption≤2W
Buttons6
Relative humidity10% to 95%
Operating temperature-40° C to +60° C (-40° F to 140° F)
Dimensions (L × W × H)98.5mm×100mm×33.7mm(3.87"×3.95"×1.33")

Weight0.19 kg
