UBIQUITI UniFi jungiklis Flex Mini 2.5G

High-Speed Network SwitchingThe Ubiquiti Flex Mini 2.5G (USW-Flex-2.5G-5) is a compact and efficient 5-port switch that brings high-speed networking capabilities to any environment. With four 2.5 GbE ports, this switch ensures faster data transmission, making it an excellent choice for modern networking applications that require quick and reliable connectivity. The 2.5 GbE PoE input port facilitates effortless power sourcing via Power over Ethernet, eliminating the need for additional power adapters or outlets. For added versatility, the switch can also be powered using the included 5V, 1A USB-C adapter, making it easy to integrate into various environments. This flexibility in power options ensures that the Flex Mini can be placed in various locations, making it a versatile addition to your network.

Optimized PerformanceDesigned for seamless performance, the Ubiquiti Flex Mini offers a total non-blocking throughput of 12.5 Gbps and a switching capacity of 25 Gbps. These specifications ensure that data can flow freely without bottlenecks, even under heavy load. The forwarding rate of 18.6 million packets per second (Mpps) allows the switch to handle high traffic volumes efficiently, making it suitable for demanding applications such as video streaming, online gaming, and large file transfers. Additionally, its support for Layer 2 switching features enhances network performance and stability, including Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), port isolation, and storm control, which help manage and optimize network traffic effectively.

Easy ManagementThe Flex Mini prioritizes user convenience, offering an Ethernet In-Band management interface that simplifies both setup and configuration tasks. This functionality allows users to manage the switch directly through their existing network without the need for additional software or equipment. The application requirements specify compatibility with UniFi Network version 8.4.62 and later, ensuring that users can take advantage of the latest features and enhancements. Whether used in a home office, a small business, or an enterprise setting, the Ubiquiti Flex Mini 2.5G provides a reliable and powerful networking solution tailored to meet the demands of today's digital landscape.

Overview

Dimensions: 117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8')

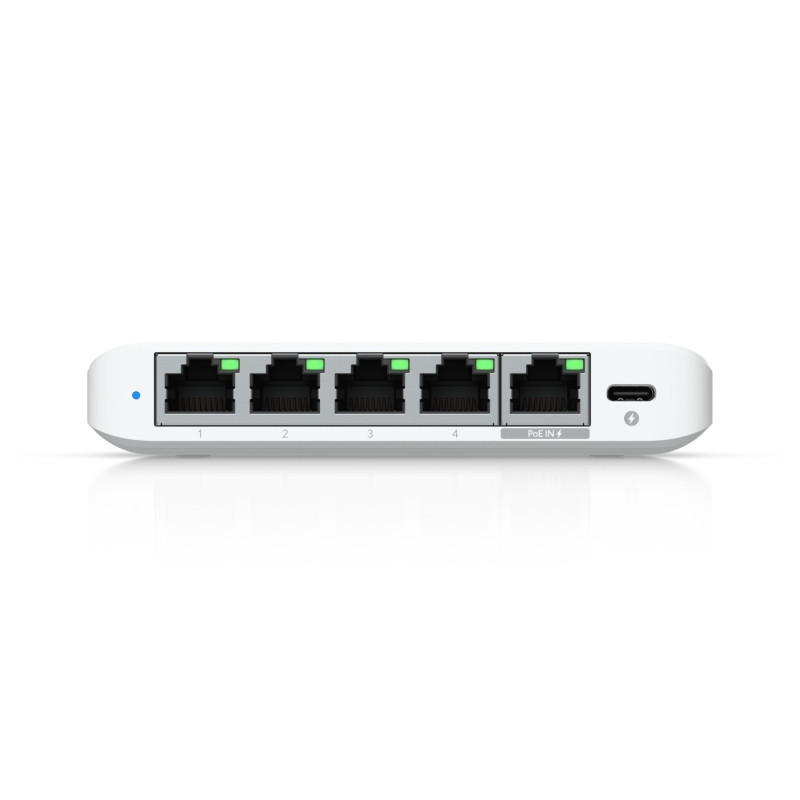

Port Layout: 2.5 GbE RJ45 x5

Form Factor: Compact desktop

Performance

Switching Capacity: 24 Gbps

Total Non-Blocking Throughput: 12.5 Gbps

Forwarding Rate: 19 Mpps

Supported VLANs: 256

MAC Address Table Size: 4,000

Layer 2 Features

STP RSTP: Yes

Egress Rate Limit: Yes

Flow Control: Yes

Storm Control: Yes

Multicast Broadcast Rate Limiting: Yes

Port Isolation: Yes

Port Mirroring: Yes

Jumbo Frames: Yes

Loop Protection: Yes

Hardware

Max. Power Consumption: 5W (AC/DC input) 6.4W (PoE input)

Power Method: (1) USB Type-C, 5V DC, 1A (1) PoE

Power Input Method: USB Input PoE

Power Supply: AC/DC, external, 5W

Supported Voltage Range: 4.8—5.2V DC/USB 44V—57V PoE

Management: Ethernet

Weight: 206 g (7.3 oz)

Enclosure Material: Polycarbonate

Ambient Operating Temperature: -20 to 45° C (-4 to 113° F)

Ambient Operating Humidity: 10 to 90% noncondensing

Certifications: CE, FCC, IC
