UBIQUITI UniFi jungiklis Flex 2.5G

Advanced Switching FeaturesThe Ubiquiti UniFi Switch Flex 2.5G (USW-Flex-2.5G-8) is engineered to provide robust and high-speed networking solutions for both home and business environments. Equipped with eight 2.5 Gigabit Ethernet (GbE) RJ45 ports, it ensures rapid data transfer rates, accommodating bandwidth-intensive applications such as high-definition video streaming, online gaming, and large file transfers. Additionally, the switch features a versatile 10 Gigabit Ethernet RJ45/SFP+ combination uplink port, offering flexible connectivity options to integrate seamlessly with existing network infrastructures.

Beyond its impressive hardware capabilities, the USW-Flex-2.5G-8 offers advanced Layer 2 switching features to enhance network performance and security. These include support for Spanning Tree Protocol (STP/RSTP) with configurable priorities and port-level disable options, storm control, multicast and broadcast rate limiting, flow control, jumbo frames, egress rate limiting, proprietary loop protection, port isolation, and port mirroring. These features empower network administrators to optimize traffic management, prevent network loops, and maintain a robust and secure networking environment, catering to the demands of modern network infrastructures.

Flexible Power OptionsThe USW-Flex-2.5G-8 offers multiple power input methods to suit various deployment scenarios. It can be powered via a 5V, 3A USB-C adapter, providing a straightforward and accessible power solution. Alternatively, the switch supports Power over Ethernet Plus (PoE+), allowing it to receive power through the 10 GbE RJ45 uplink port when connected to a compatible PoE+ source. This flexibility simplifies installation and reduces cable clutter, making it an ideal choice for diverse networking setups.

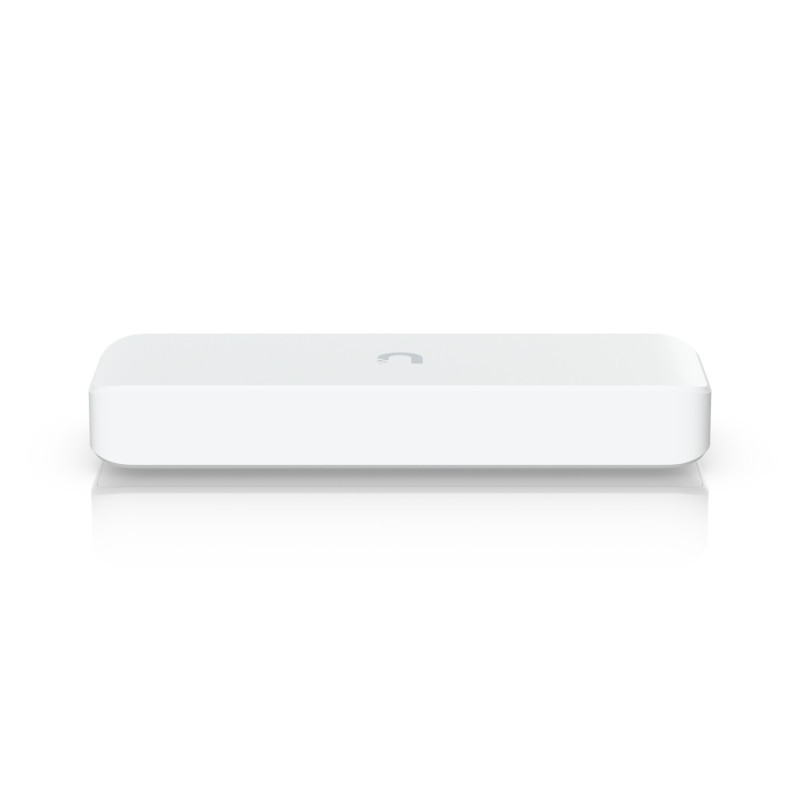

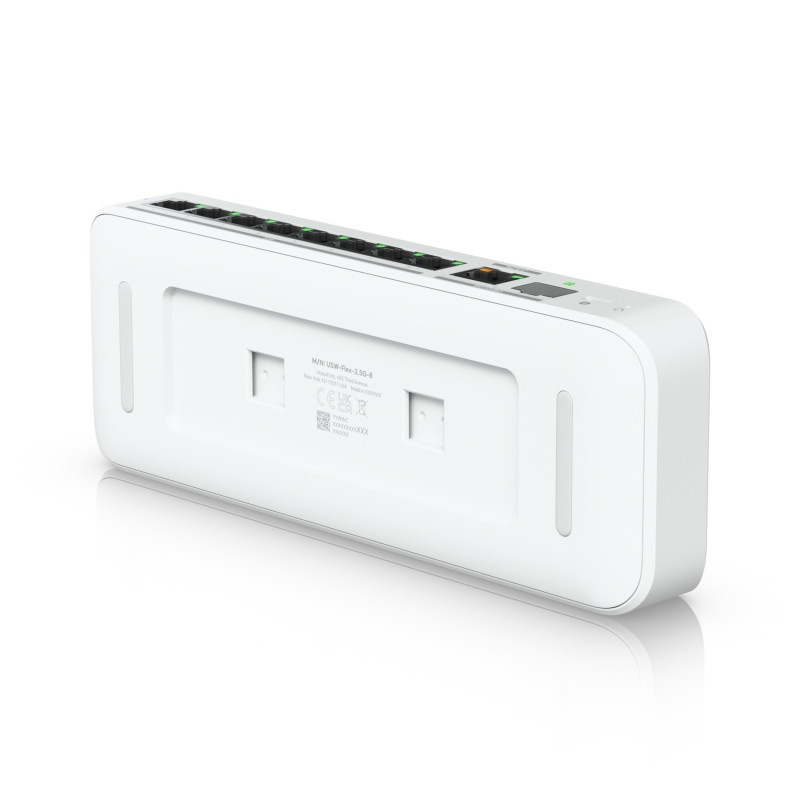

The USW-Flex-2.5G-8 boasts a sleek and compact form factor, measuring 212.9 x 76 x 33.5 mm and weighing 420 grams. Its polycarbonate enclosure ensures durability while maintaining a lightweight profile. The switch is designed for versatile mounting options, including wall mounting (kit included) and DIN rail mounting (sold separately), allowing for flexible placement in various environments. Its compact size and flexible installation options make it suitable for both space-constrained and open areas, ensuring optimal network deployment.

Overview

Dimensions: 212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3')

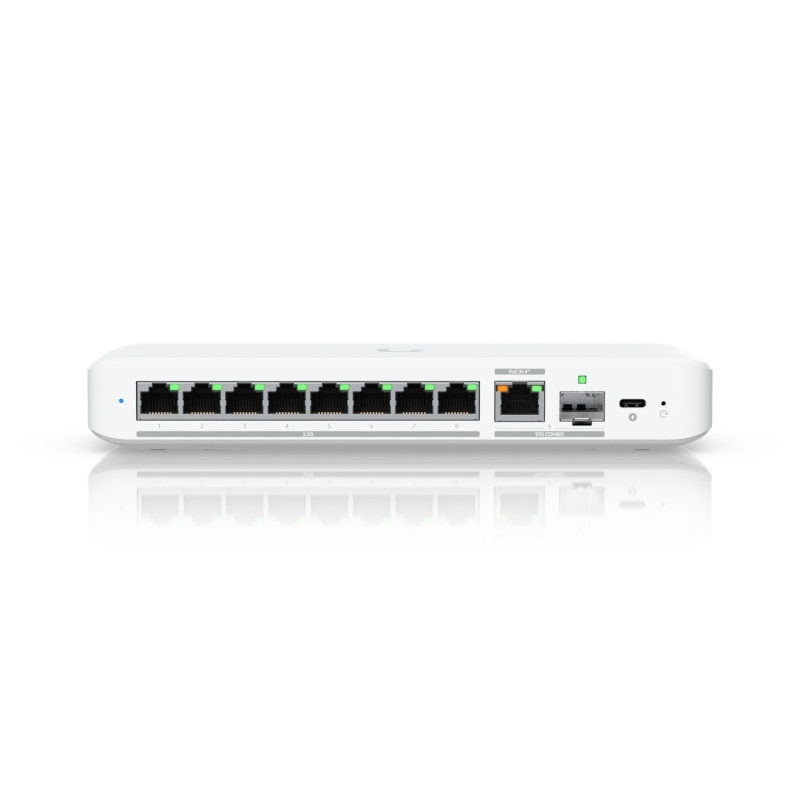

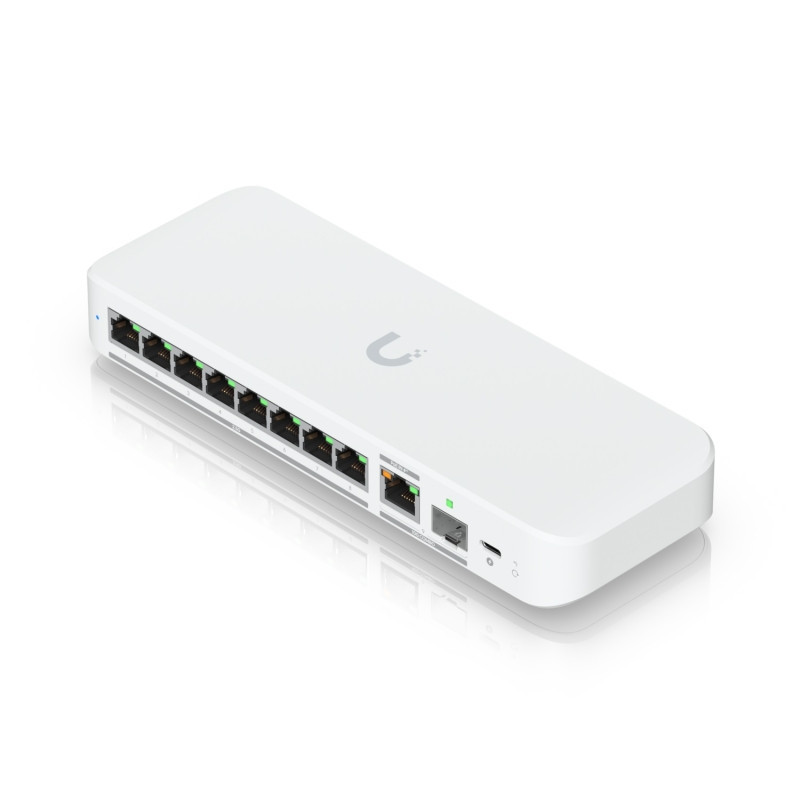

Port Layout:

2.5 GbE RJ45: 8 (2.5G/1G/100M/10M)

10 GbE RJ45: 1 (10G/5G/2.5G/1G/100M)

10G SFP+: 1

Form Factor: Compact Desktop, wall, DIN, magnetic

Performance

Switching Capacity: 60 Gbps

Total Non-Blocking Throughput: 30 Gbps

Forwarding Rate: 45 Mpps

Supported VLANs: 256

MAC Address Table Size: 4,000

Layer 2 Features

STP RSTP: Yes

Egress Rate Limit: Yes

Flow Control: Yes

Storm Control: Yes

Multicast Broadcast Rate Limiting: Yes

Port Isolation: Yes

Port Mirroring: Yes

Jumbo Frames: Yes

Loop Protection: Yes

Hardware

Max. Power Consumption:

14W with PoE input

14W with AC adapter input

Power Method:

(1) USB Type-C, 5V DC, 3A

(1) PoE+

Power Input Method:

USB Input

PoE

Power Supply: AC/DC, external, 15W

Supported Voltage Range:

4.8—5.2V DC/USB

44V—57V PoE

Management: Ethernet

Weight: 395 g (0.87 lb)

Enclosure Material: Polycarbonate

Mount Material: Polycarbonate

Ambient Operating Temperature: -20 to 45° C (-4 to 113° F)

Ambient Operating Humidity: 10 to 90% noncondensing

NDAA Compliant: Yes

Certifications: CE, FCC, IC

Software

Application Requirements:

UniFi Network: Version 9.0.114 and later
