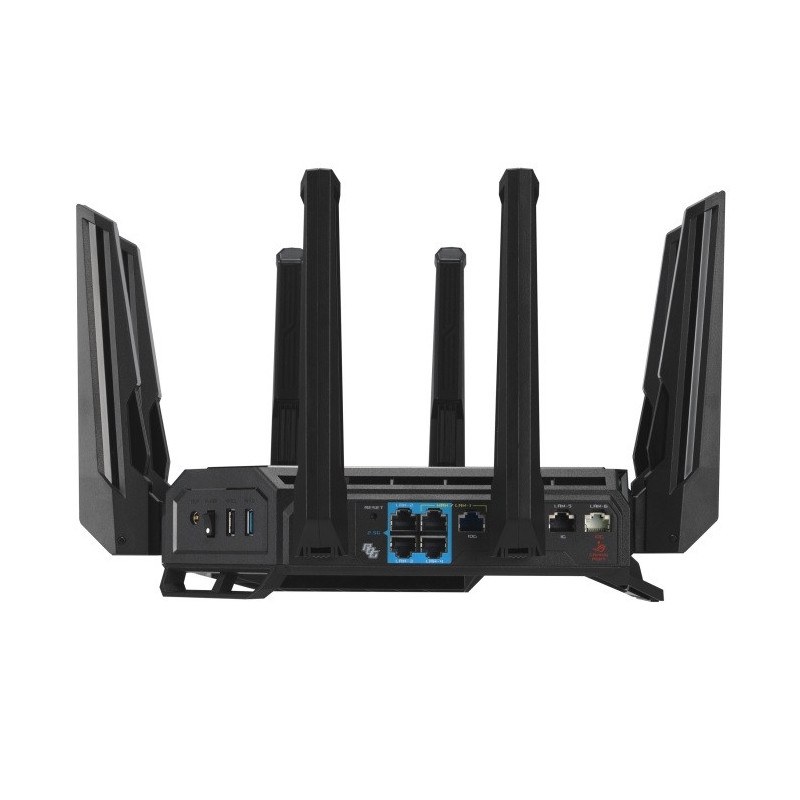

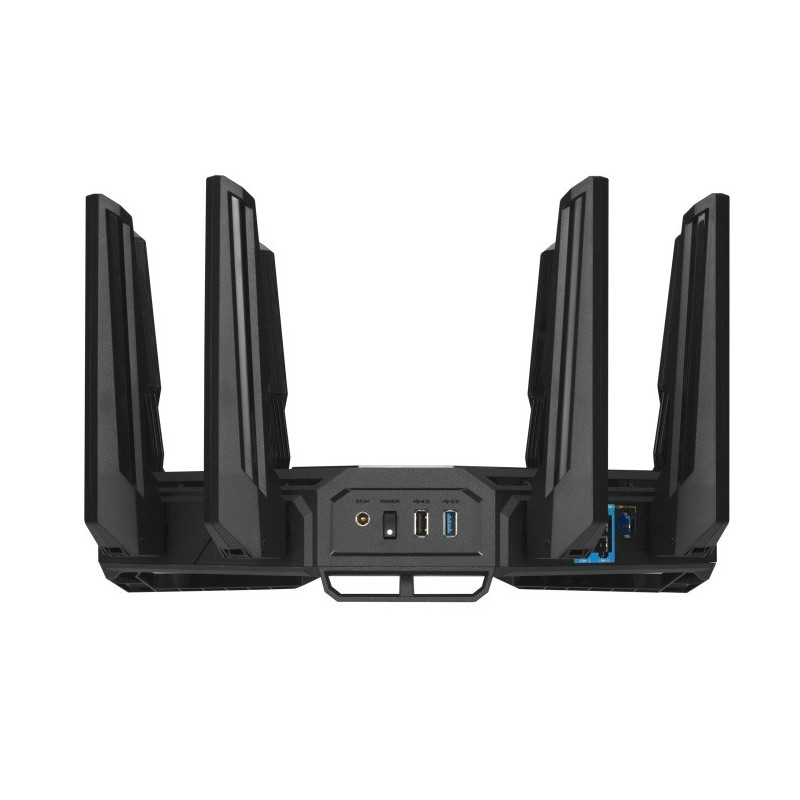

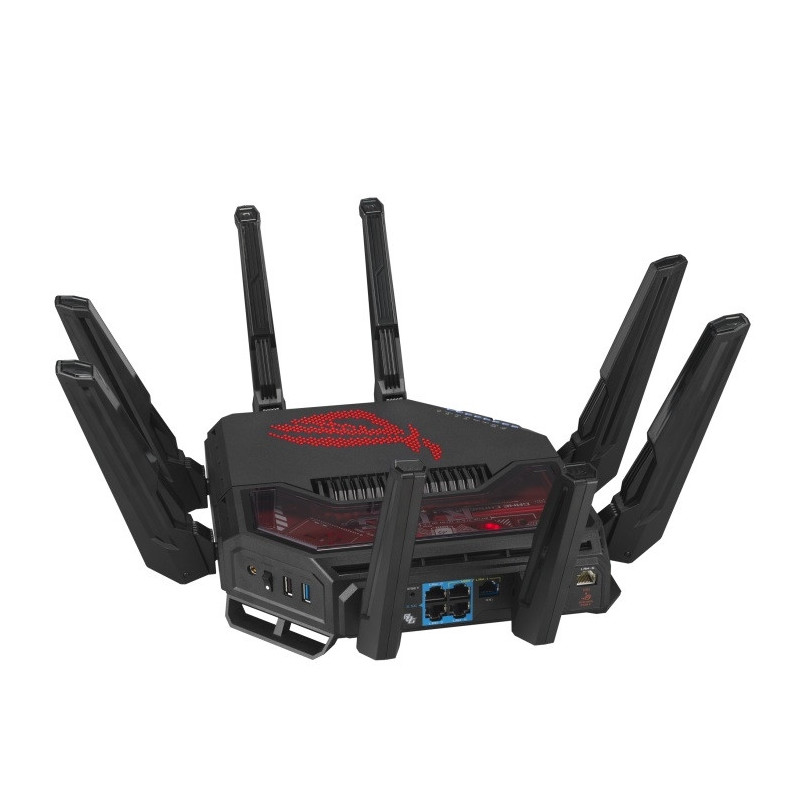

ASUS BE19000 keturių dažnių WiFi 7 (802.11be) žaidimų maršrutizatorius ROG Rapture GT-BE19000

The ROG Rapture series keeps pushing the boundaries of what is possible for gaming and networking. The new ROG Rapture GT-BE19000 is a tri-band 12-stream WiFi 7 gaming router tailored for next-gen gaming and computing. With speeds of up to 1.9 Gbps, powerful 31G wired capacity and the exclusive ROG Gaming Network, it offers new ways of accelerating your gameplay.

Model Name:GT-BE19000

Network Standard:WiFi 6 (802.11ax)

WiFi 7 (802.11be)

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IPv4

IPv6

Product Segment:BE19000 ultimate BE performance: 1376+5764+11529 Mbps

WiFi Data Rate:2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps

5GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp

6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp

Antennas:External antenna x 8

Transmit / Receive:2.4GHz 4x4

5GHz 4x4

6GHz 4x4

Processor:2.6GHz quad-core processor

Memory:256 MB Flash and 2 GB RAM

Boosts Speed:OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

4096-QAM high data rate

20/40/80/160/320 MHz bandwidth

Operating Frequency:2.4 GHz / 5 GHz / 6 GHz

2.4 GHz

5 GHz

6 GHz

Operating Mode:Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

I/O Ports:1 x 10Gbps for WAN/LAN

1 x 2.5Gbps for WAN/LAN

1 x 10Gbps for LAN

3 x 2.5Gbps for LAN

1 x RJ45 10/100/1000Mbps for LAN

1 x USB 3.2 Gen1

1 x USB 2.0

Buttons:WPS Button, Reset Button, Power Switch, LED control Button

LED Indicators:WAN(Internet) x1

10G LAN x1

1G/2.5G LAN x1

WPS x1

6GHz x1

5GHz x1

2.4GHz x1

Power x1

Power Supply:AC Input: 110V~240V(50~60Hz)

DC Output: 12 V with max. 5 A current

Product Weight (g):2000 g

Product Dimensions:350.41 x 350.41 x 220.6 mm

AiMesh:AiMesh

• Primary AiMesh Router

• AiMesh Node

Game:Game Boost / Acceleration

Game Radar

WTFast

Mobile Game Mode

Gear Accelerator

ROG_First

OpenNAT (Game Profile)

Gaming Port

Gaming Network

Parental Control:'Allow you to block access to unwanted websites and apps.'

Web Apps Filters

Time Scheduling

Reward

Parental Control Customized Internet Schedule:

• Maximum Parental Control profile : 64

• Maximum Parental Control content filter rule : 64

Guest Network:'The Guest Network provides Internet connection for guests but restricts access to your local network.'

'You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings.'

Support Guest Network Pro (Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5)

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

Security:AiProtection

VPN

WiFi Encryption:

WPA/WPA2/WPA3 Personal

WPA/WPA2/WPA3 Enterprise

Open System OWE

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall:

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtection:AiProtection Pro

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Infected Device Prevention and Blocking

VPN:Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Traffic Control:Adaptive QoS:

• Bandwidth Monitor

• Bandwidth Limiter (Maximum Bandwidth Limiter Rule : 32)

Traditional QoS

Traffic Monitor:

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly

• Website History

WAN:Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP

Internet Connection Type : Internet Connection Type :

Internet Connection Type : • PPPoE

Internet Connection Type : • PPTP

Internet Connection Type : • L2TP

Internet Connection Type : • Automatic IP

Internet Connection Type : • Static IP

Internet Connection Type : • IPSec

Dual WAN

3G / 4G LTE Dongle

4G / 5G Auto Mobile Tethering

Port Forwarding (Maximum Port Forwarding Rule : 64)

Port Triggering (Maximum Port Triggering Rule : 32)

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN:DHCP Server

IPTV

LAN Link Aggregation

Manually Assign IP Address (Maximum Manually Assign IP Address Rule : 128)

Wake on LAN (WOL)

VLAN

Wireless:MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter (Maximum MAC Filters : 64)

Wireless Scheduler

Wi-Fi Radar

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

USB application:4G / 5G Auto Mobile Tethering

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

User Interface:WEB: ASUSWRT

APP: ASUS Router APP

Operating system : ASUSWRT

Administration:Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update

Package Content:GT-BE19000 tri-band gaming router

RJ-45 cable

Power adapter

Quick Start Guide
