ASUS BE6800 dviejų dažnių WiFi 7 (802.11be) žaidimų maršrutizatorius

Dominate your network with blazing performance. For those who demand the absolute best, today and tomorrow, the ASUS RT-BE86U is powered by next-level WiFi 7, delivering lightning-fast dual-band speeds of up to 6800 Mbps for your connected living. The RT-BE86U boasts a monster 20G combined network capacity, unlocking cutting-edge 10G networking with a 10 Gbps WAN/LAN port and up to four 2.5 Gbps LAN ports. Meanwhile. the new ASUSWRT 5.0 ensures a worry-free network experience from end-to-end and 24/7.

Model:RT-BE86U

Network Standards:IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

WiFi 7 (802.11be)

IPv4

IPv6

Product Segment:BE6800 ultimate BE performance : 1032+5764 Mbps

WiFi Data Rate:WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps

WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

Antennas:External antenna x 3； Internal antenna x 1

Transmit / Receive:2.4GHz 3x3

5GHz 4x4

Processor:2.6GHz quad-core processor

Memory:256 MB Flash and 1 GB RAM

Boosts Speed:OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

4096-QAM high data rate

20/40/80/160 MHz bandwidth

Operating Frequency:2.4 GHz

5 GHz

Operating Modes:Wireless Router Mode

AiMesh Node Mode

Access Point Mode

Media Bridge Mode

Repeater Mode

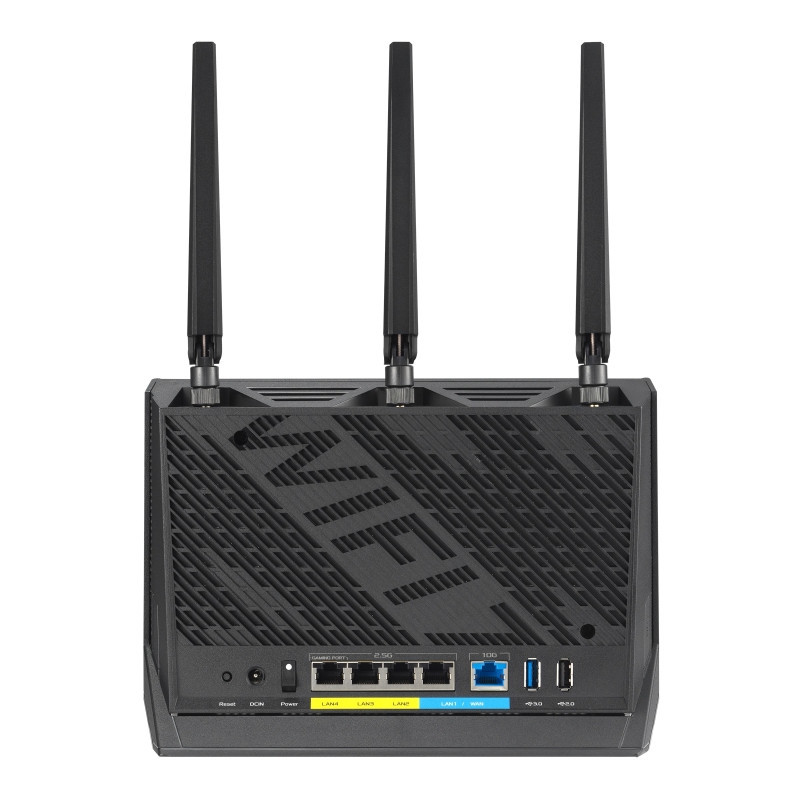

I/O Ports:1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1

Buttons:WPS Button, Reset Button, Power Switch, LED on/off Button

LED Indicators:WAN x1

10G Port x1

LAN x4

USB x1

2.4GHz x1

5GHz x1

Power x1

Power SupplyAC Input : 110V~240V(50~60Hz)

DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current

Product Weight (g):854 g

Product Dimensions:235*90*316 mm

AiMeshAiMesh

• Primary AiMesh Router

• AiMesh Node

GameMobile Game Mode

Gear Accelerator

OpenNAT (Game Profile)

Gaming Port

Parental Control'Allow you to block access to unwanted websites and apps.'

Web Apps Filters

Time Scheduling

Safe Browsing

Customized Internet Schedule

• Maximum Parental Control Profile : 64

• Maximum Parental Control Content Cilter Rule : 64

Guest Network'You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings.'

Support Guest Network Pro

• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5

Guest Network Connection Time Limit

Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

SecurityAiProtection

VPN

WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System OWE

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtectionAiProtection Pro

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Infected Device Prevention and Blocking

VPNInstant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Support Surfshark

Traffic ControlAdaptive QoS

• Bandwidth Monitor

• Bandwidth Limiter

-- Maximum Bandwidth Limiter Rule : 32

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly

• Website History

WANInternet Connection Type :

• PPPoE

• PPTP

• L2TP

• Automatic IP

• Static IP

• IPSec

Dual WAN

WAN Aggregation

3G / 4G LTE dongle

Port forwarding

• Maximum Port Forwarding Rule : 64

Port triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough :

• PPTP Pass-Through

• L2TP Pass-Through

• IPSec Pass-Through

• RTSP Pass-Through

• H.323 Pass-Through

• SIP Pass-Through

• PPPoE Relay

LANDHCP Server

IGMP Snooping

IPTV

LAN Link Aggregation

Manually Assign IP Address

• Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)

WirelessMU-MIMO

UTF-8 SSID

WiFi MAC Address Filter

• Maximum MAC Filters : 64

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

USB applicationFile System :

• HFS+

• NTFS

• vFAT

• ext2

• ext3

• ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

User InterfaceWEB: ASUSWRT

APP: ASUS Router APP

AdministrationConfiguration Backup and Restore

Diagnosis tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update

Package Contents:RT-BE86U WiFi router

RJ-45 cable

Power adapter

Quick Start Guide

Warranty card
