ASUS BE6800 Dual Band WiFi 7 (802.11be) Gaming Router

Dominate your network with blazing performance. For those who demand the absolute best, today and tomorrow, the ASUS RT-BE86U is powered by next-level WiFi 7, delivering lightning-fast dual-band speeds of up to 6800 Mbps for your connected living. The RT-BE86U boasts a monster 20G combined network capacity, unlocking cutting-edge 10G networking with a 10 Gbps WAN/LAN port and up to four 2.5 Gbps LAN ports. Meanwhile. the new ASUSWRT 5.0 ensures a worry-free network experience from end-to-end and 24/7.

Model:RT-BE86U

Network Standards:IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 7 (802.11be) IPv4 IPv6

Product Segment:BE6800 ultimate BE performance: 1032+5764 Mbps

WiFi Data Rate:WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

Antennas:External antenna x 3； Internal antenna x 1

Transmit / Receive:2.4GHz 3x3 5GHz 4x4

Processor:2.6GHz quad-core processor

Memory:256 MB Flash and 1 GB RAM

Boosts Speed:OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160 MHz bandwidth

Operating Frequency:2.4GHz 5GHz

Operating Modes:Wireless Router Mode AiMesh Node Mode Access Point Mode Media Bridge Mode Repeater Mode

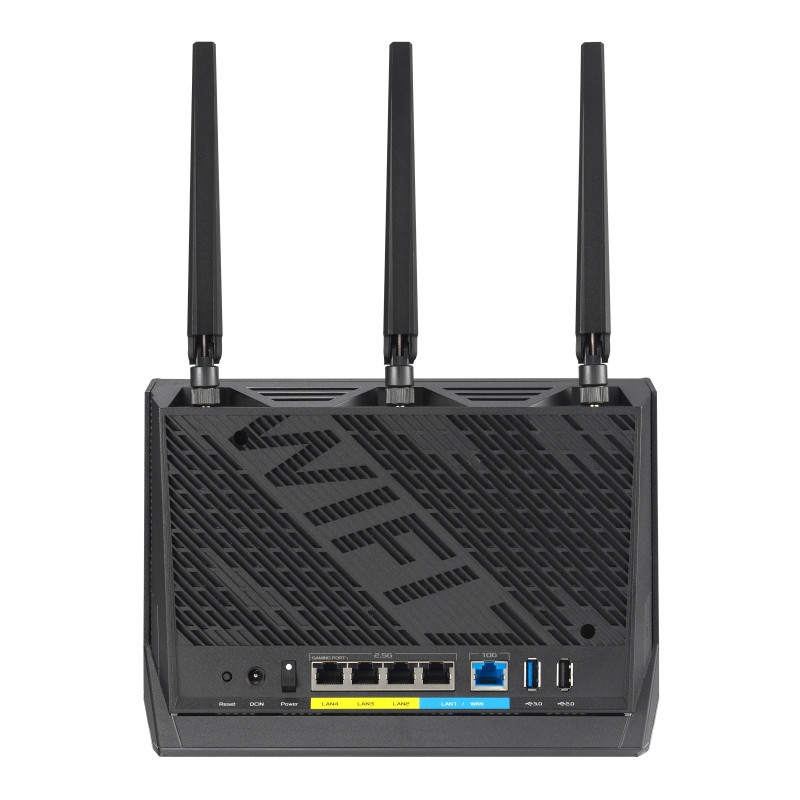

I/O Ports:1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1

Buttons:WPS Button, Reset Button, Power Switch, LED on/off Button

LED Indicators:WAN x1 10G Port x1 LAN x4 USB x1 2.4GHz x1 5GHz x1 Power x1

Power SupplyAC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current

Product Weight (g):854 grams

Product Dimensions:235*90*316mm

AiMeshAiMesh • Primary AiMesh Router • AiMesh Node

GameMobile Game Mode Gear Accelerator OpenNAT (Game Profile) Gaming Port

Parental Control'Allow you to block access to unwanted websites and apps.' Web Apps Filters Time Scheduling Safe Browsing Customized Internet Schedule • Maximum Parental Control Profile : 64 • Maximum Parental Control Content Cilter Rule : 64

Guest Network'You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create a comprehensive network environment with customized settings.' Support Guest Network Pro • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5 Guest Network Connection Time Limit Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

SecurityAiProtection VPN WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System OWE WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64

AiProtectionAiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking

VPNInstant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark

Traffic ControlAdaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History

WANInternet Connection Type : • PPPoE • PPTP • L2TP • Automatic IP • Static IP • IPSec Dual WAN WAN Aggregation 3G / 4G LTE dongle Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : • PPTP Pass-Through • L2TP Pass-Through • IPSec Pass-Through • RTSP Pass-Through • H.323 Pass-Through • SIP Pass-Through • PPPoE Relay

LANDHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 128 Wake on LAN (WOL)

WirelessMU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming

USB applicationFile System : • HFS+ • NTFS • vFAT • ext2 • ext3 • ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges

User InterfaceWEB: ASUSWRT APP: ASUS Router APP

AdministrationConfiguration Backup and Restore Diagnosis tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update

Package Contents:RT-BE86U WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card
